RL 420 automatic weighing snacks packaging machine/machine packaging
Product Show

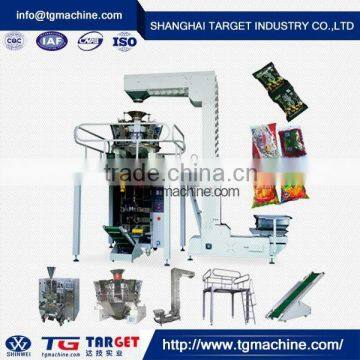

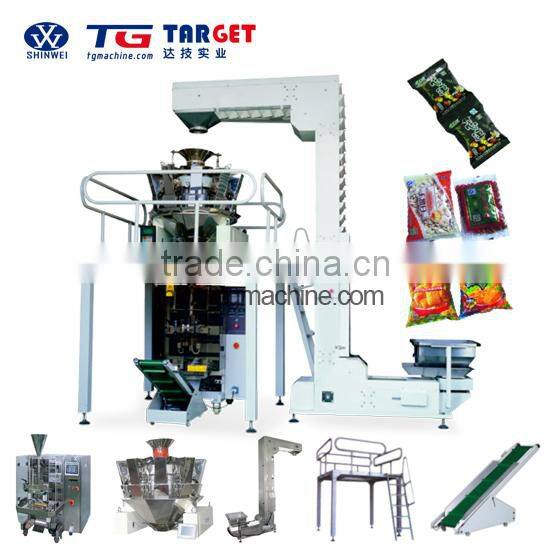

1. Product Pictures of automatic weighing packaging machine
We have more food packing machine for you choice
please click here
2. Product Description of automatic weighing packaging machine
Item No. |
KL-420A (for example) |
Bag length |
80-300mm |
Bag width |
80-200mm |
Film width |
Max.420mm |
Packing speed |
Max 20-55bag/min (depend on the bag length |
Outside size |
(L)4300×(W)4200×(H)3650mm |
Power |
220V, 2.2KW |
Weight |
650kg |
Application |
Suitable for packing fragile bulk material with irregular shapes and requiring high measuring accuracy, such as :puffed food, shrimp strip, potato chips, banana chips, apple flakes, crispy rice, biscuit, peanut, cooked seeds, sweets etc. |
|
Features:
|
The system can finish automatically all processes ,i.e Feeding, measuring, filling and bag making, printing date,product output. The machine structure is compact, rational, stable performance, easy operation and maintenance.The complete set of the machine is featured with fair price, stable performance. The machine adopts independent mixing system, is able to mix uniformly the material. Save labor, less waste, easy operate and maintence. |
Complete set |
KL-420 main machine Ten heads combined scale Z type material conveyor (including vibrate hopper) Vibrating Feeding machine Supporting platform Finished product conveyor |
model |
RL420 |
RL 520 |
Packing speed |
25-80bags/min |
25-70bags/min |
Pouch making size |
Bag making width:80-200mm Bag making length:80-300mm |
Bag making width:100-250mm Bag making length:100-350mm |
Filling range |
10-1200g |
50-2000g |
Packing material |
Wax.paper,cellophane, aluminium film |
Wax.paper,cellophane ,aluminium film |
Packing film width |
Max.200mm |
Max.250mm |
power |
10kw |
12kw |
Gross weight |
2500kg |
2870kg |
Introduction
1.The machine incluing Z model conveyor ,weigher ,main vertical packaging machine ,
platform ,and finish product conveyor ,It can automatically do
bag-forming, weighing ,dosing, gas-flushing, coding,cutting.
2.Be applicable for packing gain product,for instance,puff snack food ,potato chips ,
crispy rice ,jelly ,candy ,apple chips ,dumpling ,smal cookies ,dry fruit ,melon seeds ,roasted seeds and nut ,medical material ,deep-frozen food ,etc.
3.Working states&operation messages shows in Chinese/English by touch screen,recipes can be saved.
4.Cutting position&we-tracking can be adjusted through touch screen during the continuous running.
5.Temperature controller is uesd,difference in temperature range is in 3 degree.Dentiform
sealer to seal hard.
6.Airproof configuration is used,low noise,free dust,especially used to pack powdery.
Wooden packing
1.Product production is completed, by the quality inspection department to check
2.After inspection qualified, clean for whole machine
3.Packing: a.Inside the machine put desiccant b.Add 6 cm thick foam plate around the machine,Then, winding stretch film for reinforcement, and combined with bubble wrap c.On wood packaging on the outside of the machine, then use metal reinforcement with steel
4.Container:according to different products for reinforcement
After-sale service for abroad customers
1. Free training of macine installion, operation and maintenance will be provided by our engineer.
2. Some spare parts will be sent with the machine for free. It is available to buy the parts from us forever at low price.
3. We will surpport customers after-service forever by call, email and video etc.
4. If necessary, our engineer is available to go to customer's factory for machine installion and adjustment
Company Show

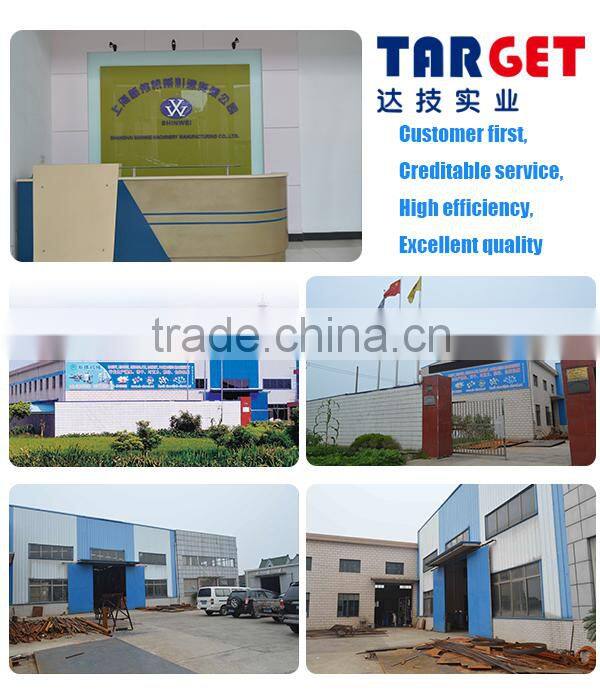

1. About us
·Nearly 20 years experiences in food processing machinery production, established in 1982.
·We are manufacturer and wholesale of dough kneading machine
·We adopt environment-friendly materials and technology
·We mainly sell stock in bulk. OEM orders are welcome
· We can accept the mix order
2. Certifications
3. Customers
4.Our Markets
5.Contact
