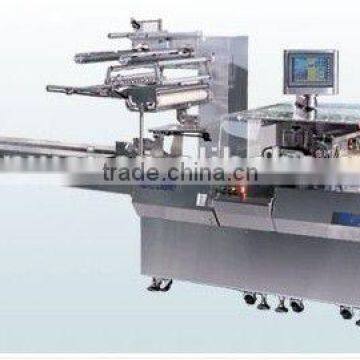

Help CenterAutomatic Horizontal Form-fill-seal Machine(without Pallet)
Related Products
-
Automatic Double Twist Wrapping MachineUS$ 4,000 - 6,500MOQ: 1 Set -
Fully Automatic Double Twist Sweetmeats Packing MachineUS$ 4,000 - 6,500MOQ: 1 Set
-
Cheap and Popular Candy Pillow Packing MachineUS$ 4,000 - 6,500MOQ: 1 Set
-
Good Quality Chia Made Ball Lollipop Bunch Wrapping Machine Lollipop Packing MachineUS$ 11,000 - 12,000MOQ: 1 Set
-
Hot Sale Ball Lollipop Bunch Wrapping Machine Lollipop Packing MachineUS$ 11,000 - 12,200MOQ: 1 Set
DESCRIPTIONS:
This machine is suitable for packing without pallet of biscuit,frozen foods,chocolate ,soaps,snow-biscuit ect.
This machine is suitable for packing the blocky articles or in case, such as instant noodles, twins instant noodles, towel, tissue, squid egg roll, sausage, sleeve fish, soaps, medicines, fresh fruit, articles for daily use, industrial components and parts, and the like.
Features:
Film feeding from below automatic packing machine SWF450 PLC based control for a more stable and reliable system with less trouble.
1. Be controlled by double transducer, flexible cutting and setting of bag length, time and film saveable.
2. Human-machine operation, convenient and quick parameter setting.
3. Self diagnosis of failure function, clear failure display.
4. High sensitivity photoelectric eye tracking color mark and digital input of cut position make the sealing and cutting more accurate.
5. Separate PID control temperature, suitable for various packing materials.
6. Stopping the machine in the selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working and convenient maintenance.
Optional device:
Printer bag angle folding mechanism and kings of auto supplying connecting apparatus.
Parameters of the machine | |
Max width of film |
450mm |
Packaging range |
L:53~300,W:20~100, H:5~70mm |
Packing speed |
30-2200Bag/min |
Category of film |
Heat-melt-cut sealing film like PAPER/PE, OPP/PE, OPP/AL/PE, CPP/PE |
Power of main motor |
1.5KW |
Power of electrical |
2.5KW |
Total power |
4.6KW single phase 220V |
Overall dimension L×W×H |
5700×960mm×1480mm |
Weight |
About 1300kg |
Application:
Wooden packing
1.Product production is completed, by the quality inspection department to check
2.After inspection qualified, clean for whole machine
3.Packing: a.Inside the machine put desiccant b.Add 6 cm thick foam plate around the machine,Then, winding stretch film for reinforcement, and combined with bubble wrap c.On wood packaging on the outside of the machine, then use metal reinforcement with steel
4.Container:according to different products for reinforcement
After-sale service for abroad customers
1. Free training of macine installion, operation and maintenance will be provided by our engineer.
2. Some spare parts will be sent with the machine for free. It is available to buy the parts from us forever at low price.
3. We will surpport customers after-service forever by call, email and video etc.
4. If necessary, our engineer is available to go to customer's factory for machine installion and adjustment
Why choose us?
·Nearly 20 years experiences in food processing machinery production, established in 1982.
·We are manufacturer and wholesale of dough kneading machine
·We adopt environment-friendly materials and technology
·We mainly sell stock in bulk. OEM orders are welcome
· We can accept the mix order
Contact us
Shanghai SHINWEI machinery manufacturing Co.,Ltd.
Add:No.7151,Puwei Road,Huqiao,Fengxian,Shanghai,China 201417
Tel:+86-21-5745 0158
M/P:13817472945
Fax:+86-21-5745 9003
Skype ID: 06
