Panvotech Wireless Lapel Microphone System Quality Choice

Name: Panvotech Wireless Lapel Microphone System Quality Choice
Brand: Panvotech
SKU: 122573259

US$ 89 - 96 MOQ: 300 Sets

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Panvotech

Model Number:

PU-536

Shenzhen Panvotech Audio Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Panvotech

Model Number PU-536

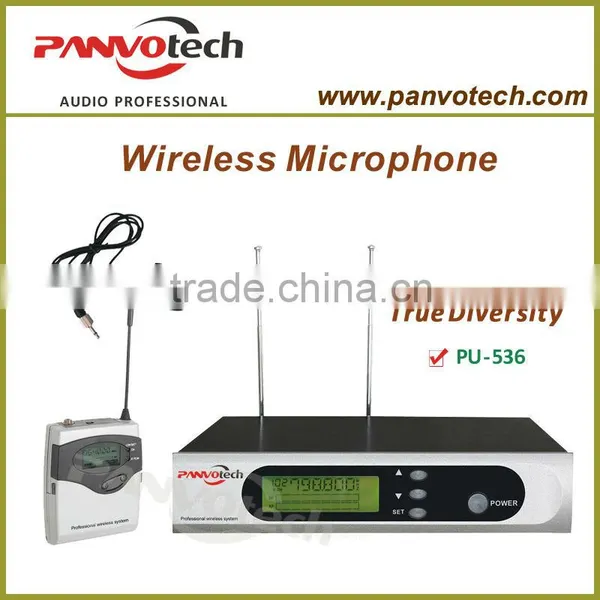

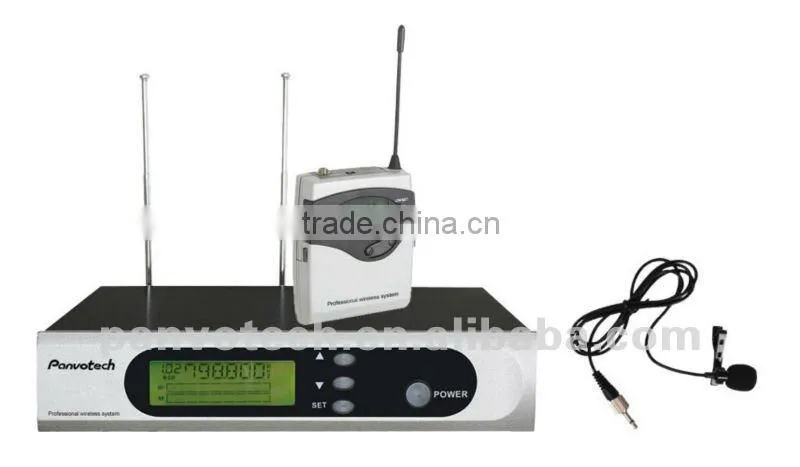

Panvotech wireless lapel microphone system

Key Features

UHF PLL Wireless tie clip microphone
Full metal receiver case & transmitter body.
True diversity technology offers superior reception quality.
PLL (phase-locked loop) ensures optimum performance.
Backlit LCD screens on receiver & transmitter display: Channel, group, transmitter battery level, RF, Audio, SQ level meters, etc.
Total 100 selectable frequencies.
Dual "PiloTone & NoiseLock" circuits minimize interference.
All controls are intuitive and easily setup via buttons.
Reliable RF & transparent audio performance.
100 m (330 ft.) operating range.
100% SMT technics ensure high performance.

Specifications

Channel	Single channel
Chassis	Full metal 80mm(W) * 44mm(H) * 213mm(D)
Receiving Mode	True Diversity
Frequency Range	UHF 520MHz~952MHz
Antenna	Rear Panel ( Detachable )
Preset Channels	100 selectable frequencies in each channel
Oscillation Mode	PLL synthesized
Stability	±0.005% (-10~60°C)
Sensitivity	10dBμV, at S/N>80dB
S/N Ratio	>75dB
T.H.D.	<1%
Frequency Response	50Hz~18KHz, with high pass filter.
Squelch	"PiloTone & NoiseLock" dual-squelch circuit.
Audio Output Adjustment	Output level accurately pre-adjusted to equal to the microphone capsule sensitivity.
Maximum Output Level	2-level Switch: Line & Mic
Power Supply	External AC Adapter, 12-17VDC, 600 mA
Transmitter battery	AA 1.5V*2
