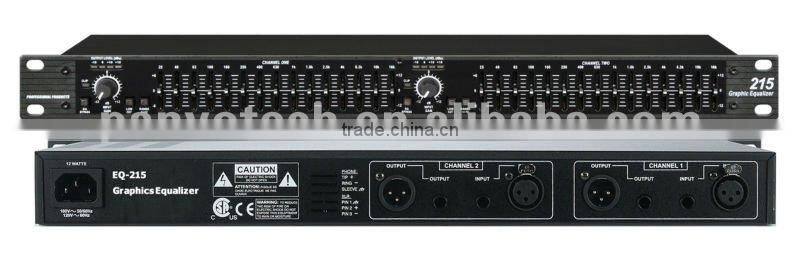

Panvotech Signal Processor EQ-215

Name: Panvotech Signal Processor EQ-215
Brand: Panvotech
Availability: InStock

FOB Price

US$ 47 - 50 / Set

50 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Panvotech
Model Number	EQ-215

Panvotech Graphics Equalizer EQ-215

Key Features

1. Two 15-band, 2/3-octave Constant Q frequency bands

2. Switchable boost/cut ranges of ±6 or ±12 dB

3. 12dB per octave, 3dB down @ 50Hz low-cut filter

4. Front panel bypass switch

5. ±12 dB input gain range

6. 4-segment LED ladders for monitoring output levels

7. XLR and TRS Inpts and Outputs

8. Internal Toroidal Transformer

9. Frequency Repsonse of <10Hz to >50kHx

10. Dynamic range of greater than 108dB

Specifications

Product Name	Graphic Equalizer
Model No.	EQ-215
Frequency Bands	2x15 1/3 Octave,ISO Spacing
Input	RF Filtered Servo-Balanced Input
Input Impedance	20KΩ Unbalanced 40KΩ Balanced
Output Impedance	Balanced 100 ohm, unbalanced 50 ohm
Frequency Response	<10Hz to >50kHz, +0.5/-3dB
S/N Ration	90dB
T.H.D	<0.004%
Max.Output Level	>+21dBu balanced/unbalanced into 2k ohm or greater
AC Voltage	100~120/60Hz or 200~240/50Hz VAC Selectable
