Full automatic serve driven h600S-S/1200ard candy depositing line (advanced technology)
Product Show

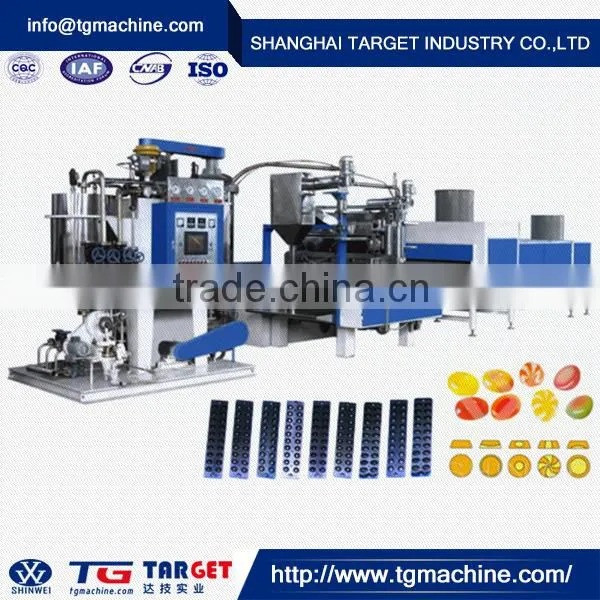

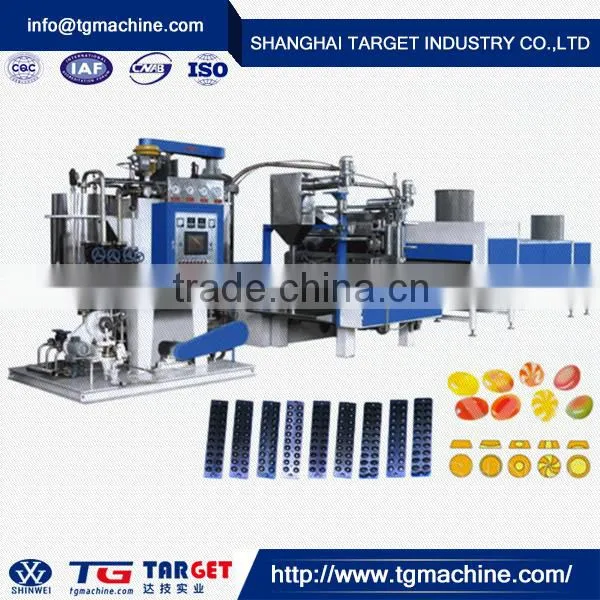

1. Product Pictures of hard candy production line
We have more product for you choice
like chocolate machine,Biscuit Production Line and so on,
please click here
2. Product Description of hard candy production line
TECHNICAL SPECIFICATIONS:
Model |
GD150-S |
GD300-S |
GD450-S |
GD600-S |
GD1200-S |
Output(kg/h) |
150 |
300 |
450 |
600 |
1200 |
Max candy weight |
6g |
6g |
6g |
6g |
6g |
speed |
55~65 n/min |
55~65 n/min |
55~65 n/min |
55~65 n/min |
55~65 n/min |
|
Steam consumption Steam pressure |
250kg/h, 0.5~0.8MPa |
300kg/h, 0.5~0.8MPa |
400kg/h, 0.5~0.8MPa |
500kg/h, 0.5~0.8MPa |
800kg/h, 0.5~0.8MPa |
|
Compressed air consumption Compressed air pressure |
0.2m3/min, 0.4~0.6MPa |
0.2m3/min, 0.4~0.6MPa |
0.25m3/min, 0.4~0.6MPa |
0.3m3/min, 0.4~0.6MPa |
0.4m3/min, 0.4~0.6MPa |
Electric power needed |
18kW/380V |
27kW/380V |
34kW/380V |
42kW/380V |
68KW/380V |
Total length(m) |
15 |
17 |
17 |
20 |
25 |
Gross weight |
3500 kg |
4000 kg |
4500 kg |
5000 kg |
8000kg |
GD hard candy making machine can make “two/three color ”, “two/three color double layers”, “central filling”,
“clear” hard candies and flat or ball lollipop. Candies produced by this machine have transparent, smooth
surface and good taste. It is also an ideal equipment to make good quality confectionery which saves both
manpower and the space occupied. This machine line has got CE cerficate after inspection by SGS.
GD150-S/300-S/450-S/1200-S full automatic serve driven PLC controlled hard candy depositing line is the
most advanced production line for deposited hard candy manufacturing.the line is consist of auto weighing
and mixing system,pressure dissolving system,micro-film cooker,depositor and industrial and industrial cooling
tunnel.itis developed base on SHINWEI’s 4th generation hard candy depositing line,adopt the advance serve
system to control the processing.
The features:
1.all units of the production line are auto running,all raw materials are handling in the piping and machine,and various kind of recipes can be programmed in the PLC and applied easily and freely when needed.
2.PLC and serve driven system are imported brand which is more reliable and better quality.
3.Depositing volume (candy weight)can be changed easily that just need to set the data in the touch screen.more accurate depositing and continuous production makes minimal product wastage.
4.Simple and compact machine structure,menu operation,better efficiently ,high speed running reliable and steady;little noise are available in this machine.
Whole Automatic Hard Candy Making Machine Constituent Parts:
Sugar Melting Pot---Syrup Pump---Storage Tank(with mixing function)
---continous Vacuum Micro-film Cooker--Multi-function Servo Depositing Machine
---sticking Machine---Wrapping Machine
Wooden packing
1.Product production is completed, by the quality inspection department to check
2.After inspection qualified, clean for whole machine
3.Packing: a.Inside the machine put desiccant b.Add 6 cm thick foam plate around the machine,Then, winding stretch film for reinforcement, and combined with bubble wrap c.On wood packaging on the outside of the machine, then use metal reinforcement with steel
4.Container:according to different products for reinforcement
After-sale service for abroad customers
1. Free training of macine installion, operation and maintenance will be provided by our engineer.
2. Some spare parts will be sent with the machine for free. It is available to buy the parts from us forever at low price.
3. We will surpport customers after-service forever by call, email and video etc.
4. If necessary, our engineer is available to go to customer's factory for machine installion and adjustment

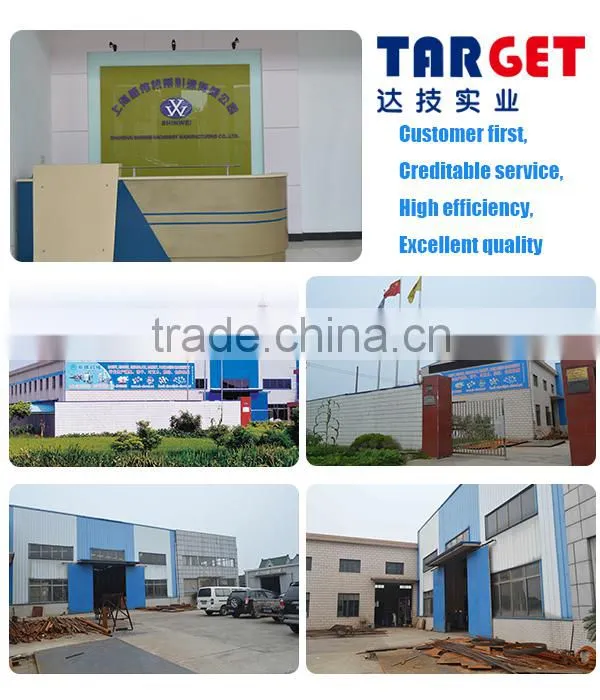

Company Show
1. About us
·Nearly 20 years experiences in food processing machinery production, established in 1982.
·We are manufacturer and wholesale of dough kneading machine
·We adopt environment-friendly materials and technology
·We mainly sell stock in bulk. OEM orders are welcome
· We can accept the mix order
2. Certifications
3. Customers
4.Our Markets
5.Contact
