Specifications
Rubber kneader mixerISO certificate
One of the biggest rubber machinery producer
Export to Europe, USA, Japan

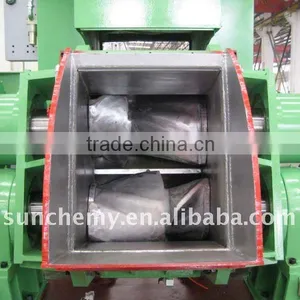

Rubber kneader mixer
Dispersion mixer/rubber kneader/kneader
This mixer is a new and high-tech equipment developed for the mixing of high-power or low-power foaming plastics and for the foaming of rubber and plastics products.
Specifications:3L-200L
Features:
1. This mixer is new and high-tech equipment developed for the mixing of high-power or low-power foaming plastics and for the foaming of rubber and plastics products.
2. This mixer possesses of the automatically contstant temperature water supply system and the high and low pressure control device of ram.
3. This mixer prosseses of the time sequential control and temperature sequential control functions.
4. According to the requirement, the revolution speed of front rotor can be raised up to Upwards of 40r/min.
5. According to the request of users, the heating mode can be provided with the steam heating, electric heating or heating by heat conductive oil.
6. This product is a most ideal plastics mixing.
Molde/Item |
X(S)N-3×32 |
X(S)N-5×32 |
X(S)N-10×32 |
X(S)N-20×32 |
X(S)N-25×32 |
X(S)N-35×30 |
X(S)N-55×30 |
X(S)N-75×30 |
X(S)N- 110×30 |
X(S)N- 150×30 |
|
Total volume of mixing chamber |
L |
8 |
15 |
25 |
45 |
55 |
75 |
125 |
170 |
250 |
325 |
Working volume of mixing chamber |
L |
3 |
5 |
10 |
20 |
25 |
35 |
55 |
75 |
110 |
150 |
Driving motor power |
kW |
5.5 |
11 |
22 |
37 |
37 |
55 |
75 |
110 |
185 |
220 |
Tilting motor power |
kW |
0.55 |
1.1 |
1.1 |
1.5 |
1.5 |
2.2 |
2.2 |
3 |
5.5 |
11 |
Tilting angle |
° |
140 |
140 |
140 |
140 |
140 |
140 |
140 |
140 |
140 |
135 |
Rotational speed of the rotor (front /rear) |
r/min |
32/24.5 |
32/23.5 |
32/25 |
32/27 |
32/27 |
30/24.5 |
30/24.5 |
30/24.5 |
30/24.5 |
30/24.5 |
Pressure of compressed air |
MPa |
0.5~0.8 |
0.6~0.8 |
0.5~0.8 |
0.6~0.8 |
0.6~0.8 |
0.5~0.8 |
0.6~0.8 |
0.6~0.8 |
0.6~0.8 |
0.6~0.8 |
Capacity of compressed air |
m3/min |
≥0.3 |
≥0.5 |
≥0.5 |
≥0.7 |
≥0.7 |
≥0.9 |
≥1.0 |
≥1.0 |
≥1.5 |
≥1.0 |
Pressure of cooling water (rubber mixing ) |
MPa |
0.2~0.4 |
0.2~0.4 |
0.2~0.4 |
0.2~0.4 |
0.2~0.4 |
0.3~0.4 |
0.3~0.4 |
0.3~0.4 |
0.3~0.4 |
0.2~0.4 |
Pressure of heating steam (plastics mixing ) |
MPa |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
0.4~0.8 |
Rubber kneader mixer
Dispersion mixer/rubber kneader/kneader
