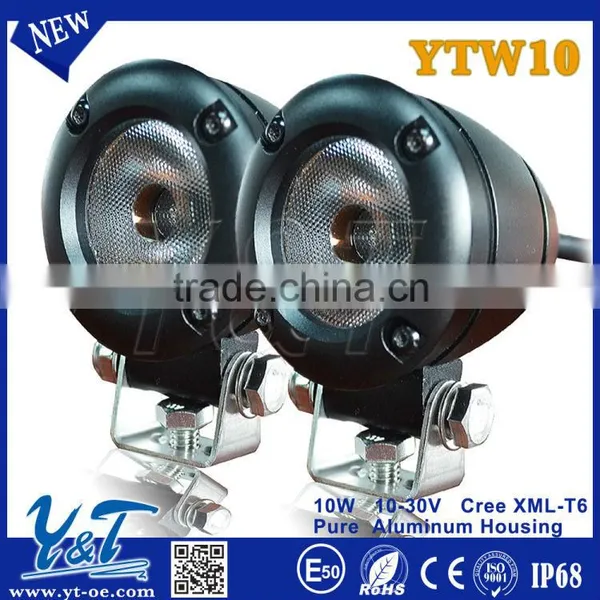

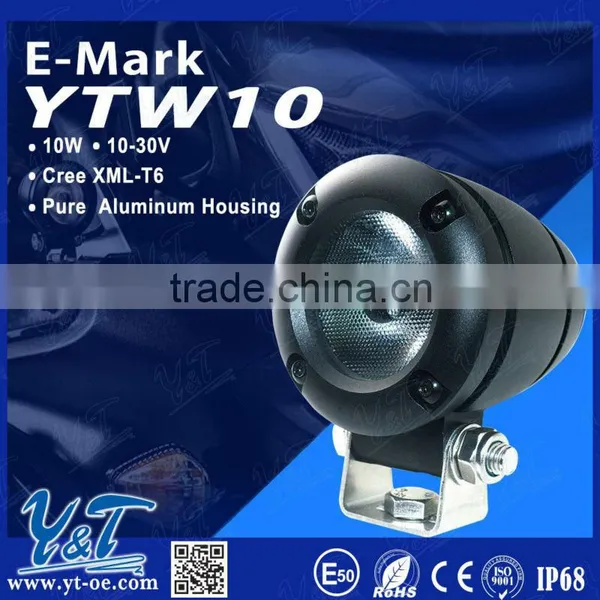

Y&T YTW 10W BLACK C REE XML_T6 LED Chip Turn Signal Light

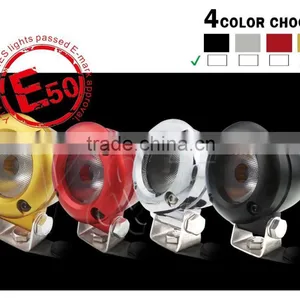

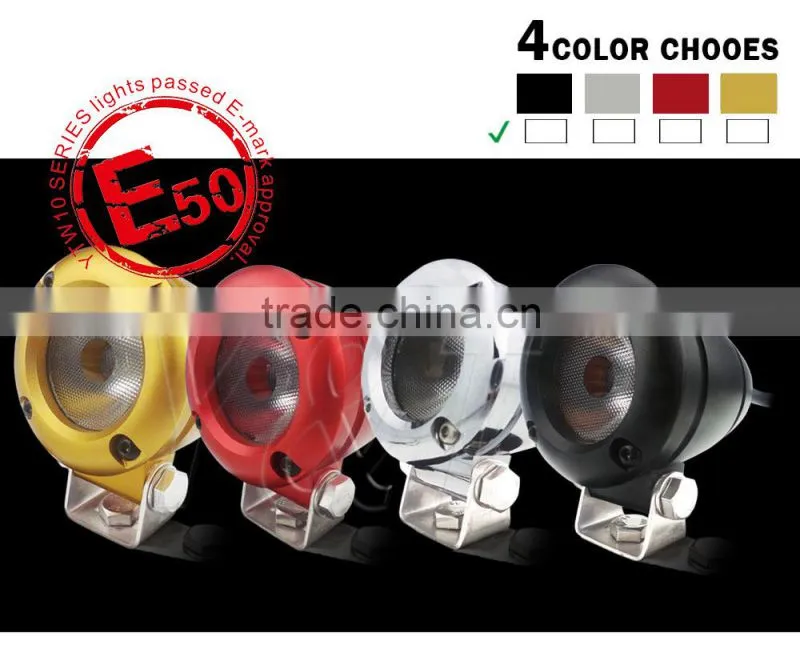

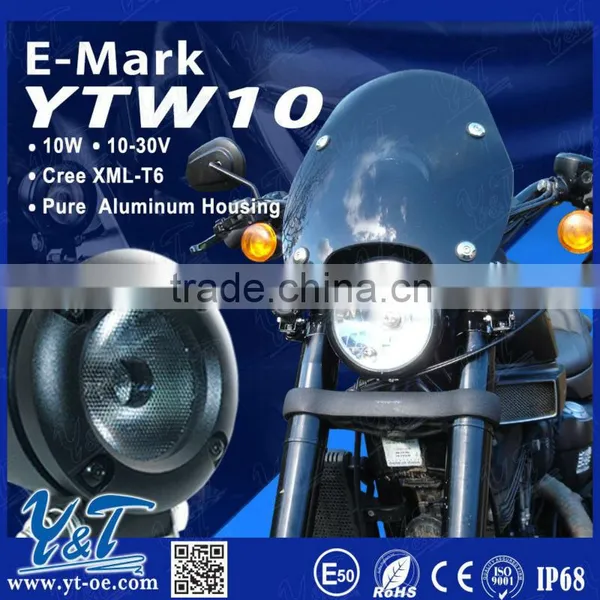

| YTW10 SERIES lights passed E-mark approval. |
| PRODUCT ADVANTAGE |
|
1) Original Design: The YTW10 Series are designed as a Super-Mini led offroad lights 3) Cree High Performance LED: Ensure the long lifespan and superior illumination & stability. Round 2 Inch Mini 10W LED Work Light, LED Bycicle Light, Motorcycle Light 4) High Luminous Efficiency: Output over 940 Lumen High Brightness Lights for a super long distance! Round 2 Inch Mini 10W LED Work Light, LED Bycicle Light, Motorcycle Light |

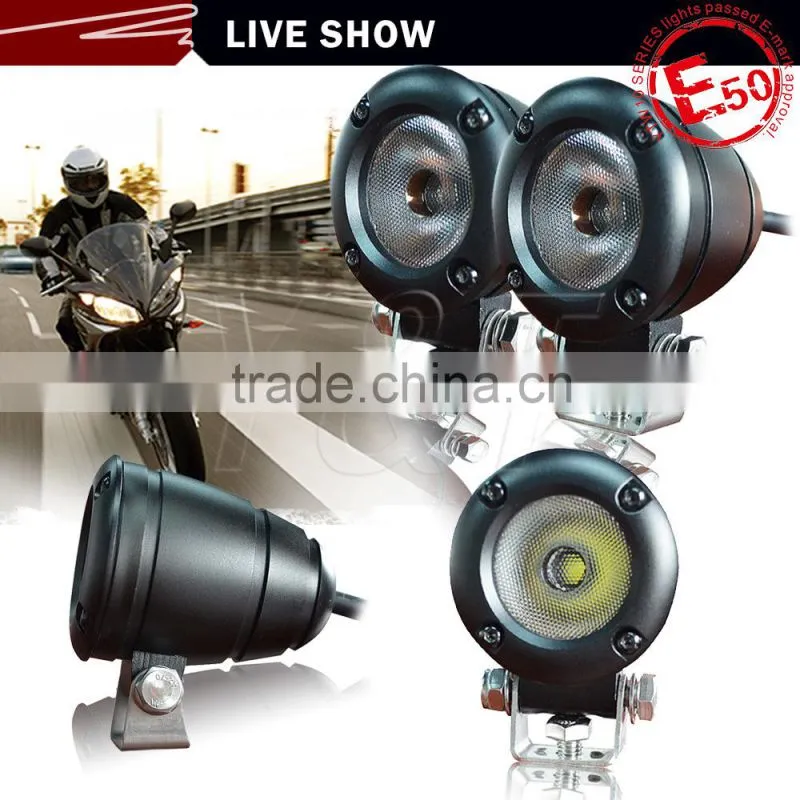

| LIVE SHOW |

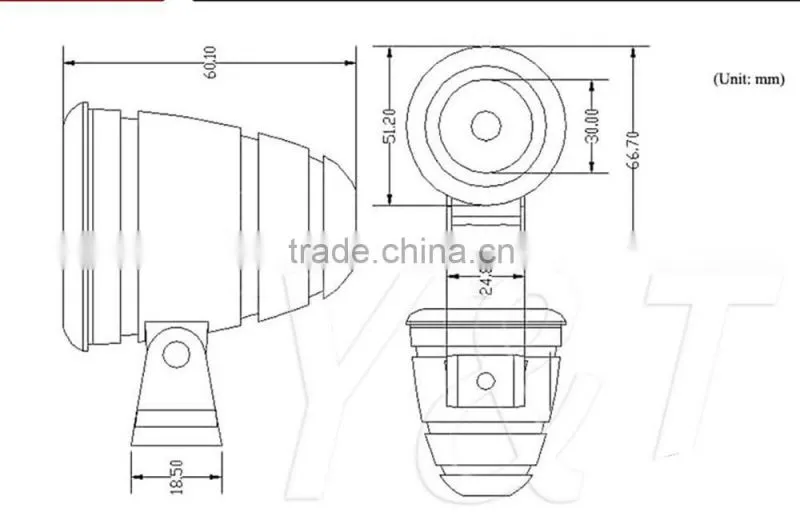

| DIMENSION |
| SPECIFICATION LED motorcycle headlight |
| Model NO : YTW10 | |
| Input voltage: DC10~30V | |
| Constant Current: 900mA@12V,400mA@24V | |
| Power consumption: 10W | |
| Luminous Flux: 950~1080lm | |
| LED Source: Cree XML-T6 LED Chip | |
| Certification: CE,RoHS,FCC,ISO9001,E50 | |

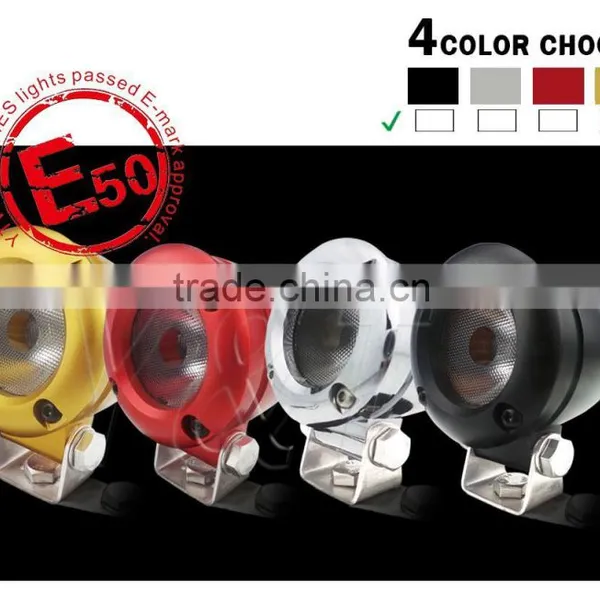

| Optional Color: Black | |
| Materials of Housing: Pure Aluminum | |
|
Lens: Virtually UnbreakablePMMA Lens,Light Transmittance>93%,Heat Resistance>90°C. | |
| Support & Connector: Stainless Steel mounting bracket | |
| CCT: 6,000~7,000K | |
| Optional Beam Pattern: Flood Beam(45deg) / Spot Beam(25deg) | |
| IP rate: IP68 | |
| Dimension(mm): 51.2(D)* 61.0(W)* 66.7(H) | |
| Working temperature: -45℃~105℃ | |
| Working humidity: 10%~98% | |
| Light source life span: >50,000Hrs | |
| Electrostatic Discharge Threshold :(HBM)CLASS 2 | |
| Warranty: 1 year in Normal Use |

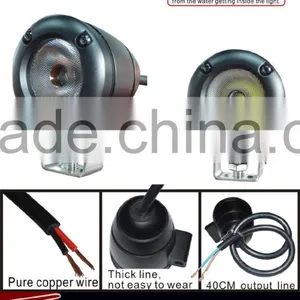

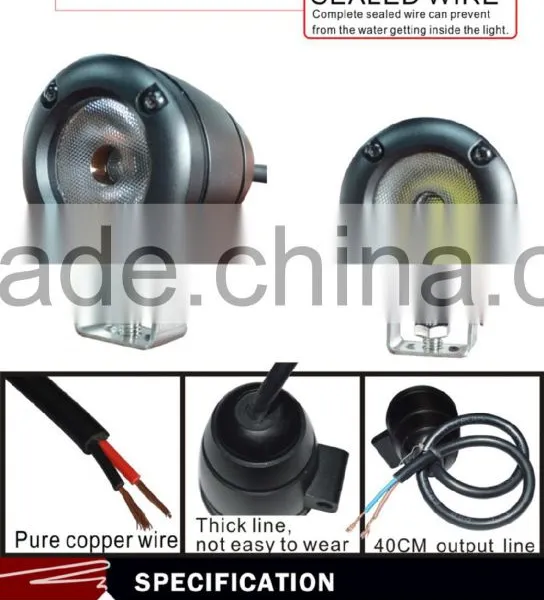

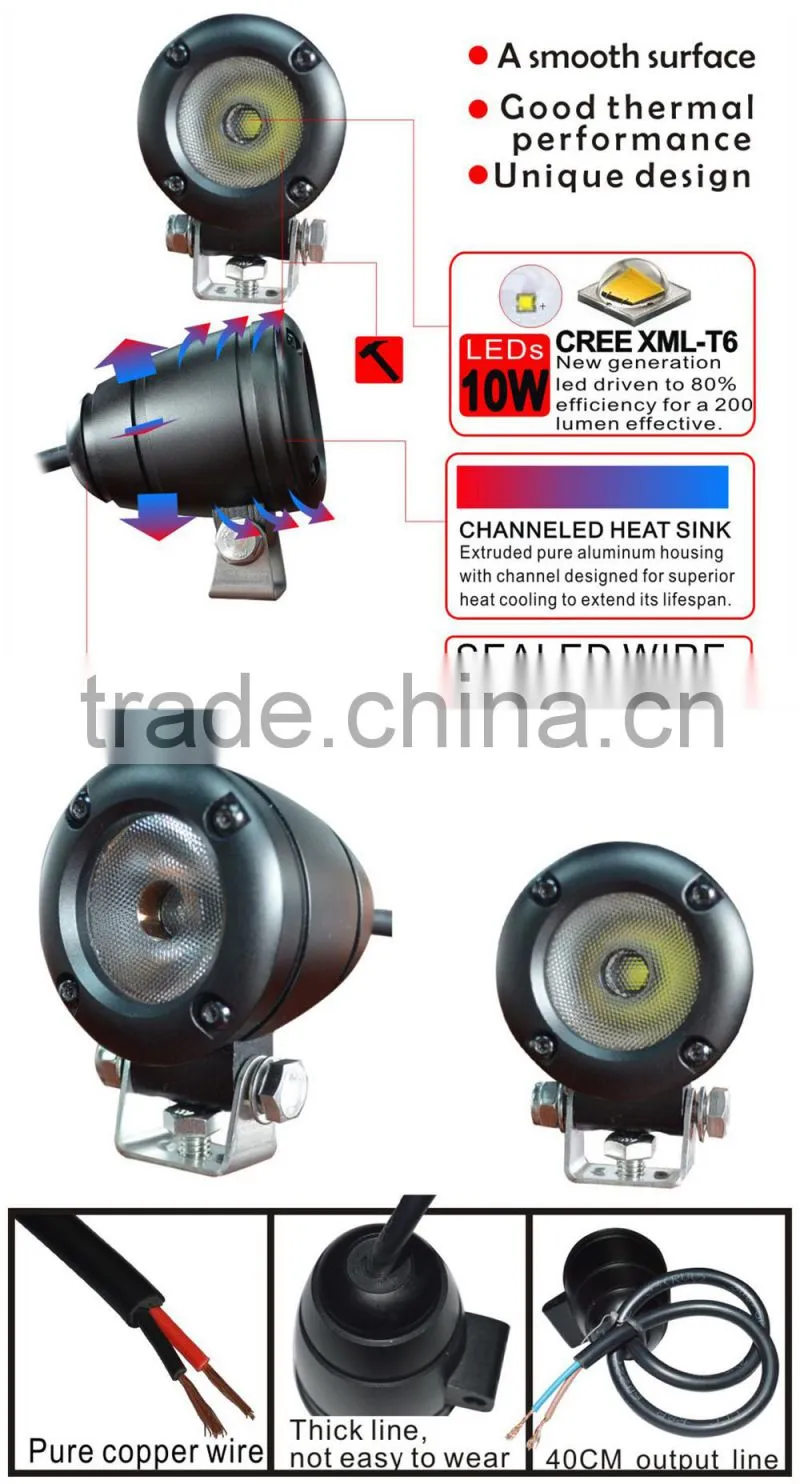

| DETAILS SHOW |
10W LED Motorcycle Work Lights. |
| PRODUCTS TESTING |
10w LED driving lights
|
TEST Round 2 Inch Mini 10W LED Work Light, LED Bycicle Light, Motorcycle Light >> Waterproof test: place the lamps in the water to soak for 24 hour to test whether there is >> Aging test: put the lamps in aging rack, light for 3 hours mainly to test the brightness and |

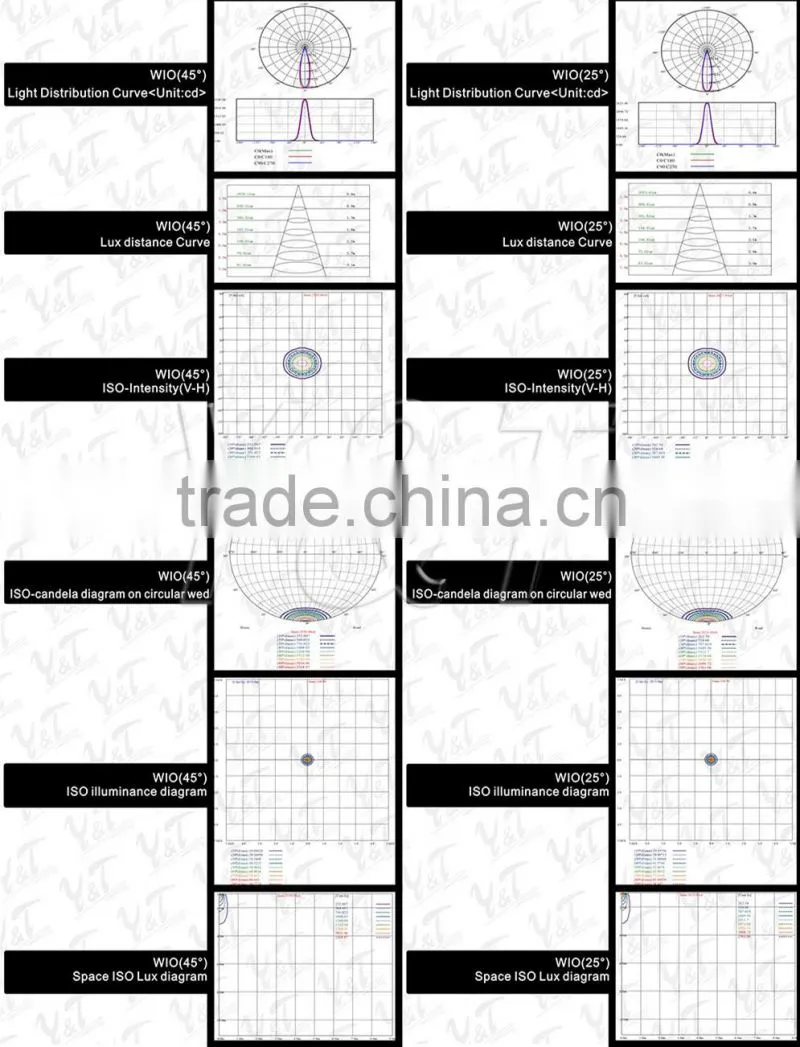

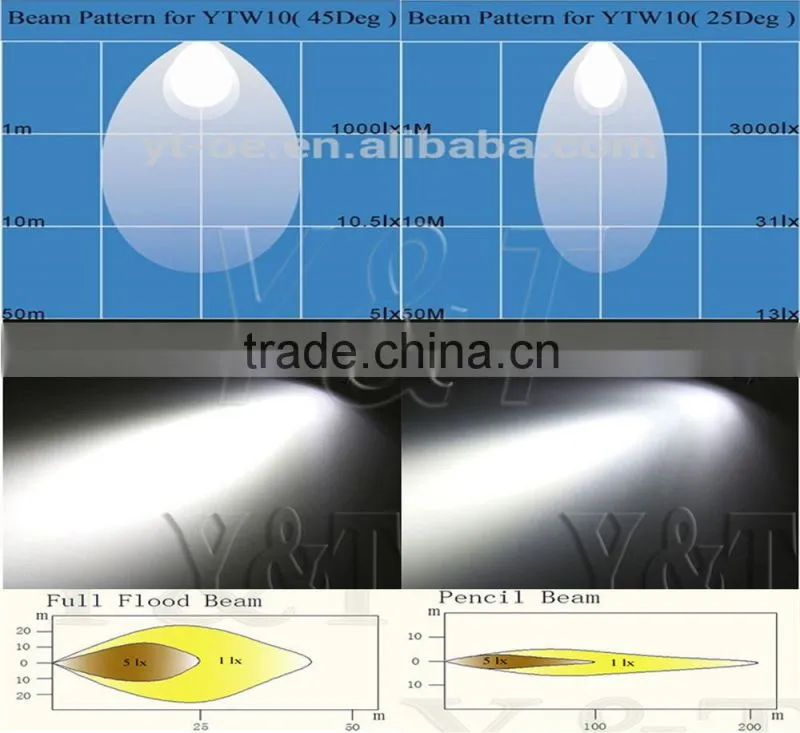

| BEAM PATTERN |

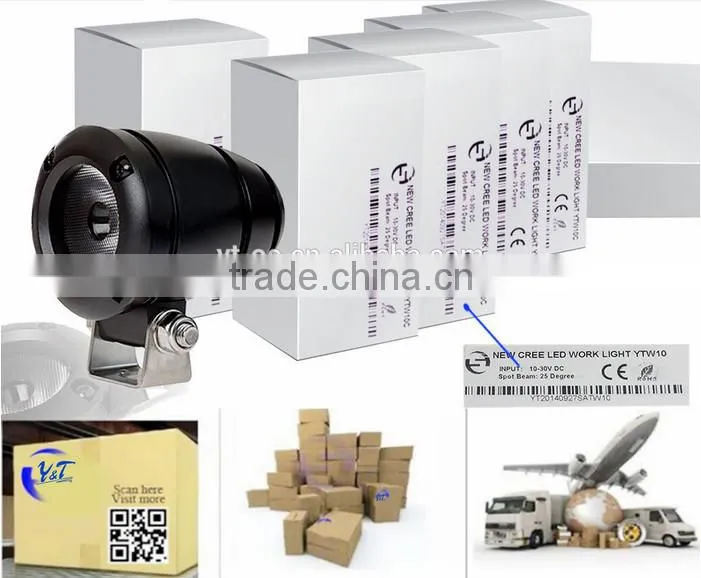

| PRODUCT PACKAGING |

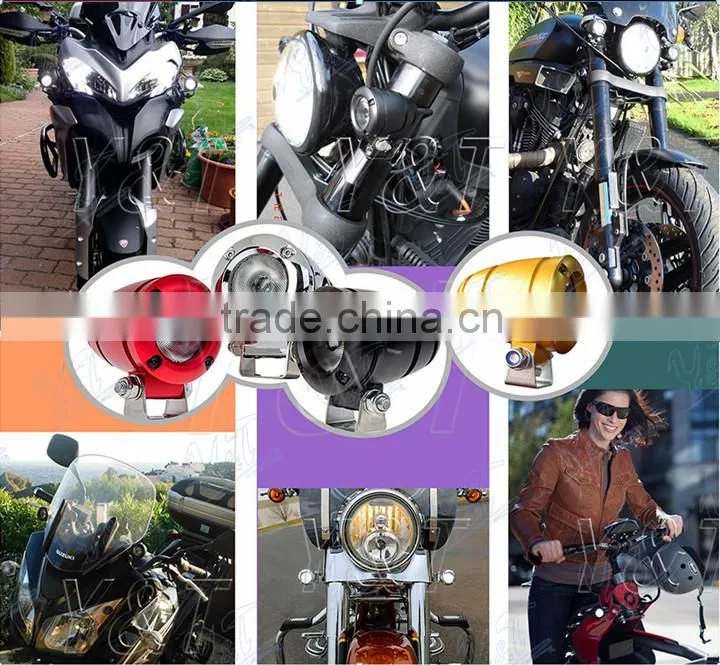

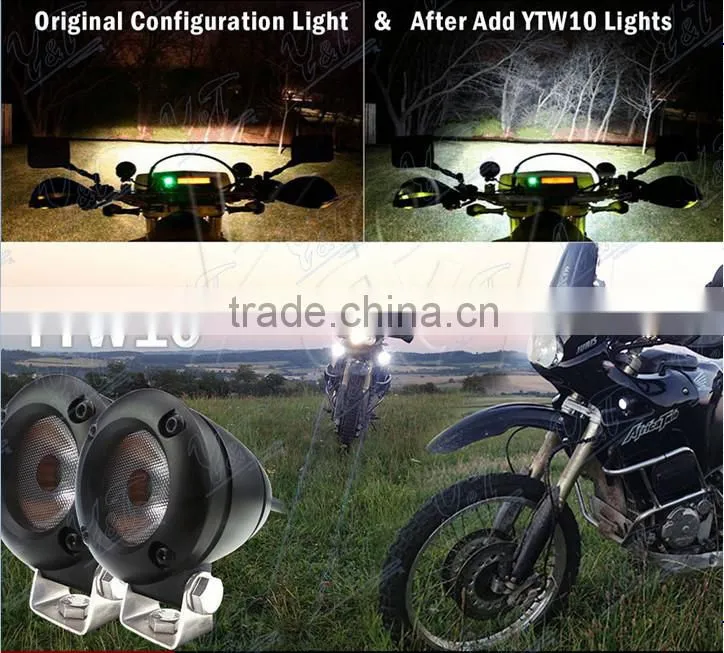

| APPLICATIONS |
a. Motorcycle, ATVs, UTVs, Off-road Vehicles, Excavator, Trucks, Mining. |
| CERTIFICATE |
Round 2 Inch Mini 10W LED Work Light, LED Bycicle Light, Motorcycle Light
| COMPANY INFORMATION |
Round 2 Inch Mini 10W LED Work Light, LED Bycicle Light, Motorcycle Light
| FAQ |
INTRO:
1) Why Choose Cree LEDs?
Y&T Luminaires utilize High Quality Cree LEDs: Long life, Energy efficiency, Ecologically friendly.
2) Why Choose Y&T?
Y&T are passionate about the art and science of LED Lighting. We had been audited by SGS-CSTC already and specialize in featuring innovations . Currently our deliver cost-effective lights had been exported to over 60 countries in automatic, industrial & engineering areas.
3) What is your OEM packaging inside and outside? What is in every single box?
Neutral packing, foam inside box+ outside box+ Carton
4) Lead time from order placed/payment received to port (China)
Base on the quantity,sample order: 1-3days, bulk order: 7-15days
5) What’s the Warranty and how to Return Back the Defective Products?
One Year in Normal Use.
We provided the Best After Sales for customers all the time! As soon as a defective product was confirmed to be caused by our side, we would offer a new one to you, while customers ONLY have to pay for the delivery fees.
6) Your quality guidelines? Your defect rate?
Our repair rate has been control in 1/1000
7) Type of testing? What testing machines?
Waterproof test , UV test, burn-in test, Antistatic, Integrating sphere , carving machine, salt spray
test machine, shock tester,EMCRF SHIELD ROOM, Darkroom,
8) Certifications? IP rating?
CE FCC ROHS E50 ISO9001 IP67-IP68
9) What is your light output efficiency? Lumens/watt?
We have 9W-288W
Epistart chip:80lm/W Imported Cree chip: 90lm/W Imported
10) Aluminum or copper circuit board?
Aluminum substrate
11) Aluminum or nylon housing mold?
Aluminium alloy extrusion profiles
12) Features: Lens type? Steel type? Paint type? Heat sink?
Lens type: PC or tempered glass,Heat sink: heat shrink tubing
13) Optical efficiency? Power consumption?
That must have the consumption during the burn-in test, but for the concrete data, we do not
have the calculation. 10w LED driving lights 12v motorcycle front lights 10w led spotlight
OEM & ODM are welcome from you!
Any more questions or information, pls feel free to send an inquiry for us! We will reply immediately after we receive your enquiry. Thank you!
Y&T sales Dep.
