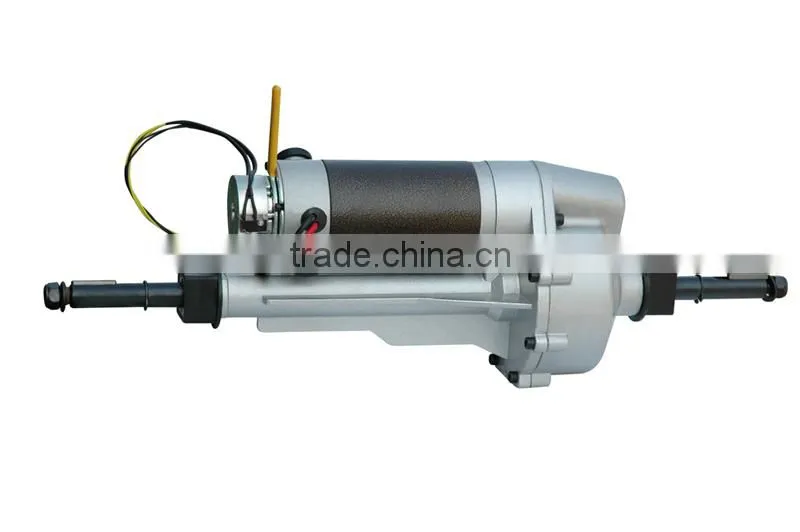

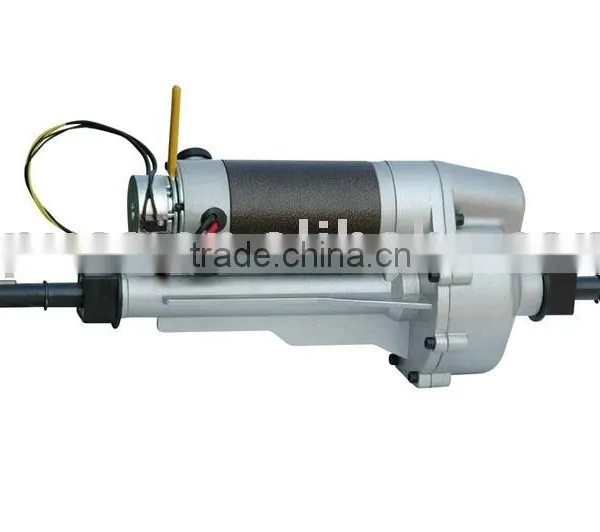

transaxle motor
- 1600 Piece / Pieces per Month
- Ningbo
You May Like
Product Details
| Gearing Arrangement | Planetary | Output Torque | 182N.m | |
| Rated Power | 400W | Input Speed | 3800rpm | |
| Output Speed | 180-200rpm | Place of Origin | Zhejiang, China | |
| Model Number | RP-T2-400 | Brand Name | RUPU |
Product Description
Specifications
1.Complete driving system including transaxle, PM DC motor and electric magnetic brake.2. PM DC 400W24V.
3.Aluminium housing.
Voltage:24V
Power:400W
Onload Current:13-20A
Max torque: more than 100N.m
Output Speed:170-220RPM
Ratio:20:1
Net Weight:9.8KG
Max Load:150KG
Packing Size:67*24*21cm
carton,shipment within 2-3 weeks after payment.
Jinhua Ruipu Machinrey Manufacturing Co.,ltd is an enterprise engaged in foreign sale business which integrating R&D,production, and marketing together, mainly specialized in the production of gear box for golf trolley, electric transaxle and dual motor. Our company is located at Jinhua city, Zhejiang Province, covering around 4000 square meter.
1. complete driving system including gear differentia electric DC motor and magnetic brake.
2.24V DC motor ,operates in both driections,longmounting distance.
3.aluminum Alloy Housing with high quality.
4.carbon brush life:around 1500 hours.
