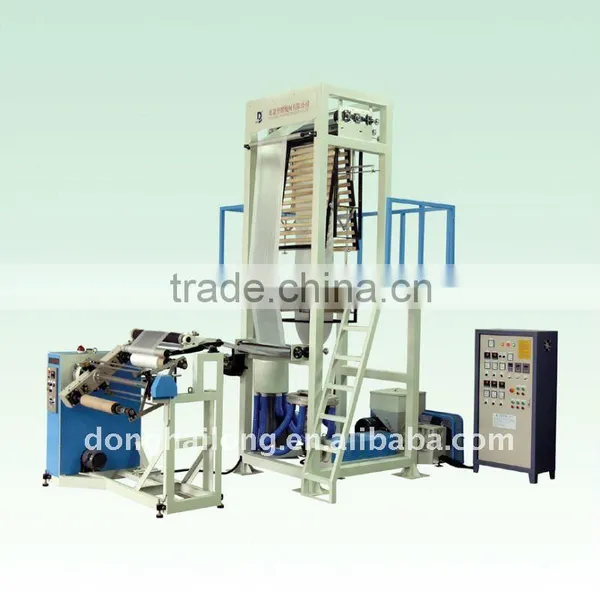

High Speed HDPE Film Blowing Machine

Name: High Speed HDPE Film Blowing Machine
Brand: donghailong
SKU: 122547349

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

donghailong

Model Number:

SJ45-FMS850H

Donglong Plastic Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

xiamen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name donghailong

Model Number SJ45-FMS850H

After-sales Service Provided Engineers available to service machinery overseas

Specifications

High speed HDPE film blowing extruder machine
Marketing area;Southeast Asia,Mid east,South America.

High Speed HDPE Plastic Film Blowing Machine

Features:

SJ-H Series High Speed HDPE Film blowing machine
Model	SJ45-FMS850H	SJ55-FMS1100H	SJ65-FMS1300H
Max. Folded Film Width	700mm	1000mm	1200mm
Film Thickness	0.008~0.15mm	0.008~0.15mm	0.015~0.20mm
Output	55 kg/h	80 kg/h	100 kg/h
Raw Material	HDPE
Screw Diameter	Φ45mm	Φ55mm	Φ65mm
Screw L/D	28:1	28:1	28:1
Power of Main Motor	15KW	22 KW	37KW
Die Diameter	Φ60mmΦ80mm	Φ80mmΦ100mm	Φ100mmΦ120mm
Die Heater Capacity	3.45KW	3.45 KW	6.1 KW
Cooling Air Blower	3.0KW	4.0KW	4.0 KW
Haul-off Driving Motor	1.5 KW	1.5KW	1.5 KW
Take-up Speed	10~100m/min	10~100m/min	10~100m/min
Winder Drive Motor	2.2KW	2.2 KW	3.0 KW
Temperature Control	6 units	6 units	6 units
Total Power of the Machine	~32KW	~43 KW	~63KW
Shape Size( L x W x H)	4.5X2.5 X 4.0m	5.5 X 3.0X4.5m	6.3 X3.5 X 5.5m
Weight	~2000kg	~3000kg	~3800kg
Correct specifications depend on the actual model all specifications are subject to change without prior notice- High speed plastic film blowing machine
