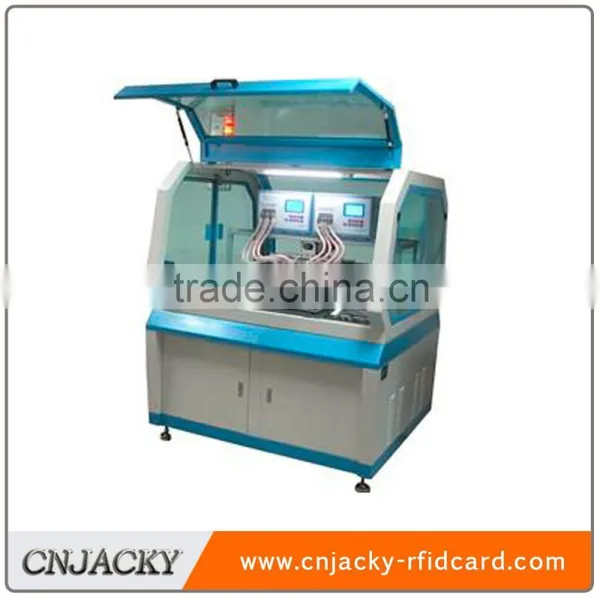

CNJ-RFID Full Auto Antenna Bonding Machine
Feature:
The full auto bonding machine use to weld the antenna and modules of contactless cards. With the double pulse
current inverter welding, the machine is steady. The machinery automation technologies instead of the traditional manual way to welding the chip, which save the labor and reduce costs, at the same time, ensure the quality of the products.In the machine structure, the machine is easy to operate and maintain, which enhances the service life of machine and the productivity. The appearance and style of the machine is concise and easy, rationalization and hommization, and the user-friendly
operator interface protect the safety of operators. We can also design the different style appearance according to
different requirement.We offer the perfect after-sale service and technical follow-up, and provide paid lifelong maintenance.
Main function:
1. After chip placing and wire embedding, the bonding machine can finish the welding of wire and chip.
2. Use the double pulse current inverter welding machine, convenient and directly to monitor the welding, precision and high quality.
3. The welding inverter can be adjusted according the production process.
4. Servo system controls the position of welding heads, which ensure the welding quality and protect the welding heads.
5. It can weld the different layout., each layout setting can be called directly
6. The welding heads can be adjusted at X,Y,Z direction.
7. No need for air supply.
8. Welding with the low noise.
9. The machine can be installed 8 heads at most,and1 to 8 welding heads welding at the same time.
10. Use the Delta PLC and the touch screen, stable and visualized.
Technical parameter:
| Overall dimension | Approx. L1400*W1200*H1800mm |
| Weight | Approx. 850kg |
| Power supply | AC220V 50/60HZ 25A |
| Power | 3KW |
| Air pressure | 6 kg /cm |
| Control | Servo positioning + PLC |
| Tolerance of adjustment | 0.01mm |
| Accuracy | Scale of servo system = 0.01mm |
| Applicable materials | The finished module placing and wire embedding |
| Operator | 1 person |
| Output rate | About 1500-4000pcs/hr |
| Product percent of pass | 99% |
