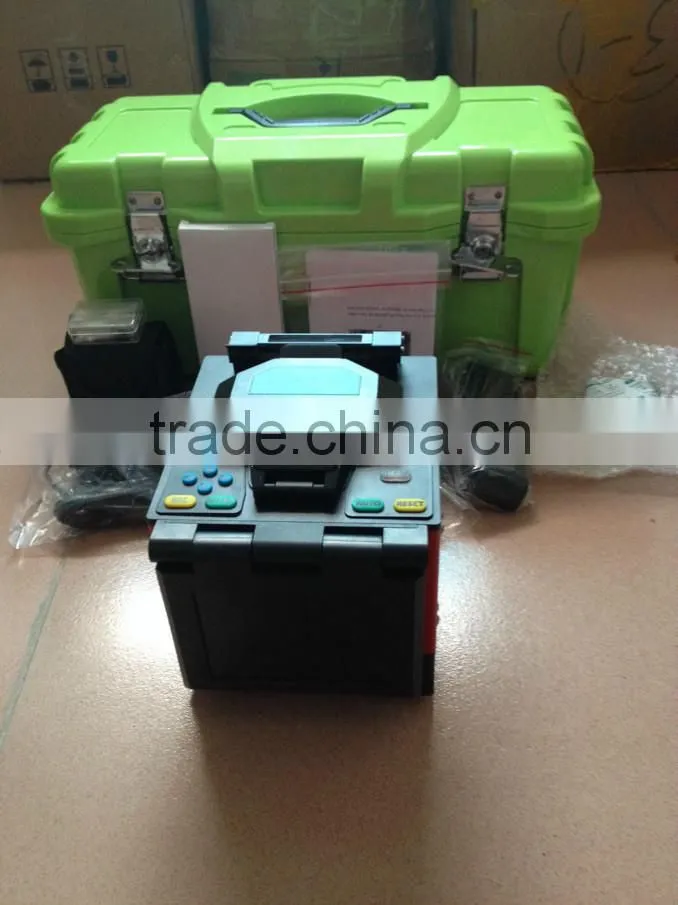

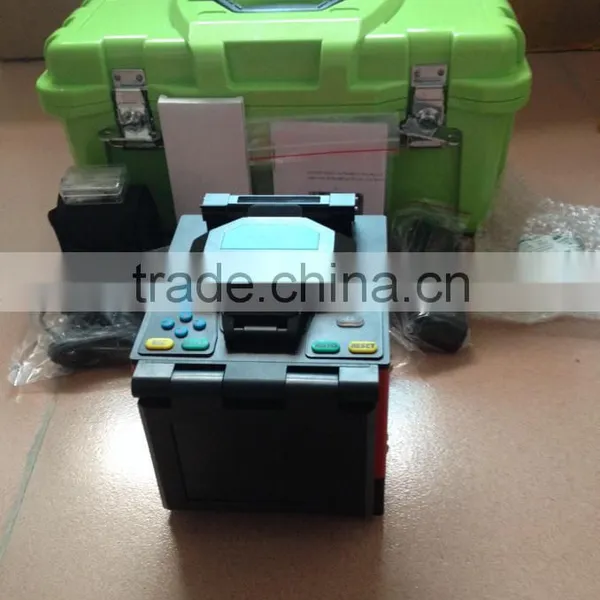

Help CenterDigital Fiber Optical Splicer Machine Fusion Splicer Machine Fiber Optical Splicing Machine Set Auto Mode Fusion Splicer Kit Set
Related Products
-
Portable Palm Optical Time Domain Reflectometer (OTDR)US$ 250 - 1,200MOQ: 1 Set -
Fujikura Fusion Splicer MachineUS$ 5,000 - 6,800MOQ: 1 Set
-
Fiber Optical Splice Enclosure Jointed Closure Fiber Fusion Splice Enclosure Dome Horizontal Splicing EnclosureUS$ 1 - 50MOQ: 50 Pieces
-
Fiber Optic Adapters Simplex Network FTTH Connectors With Inner / External Shutter Dust Cap Single Mode Duplex Optic AdaptorsUS$ 0.1 - 1MOQ: 1000 Pieces
-
Optical Fiber Splicing Machine With Complete Tool Set Fiber Optic Splicer Machine Blue Red Yellow Orange ColorsUS$ 2,000 - 3,000MOQ: 1 Set
Fujikura splicer machine Somitomo fusion splicer machine Techwin splicing machine DVP Splicer machine TCW fusion splicer Fujikura 60s 40s 80s splicer machine fusion splicers
Main Features:
1) 5 inches high Resolution colorful LCD display
2) Average splice time: 10 second
3)Average tube-heat time: 40 second
4) Lithium battery: up to 180 times of continuous splice and heat
5) Simultaneous X and Y views with 180 times magnification
6) New developed technology providing wind and dust resistance
7) Splicing mode:Auto & Manual
8)USB Port
9)Storing 6,000 groups of splice results.
Specifications:
Applicable Fibers |
SM, MM, NZ-DS, EDF |
Average Splice Loss |
0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
Return Loss |
≥60dB |
Tension Test |
2.0N(200gf)(Standard) |
Splicing Program |
50 groups |
Protection Sleeve Length |
20mm, 40mm, 60mm |
Language |
Chinese, English |
Environmental Conditions |
-10~+50℃(operation temperature),0~95% RH(humidity), 0~5000m(altitude) |
Power Supply |
AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A output voltage(DC) DC adaptor: 12V voltage 8AH |
Dimensions |
155(W)*165(D)*150(H) |
Weight |
2.8kg |
Standard Package
No. |
Item |
Quantity |
1 |
Machine |
1 |
2 |
Fiber Cleaver |
1 |
3 |
Fiber Stripper |
1 |
4 |
AC Adaptor |
1 |
5 |
Battery |
1 |
6 |
Charger |
1 |
7 |
Spare Electrodes |
1 |
8 |
Cooling Tray |
1 |
9 |
Instruction CD |
1 |
10 |
Quick Reference Guide |
1 |
11 |
Transit Case with Carrying Strap |
1 |
