Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > Digital Fusion Splicer Tool Kit Fiber Optical Splicer Machine Set Splicing Machine Kit

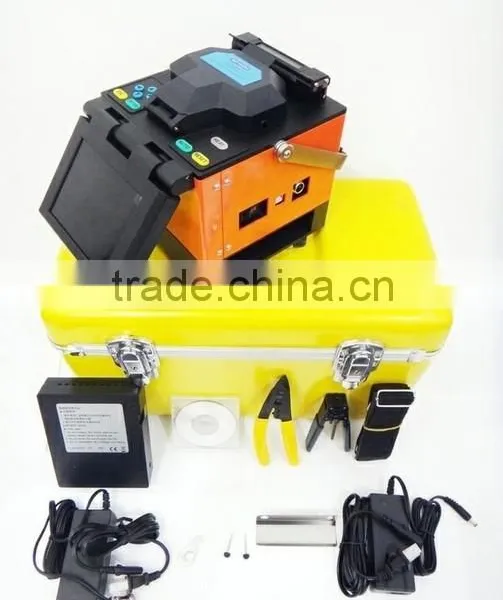

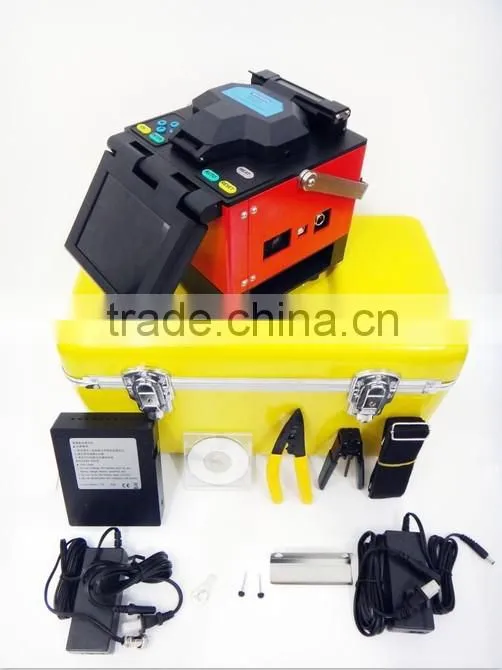

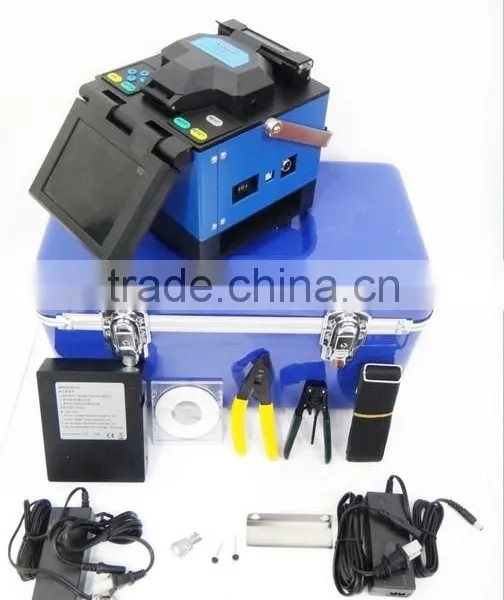

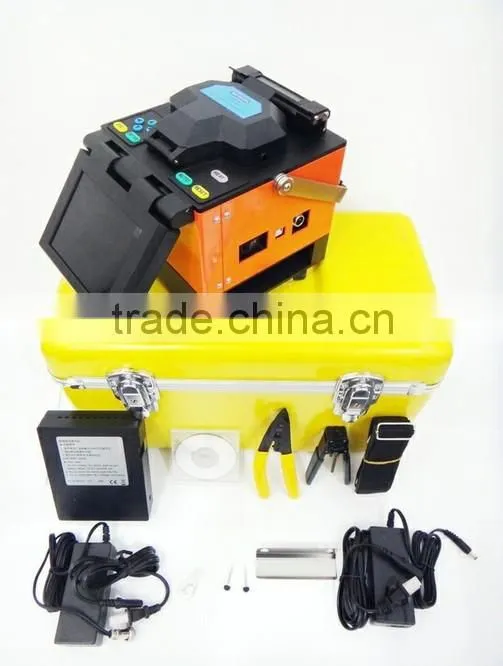

Digital Fusion Splicer Tool Kit Fiber Optical Splicer Machine Set Splicing Machine Kit
US$ 1,500 - 2,500
MOQ: 1 Set
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Optical Splicer Machine Blade Fiber Cutter Splicing Machine AccessoryUS$ 10 - 30MOQ: 5 Pieces -
Fusion Splicer Machine Fiber Cutter Blade Fiber Optic Splicing Machine AccessoryUS$ 10 - 30MOQ: 5 Pieces
-
Fiber Optic Attenuators SC/FC/LC/ST/MU Different dB Female To Female TypeUS$ 0.1 - 100MOQ: 50 Pieces
-
Fiber Optic Patch Cord LC SC/APC ST E2000 MU FC MT-RJ FC/APC Single Mode Multi Mode Pigtail Fiber Optic Jumper CablesUS$ 0.2 - 3MOQ: 200 Pieces
-
Fiber Optic Pigtail With SC/APC FC/APC E2000 SMA DIN LC ST Adaptor Patch Cord CablesUS$ 0.2 - 3MOQ: 200 Pieces
Model Number
MMS009
Fibre Optic Fusion Splicer Machines
Main Features:
L 5 inches high Resolution colorful LCD display, image can be turned according to position
L Average splice time: 10 second
L Average tube-heat time: 30 second
L Lithium battery: 8AH and up to 180 times of continuous splice and heat after fully charged
L Simultaneous X and Y views with 200 times magnification
L Cutting-edge technology for image processing
L New developed technology providing strong wind and dust resistance
L Working mode: Auto & Manual & Full-Automation
L USB Port
L Storing 6, 000 groups of latest splice results.
L Multipurpose optical fiber fixture can be flexible replaced & Various kinds of joint be produced now
L Convenient clamps shift and joint fabrication on site
|
Applicable Fibers |
SM, MM, NZ-DS, EDF AND OTHERS |
|
Average Splice Loss |
0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
|
Return Loss |
≥ 60dB |
|
Tension Test |
2.0N(200gf) ( Standard ) |
|
Splicing Program |
50 groups |
|
Heat-shrinkable T Bush |
20mm, 40mm, 60mm |
|
Language |
Chinese, English |
|
Environmental Conditions |
-10 ~ +50 ° C (operation temperature), 0 ~ 95% RH(humidity), 0 ~ 5000m(altitude) |
|
Power Supply |
AC adaptor: 100 ~ 240V input voltage, 50/60Hz; 12V, 5A output voltage(DC) Battery: 12V voltage 8AH |
|
Dimensions |
155 ( W ) *165 ( D ) *150 ( H ) |
|
Weight |
2.5kg |
Standard Package
|
No. |
Item |
Quantity |
|
1 |
M achine |
1 |
|
2 |
Fiber Cleaver |
1 |
|
3 |
Fiber Stripper |
1 |
|
4 |
AC Adaptor |
1 |
|
5 |
Battery |
1 |
|
6 |
Charger |
1 |
|
7 |
Spare Electrodes |
1 |
|
8 |
Cooling Tray |
1 |
|
9 |
Instruction CD |
1 |
|
10 |
Quick Reference Guide |
1 |
|
11 |
Transit Case with Carrying Strap |
1 |
