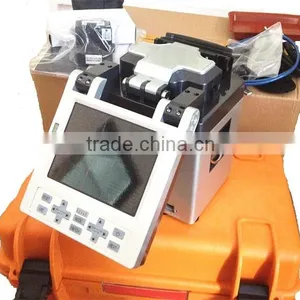

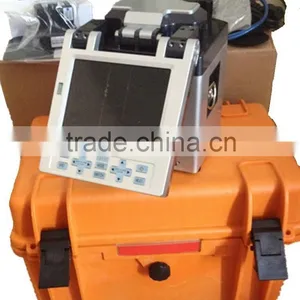

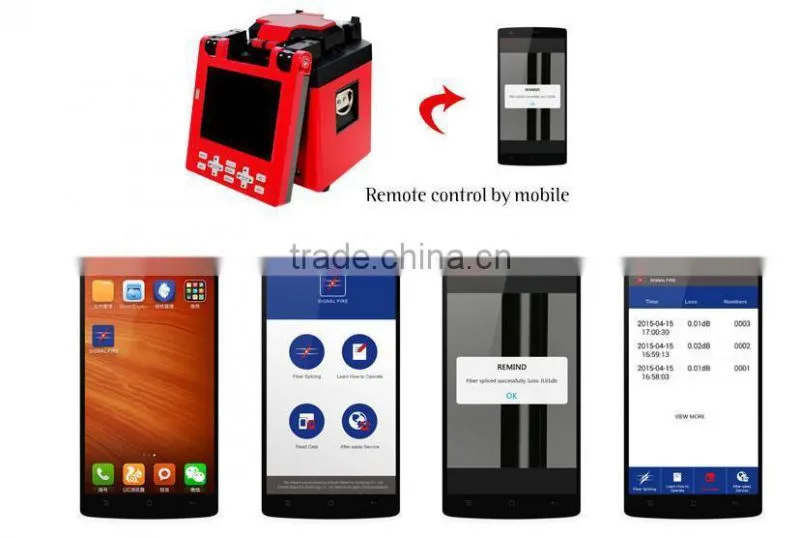

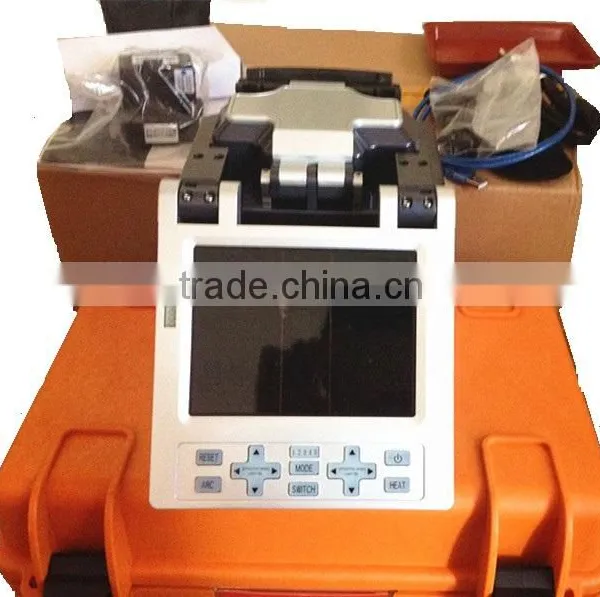

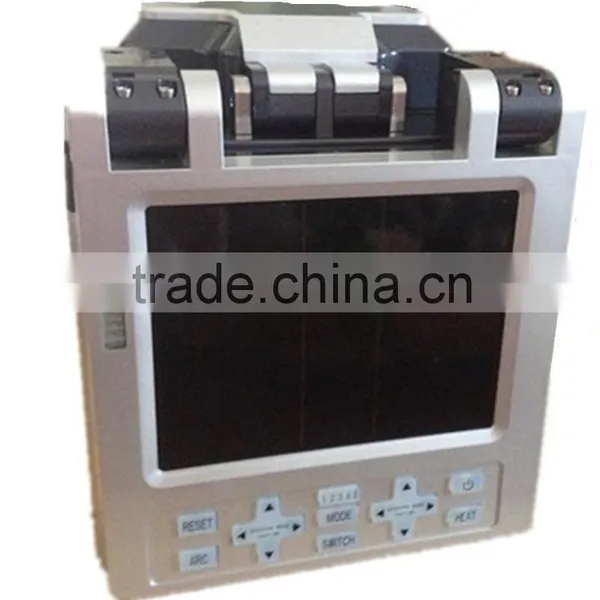

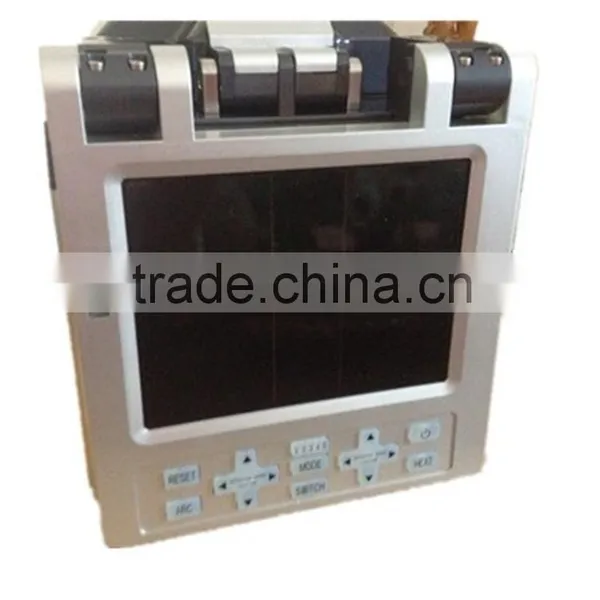

FTTH Fiber Optical Splicer Machine Automatic Fiber Optical Splicer Machine with Mobile Control and Voice Broadcasting loss data cloud storage Functions
Automatic Intelligent Optical Fiber Fusion Splicer Is Widely Used In Optical Fiber Communications, Optical Cable Construction And Maintenance, As Well As Fiber To The Home Project (FTTH). It Releases The Arc To Fusion The Two Fibers, In Order To Achieve The Purpose Of Splicing. Automatic Intelligent Optical Fiber Fusion Splicer Uses Humanized Design, Sophisticated Production Technology With Stable And Excellence Performance.
Typical Splicing Time: 8 Seconds~15 Seconds
1. Typical Heating Time: 30 Seconds~90 Seconds
2. Stable Performance Of Dual Observation, Tune Core Type Fusion Machine
3. Comply With ROHS And WEEE Standard
4.Shockproof, Dustproof, Rainproof
5. Display Magnification: 250 Times (Single Fiber Display)
6. Large Capacity Lithium Battery, You Can Charge It While Splicing, Splicing And Heating Reach To 200 Times With Full Power Charged
7. Long Battery Life, Charging Times Of Up To 300-500 Cycles
8.Bright Low-Power LED Lights, To Ensure Normal Splicing At Low Light Conditions
9. 5.6 Inches LCD Screen, Anti-Reflective Surface With A Transparent Protective Plastic
10. Interface Is Simple, With Humane, Intelligent Menu Design
11. USB Port For Easy Data Download And Software Updates
12.Recessed Wind Cover, Can Perform Splicing At 15M / S Strong Winds
13.Guarantee The Quality Of Splicing With 5000m Altitude
14.High-Accuracy V-Groove, High Precision, Good Abrasion Resistance
| Applicable Fiber | SM, MM, DS, And NZDS (Non-Zero Dispersion Shifted Fiber) |
| Actual Average Loss | 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS) |
| Splicing Time | 8~15s |
| Heating Time | 30~90 Seconds, Typical Heating Time: 30 Seconds (Heat Shrinkable Tube) |
| Fiber Display | X And Y-Axis Independent Display |
| Measurement |
Machine Size:158mmx173mmx186mm Packaging Size:500mmx350mmx320mm |
| Weight | 2.6kg(Net) 8.8Kg(Gross) |
| Display | 5.6 Inches LCD Screen, Anti-Reflective Surface With A Transparent Rotective Plastic |
| Return Loss And Wind Speed | ≥60dB,15m/S |
| Operating Environment | -10-+50℃(Temperature),0-95%(Humidity),0-5000m(Altitude) |
| Data Storage Environment | -40-+80℃Temperature),0-95%(Humidity) |
