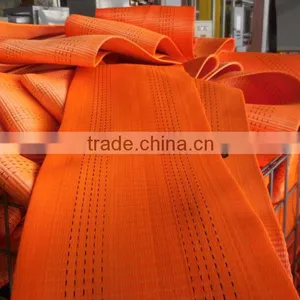

10t polyester lifting web belt slings
Adopting the international high quality synthetic fiber as raw material, flat lifting slings are finished using
different ways of stitch sewing with the most advanced weaving technology and equipment, which can meet
customers' demand of 4, 5, 6, 7, 8 times hoisting belt safety factor, the production scope between 0.5 t - 100 t.With the international standard color to distinguish different carrying capacity, can also according to the
bandwidth to distinguish.When lifting, harm the suspended surfaces will not.
According to the different hoisting environmental requirements, can be divided into: regular, fire prevention,
fluorescent type, high strength, acid resistance, wear-resisting, oil-repellent waterproof model and other
products series.
Feature
1)Ply:Single ply or double ply
2)Length:As Customer Required
3)MOQ:1000M
4) 100% high tenacity polyester
5) Single ply or double ply
6) Low elongation
7) Safety factor available 5: 1 6: 1 7: 1 8: 1
8) According to EN1492-1 2000
9) Working load limit from 1 ton to 25 ton
10) Webbing width different working load,
11)Indication of working load limits (WLL) By color, number of stripes and printing on sling and label
12) Certificate: GS, CE
Specificatin of polyester webbing sling
Colour |
colour coded according to DIN-EN1492-1 |
Straight lift |
Choked lift |
Lift in different angle |
Straight lift up to |
||
|
1 |
0.8 |
2 |
1.4 |
1 |
1.4 |
|
Purple |
EB-A1T |
1000 |
800 |
2000 |
1400 |
1000 |
1400 |
Green |
EB-A2T |
2000 |
1600 |
4000 |
2800 |
2000 |
2800 |
Yellow |
EB-A3T |
3000 |
2400 |
6000 |
4200 |
3000 |
4200 |
Gray |
EB-A4T |
4000 |
3200 |
8000 |
5600 |
4000 |
5600 |
Red |
EB-A5T |
5000 |
4000 |
10000 |
7000 |
5000 |
7000 |
Brown |
EB-A6T |
6000 |
4800 |
12000 |
8400 |
6000 |
8400 |
Blue |
EB-A8T |
8000 |
6400 |
14000 |
11200 |
8000 |
11200 |
Orange |
EB-A10T |
10000 |
8000 |
16000 |
14000 |
10000 |
1400 |
Orange |
EB-A12T |
12000 |
9600 |
20000 |
16800 |
12000 |
16800 |
Remark: Sling eye is divided into flat eye, reverse eye, eye folded 1/2 from one side, eye folded 1/2 from two sides and eye folded 1/3.

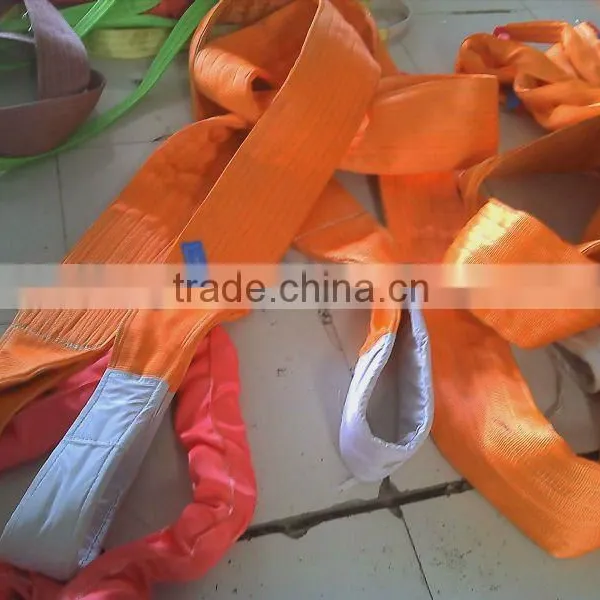

Eye information

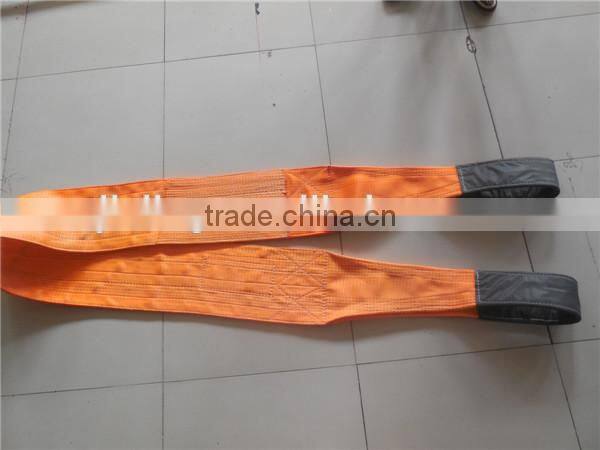

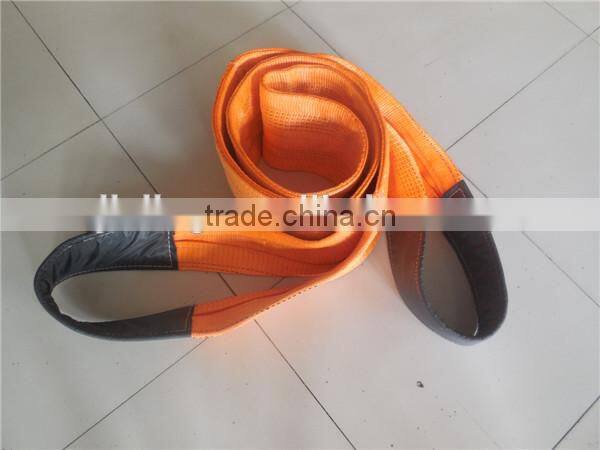

Flat eye, Reversed eye, Folded eye 1/2 width from side, Folded eye 1/2 width from two sides, Folded eye 1/3 width. Eye-eye webbing sling is one of the most popular webbing sling, made into single, duplex, three,
and four players.
B, Endless Flat Webbing Sling
a, Single-ply Endless Flat Webbing Sling
b, Double-ply Endless Flat Webbing Sling
c, Three-ply Endless Flat Webbing Sling
d, Four-ply Endless Flat Webbing Sling
Caution
(1)Do not use a damaged sling
(2)In the process of lifting, Do not twist slings
(3)Do not let the slings tied in a knot
(4)Avoid the overload of work
(5)When moving slings, do not pull slings
(7)Each slings before use must be carefully cheked
(8)Polyester has the function of resistance to inorganic acids,But Easy to damage of organic acids
(9)If you use the slings in high temperature or chemical pollution conditions,Should seek advice from
suppliers.

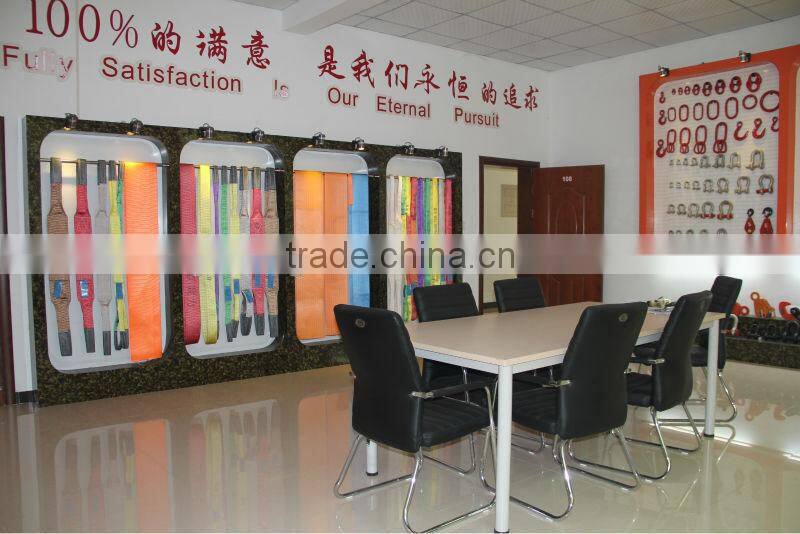

Qingyuan JILI is a professional manufacturer for design and produce sling, rigging and related
accessories which used in crane. With many years of experience, Qingyuan JILI is still engaged in
research & development, design, produce, sales and after-sales service.

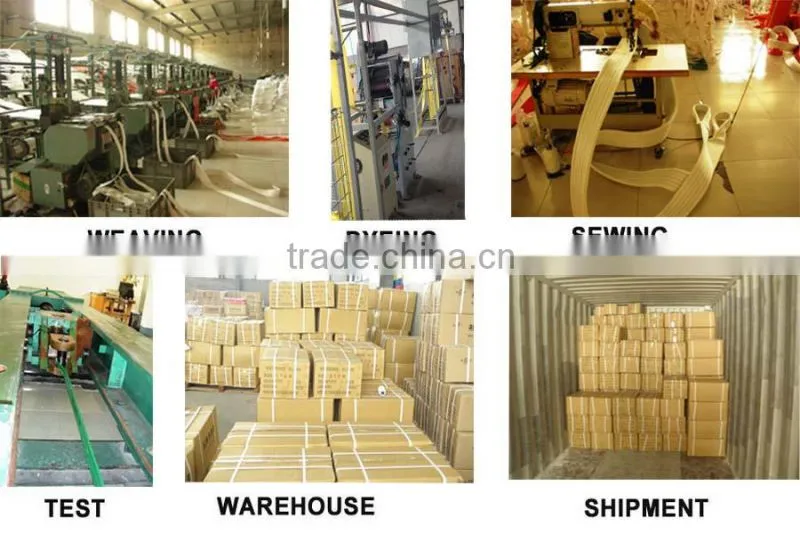

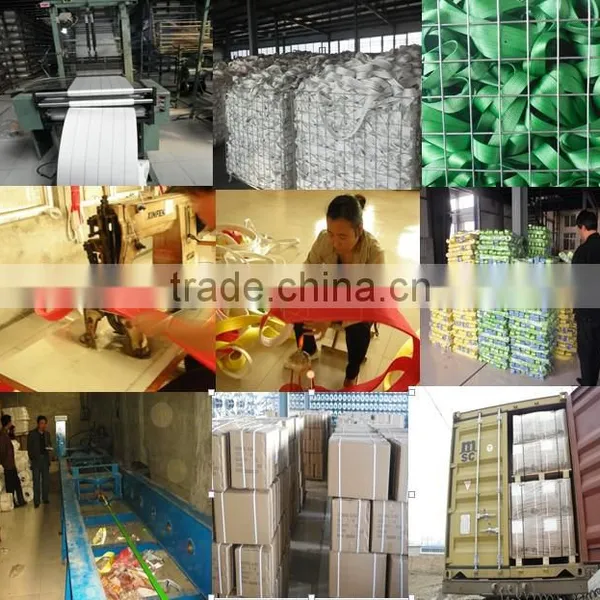

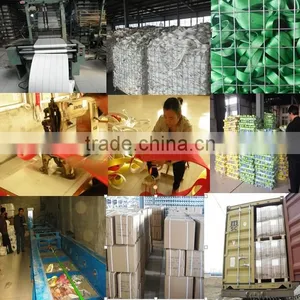

produce process
certifications

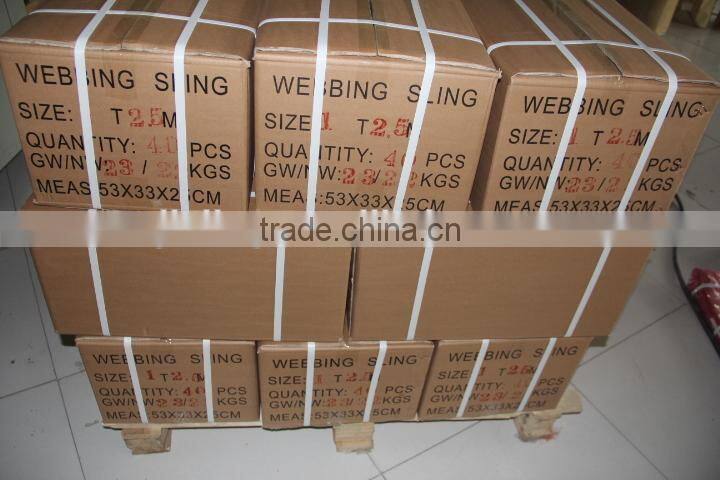

1.every slings packed in PE films,then usually pack them in the carton.
2.special packing and logo as buyer's request.
3.carton size:53cm*33cm*25cm

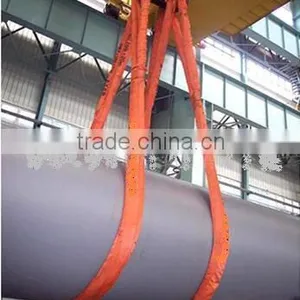

1.Steel pipe, Steel wire, Steel plate
2.Various machineries and parts
3.Cement products, glass products, rubber products, wooden products, plastic products, paper products
4.Pipe laying, plumbing

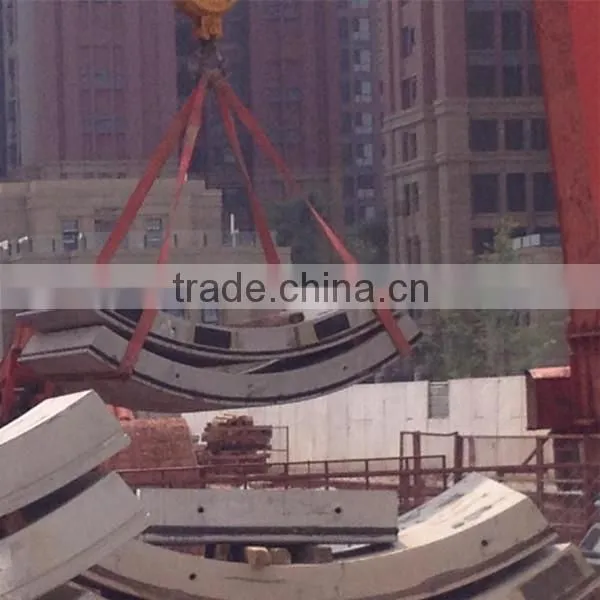

5.Tree planting, Stone handling, construction and public works.
1.When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call
us by 86-574-27613358 or tell us by E-mail,so that we will regard your inquiry as the first priority.
2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.
3.What kind of files do you accept for printing?
AI, PDF, CorelDRAW, high resolution JPG
4.Can you do the design for us?
Yes. We have a professional team with rich experience in packaging box design and manufacturing. We can
manufacture the products as per your requirements.
5.How long can I expect to get the sample?
It will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 days.
You can use your own express account or prepay us if you do not have an account.
6.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ
is about 30 days. Generally speaking, we suggest that you start inquiry two months before the date you
would like to get the products at your country.
7.What is your terms of delivery?
We accept FOB, CIF, etc. You can choose the one which is the most convenient or cost effective for you.
For further information, Pls feel free to contact us or visit our website.
1.Client
We treasure and try to understand all the different needs of our clients and seek to forge a long term
professional relationship with them. The satisfaction of each and every customer is our main goal and
motivation in conducting our business.
2. People
We work as a team and treat each other with respect. Our solid, capable and knowledgeable team is
valued as the greatest asset and an integral part of the business.
3. Product
Our products are of HIGH quality standards and always come with certificate of compliance by the
manufacturers.
4. Performance
We aim to achieve high level of performance and satisfaction to both our client and people.
5. Free sample and OEM service
We can provide free samples to you and we also have OEM service, we can put your logo on the label
and the information you need on the webbing too.
MOQ |
500 pieces |
Sample |
Sample lead time:2-7 days is available |
|
Sample is free ,but the cost of shipping must on the buyer’s side |
Packing detail |
53mm*33mm*25mm Carton |
|
Special packing and logo as buyer’s request |
|
N.W: KGS G.W: KGS |
Delivery time |
About 30days after receiving the remittance |
Delivery Clause |
Fob Tianjin or as buyer’s require |
Maintenance Methods
1.Don't drag when moving webbing sling and goods,do not make the knot.
2.Shouldn't make any possible damage to saft ring.
3.In undertaking,which would be playing screw.
4.Shouldn't be used without a jacket straps.
5.Should avoid soft ring opening angle more than 20 degrees.
6.webbing sling should be kept in the dark and no ultraviolet radiation conditions.
7.Webbing sling shouldn't be kept in open flame near side or other heat sources.
8.Webbing sling should be placed at the place with enough light when you don't use.
If you are interested in our polyester webbing sling,contact us.
How to order ?
1.We need to know the size,quantity and others for webbing Sling , cargo lashing or other you required.
2.Discuss all details with you and make the sample if needed.
3.Start the mass production after getting your payment(deposit).
4.Send goods to you.
5.Receive the goods in your side.
