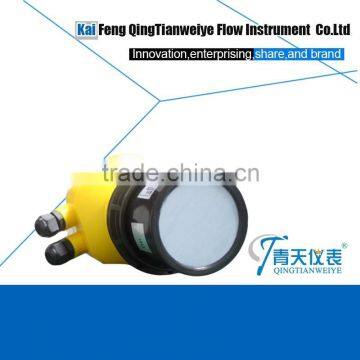

High Quality Ultrasonic Water Level Meter
US$ 301 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
qtyb
Model Number:
QTUL
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Non-contact Ultrosonic Oil Level SensorUS$ 301 - 5,000MOQ: 1 Set -
Ex-proof Two Wire Non-contact Ultrasonic Level MeterUS$ 301 - 5,000MOQ: 1 Set
-
Ex-proof Ultrosonic Non-contact Level SensorUS$ 301 - 5,000MOQ: 1 Set
-
4-20mA Ultrasonic Two Wire Level IndicatorUS$ 301 - 5,000MOQ: 1 Set
-
Plastic Ultrasonic Portable Level IndicatorUS$ 301 - 5,000MOQ: 1 Set
Place of Origin
Henan, China
Brand Name
qtyb
Model Number
QTUL
High quality ultrasonic water level meter
Use
Liquid level or material level measurement.
Application
This series is compact type ultrasonic level meter for continuous non-contact level measurement in liquids and solids. It's widely applied to the metallurgical, water treatment, chemical, electricity and oil industries.
Features
- Integrated design, installed conveniently;
- Protected in the excessive voltage and current , protected in the thunder and lightning;
- The big show window of LCD is easy to debug and observe;
- Over-voltage over-current protection, lightning protection;
- Advanced since the clamp type terminal, to ensure that wiring never loose;
- Intellectual signal treatment technology, guarantee that the instrument meets various kinds of operating occasion;
- All plastic probe, acid and alkali resistant, adapt to bad environment;
| Power supply | DC24V (±10%) 30mA | Cable diameter | Φ 6 ~ Φ12 mm | |||
| Display | 4 digit LCD | Single wire diameter | Φ0.5 ~ Φ1.78 mm |
|||
| Display resolution | 0.03% of the actual range | Testing cycle | 1.5 seconds | |||
| Output current | 4-20mA | 5º(3db) for range | 12m 20m 30m | |||
| Output load | 0-500Ω | 10º(3db) for range | 4m 6 m 8m | |||
| Temperature range |
-40 ℃~75℃ | Cover material | Aluminum | |||
| Pressure range | ±0.1MPa (press definitely) | The sensor material | ABS/PVC/PTFE | |||
| Temperature compensation |
full range and automatic | Protect grade | IP67 | |||
|
Measuring range (Liquid)(m) |
4.00 | 6.00 | 8.00 | 12.00 | 20.00 | 30.00 |
| Blanking distance(m) | 0.20 | 0.25 | 0.30 | 0.50 | 0.80 | 1.2 |
| Display resolution | 1mm | 1mm | 1mm | 1cm | 1cm | 1cm |
<tr > P Standard Type(Non ex-proof)
I Intrinsically safe (Exia IIB T6 Ga)
| PLUT | |||||||
| Measure range(m) | |||||||
| 4 | 6 | 8 | 12 | 20 | 30 | ||
| License | |||||||
| Energy Transducer Material/Process Temperature/Protection Grade | |||||||
| A ABS/(-40-75)℃/IP67 B PVC/(-40-75)℃/IP67 C PTFE/(-40-75)℃/IP67 | |||||||
| Process Connection/Material | |||||||
| G Thread D Flange | |||||||
| Electronic Unit | |||||||
| 2 4~20mA/24V DC Two Wire 3 4 20mA/24V DC Four Wire 4 4 20mA/220V AC Four Wire 5 4 20mA/24V DC /HART Two Wire 6 4 20mA/24V DC /HART Four Wire 7 4 20mA/220V DC /HART Four Wire Y Special custom | |||||||
| Shell / Protection Grade | |||||||
| L Aluminum / IP67 G SS304 / IP67 | |||||||
| Cable Entry | |||||||
| M M20*1.5 N 1/2'' NPT | |||||||
| Programmer/Display | |||||||
| A With Display B Without Display | |||||||
