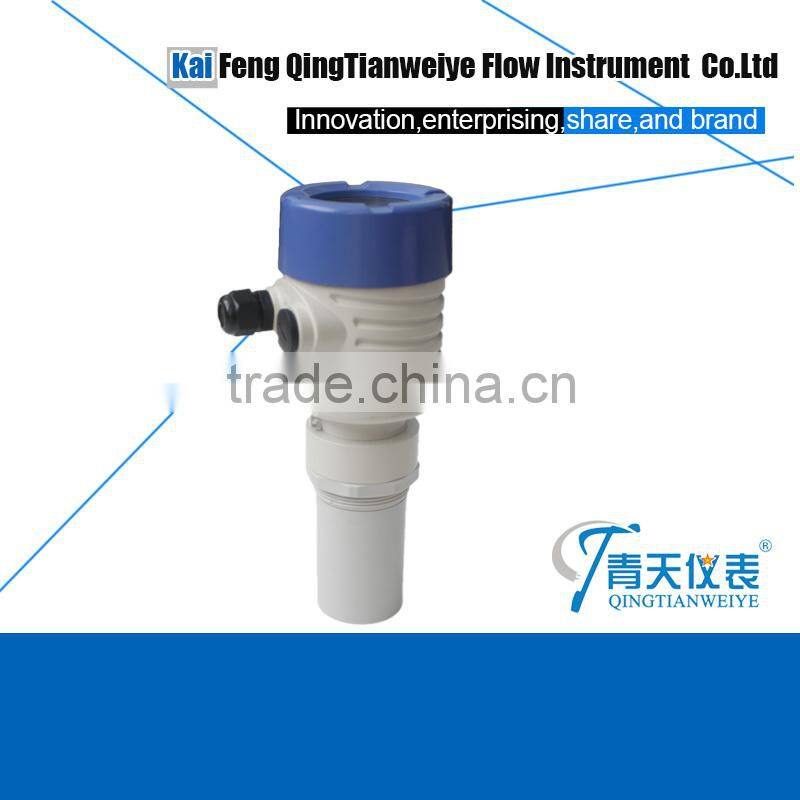

High Quality 4 Relay Ultrasonic Level Meter
US$ 301 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
qtyb
Model Number:
QTUL
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4 Relay Remote Ultrasonic Level MeterUS$ 301 - 5,000MOQ: 1 Set -
20m Split Enhanced Ultrasonic Flow MeterUS$ 301 - 5,000MOQ: 1 Set
-
Enhanced Remote Ultrasonic Flow MeterUS$ 301 - 5,000MOQ: 1 Set
-
4-20mA Water Ultrasonic Level MeterUS$ 301 - 5,000MOQ: 1 Set
-
Brand New Ultrasonic Level TransmitterUS$ 301 - 5,000MOQ: 1 Set
Place of Origin
Henan, China
Brand Name
qtyb
Model Number
QTUL
High quality 4 relay ultrasonic level meter
Use
Liquid level or material level measurement.
Application
This series is compact type ultrasonic level meter for continuous non-contact level measurement in liquids and solids. It's widely applied to the metallurgical, water treatment, chemical, electricity and oil industries.
Features
- Integrated design, installed conveniently;
- Protected in the excessive voltage and current , protected in the thunder and lightning;
- The big show window of LCD is easy to debug and observe;
- Over-voltage over-current protection, lightning protection;
- Advanced since the clamp type terminal, to ensure that wiring never loose;
- Intellectual signal treatment technology, guarantee that the instrument meets various kinds of operating occasion;
- All plastic probe, acid and alkali resistant, adapt to bad environment;
| Power supply | DC24V (±10%) 30mA | Cable diameter | Φ 6 ~ Φ12 mm | |||
| Display | 4 digit LCD | Single wire diameter | Φ0.5 ~ Φ1.78 mm |
|||
| Display resolution | 0.03% of the actual range | Testing cycle | 1.5 seconds | |||
| Output current | 4-20mA | 5º(3db) for range | 12m 20m 30m | |||
| Output load | 0-500Ω | 10º(3db) for range | 4m 6 m 8m | |||
| Temperature range |
-40 ℃~75℃ | Cover material | Aluminum | |||
| Pressure range | ±0.1MPa (press definitely) | The sensor material | ABS/PVC/PTFE | |||
| Temperature compensation |
full range and automatic | Protect grade | IP67 | |||
|
Measuring range (Liquid)(m) |
4.00 | 6.00 | 8.00 | 12.00 | 20.00 | 30.00 |
| Blanking distance(m) | 0.20 | 0.25 | 0.30 | 0.50 | 0.80 | 1.2 |
| Display resolution | 1mm | 1mm | 1mm | 1cm | 1cm | 1cm |
<tr > P Standard Type(Non ex-proof)
I Intrinsically safe (Exia IIB T6 Ga)
| PLUT | |||||||
| Measure range(m) | |||||||
| 4 | 6 | 8 | 12 | 20 | 30 | ||
| License | |||||||
| Energy Transducer Material/Process Temperature/Protection Grade | |||||||
| A ABS/(-40-75)℃/IP67 B PVC/(-40-75)℃/IP67 C PTFE/(-40-75)℃/IP67 | |||||||
| Process Connection/Material | |||||||
| G Thread D Flange | |||||||
| Electronic Unit | |||||||
| 2 4~20mA/24V DC Two Wire 3 4 20mA/24V DC Four Wire 4 4 20mA/220V AC Four Wire 5 4 20mA/24V DC /HART Two Wire 6 4 20mA/24V DC /HART Four Wire 7 4 20mA/220V DC /HART Four Wire Y Special custom | |||||||
| Shell / Protection Grade | |||||||
| L Aluminum / IP67 G SS304 / IP67 | |||||||
| Cable Entry | |||||||
| M M20*1.5 N 1/2'' NPT | |||||||
| Programmer/Display | |||||||
| A With Display B Without Display | |||||||
