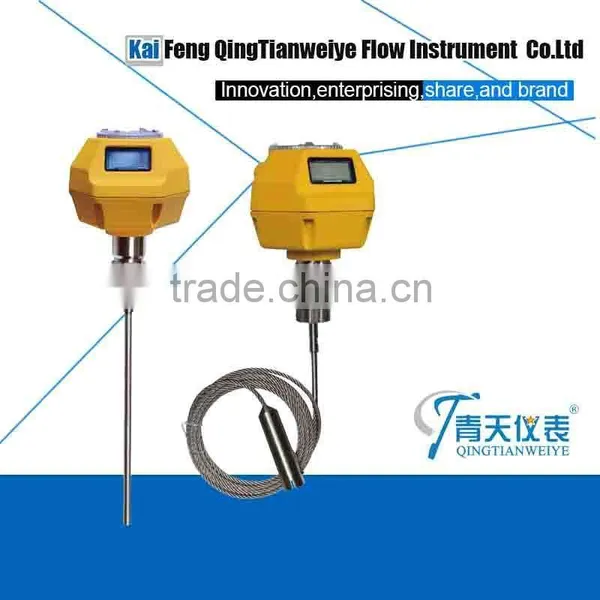

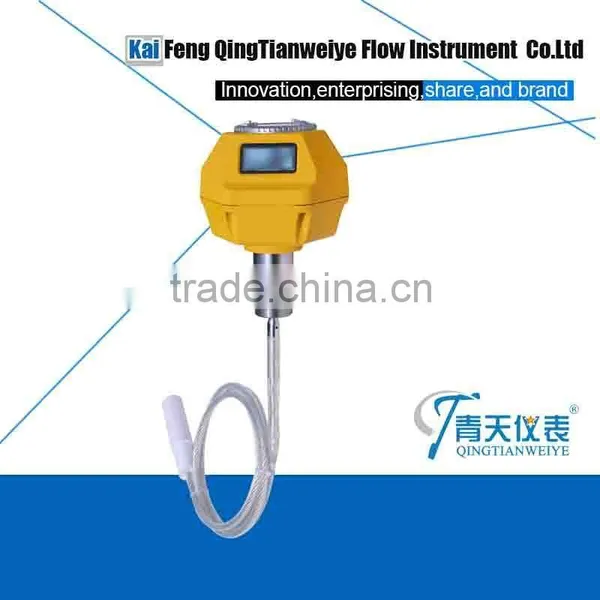

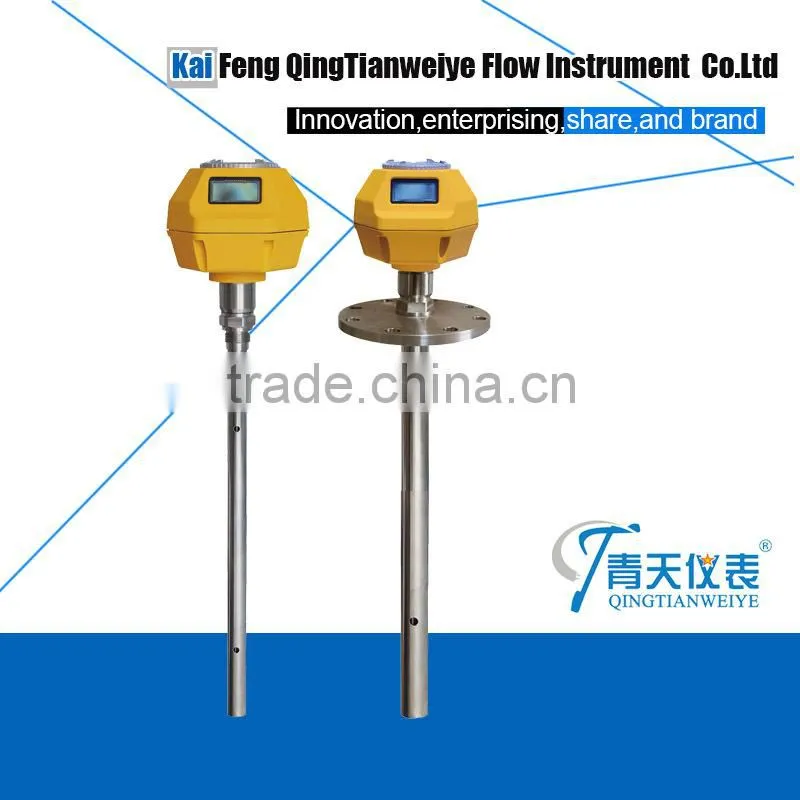

Kaifeng Qingtian guided wave radar meter
Application
Used for solid,powder,grain bin,oil/ fuel/water/powder tank, liquid ,mineral , milk/ milky body, melt,etc.
Product description
Radar Level Gauge is a liquid (material) level recording instrument in the measurement.
The microwave pulse is sent by the antenna,and then is reflected by the material surface , then is received by the radar systems.
Then is sent to the electronic circuit, the microprocessor can identify the microwave pulse echo regenerate the material or the surface of the liquid.
The correct signal is done by intelligent software, up to millimeter accuracy, nonapplicable harsh
environments.
Character
a. Non-contact measurement.
b. Applicable in the measurement of the solid and liquid.
c. Ease of installation, commissioning, maintenance-free.
d. Can be measured under vacuum conditions.
e. Wide measuring range and pressure range.
f. An explosion-proof design is safer.
g. Can be equipped with special software component systems.
Parameters
Application |
suitable for powdered materials, solid particles, the massive material measurement |
Measuring range |
35 meters |
process connection |
universal flange/ Thread |
Medium temperature |
- 40-250 °C |
process pressure |
min -0.1MPa,max 4MPa |
Accuracy |
< 0.1% |
Frequency range |
26GHz or 6.8 GHz |
signal output |
4... 20 mA ,HART,RS485
|
Explosion-proof/protection grade |
Exia IIC T6 / IP67
|
1.Products Minimum Order
We supply if only one set needed to help some new clients try our products.
2.Trade Terms Accept:
EXW( EX Works),FOB(Free on Board), FCA(Free Carrier),C&F(Cost and Freight),CIF(Cost Insurance and Freight),CIP(Carriage and Insurance Paid to)
3.Payment Terms:
100% T/T in advance,L/C,D/P,Western Union and Paypal
4.Products HS Mode:
Level and flow measuring instruments’ HS code is 902610000.
5.Shipping Mode:
By sea,by air,or by express
6.Do your products have stock?
Some products we have stock,but some products like radar level guage are produced on clients special requirements,so dont have stock.
7.For the products which not stock,what is the production time?
It depend on your order quantity and ordering time(Peak period or slack season). If quantity less than 10 pcs,usually only 5-6 days.
