Home > Instruments & Meters > Meter for Liquid & Gas > Liquid Level Meter > High Quality Radar Level Sensor

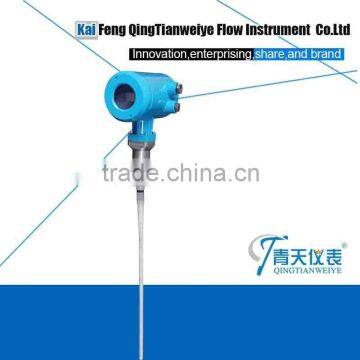

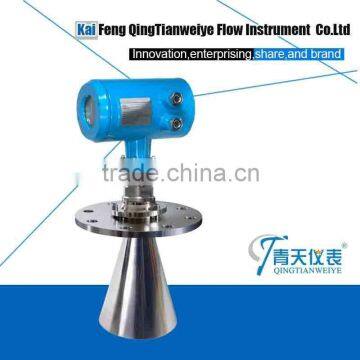

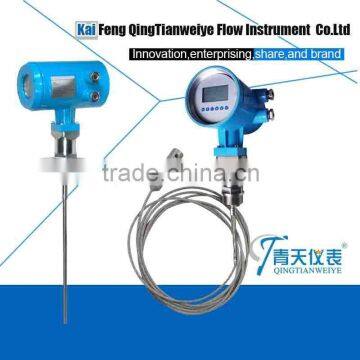

High Quality Radar Level Sensor
US$ 301 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
qtyb
Model Number:
QTRD
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Tianjing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Radar Level IndicatorUS$ 301 - 5,000MOQ: 1 Set -
Radar Level SensorUS$ 301 - 5,000MOQ: 1 Set
-
High Frequency Radar Level Meter From QingtianUS$ 499 - 499MOQ: 1 Set
-
Qingtian High Pressure Radar Level Meter With Multi OptionUS$ 499 - 499MOQ: 1 Set
-
Kaifeng Qingtian Digital Level MeterUS$ 399 - 1,599MOQ: 1 Piece
Place of Origin
Henan, China
Brand Name
qtyb
Model Number
QTRD

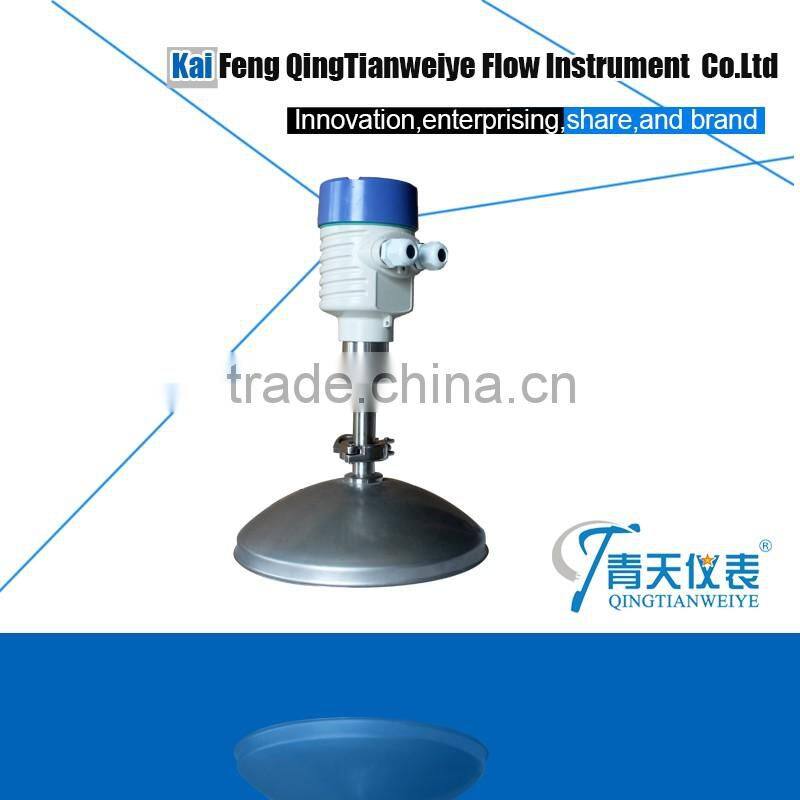

High quality radar level sensor
Introduction
This series of radar level meter adopted 26G high frequency radar sensor, the maximum measurement range can reach up to 70 meters. Antenna is optimized further processing, the new fast microprocessors have higher speed and efficiency can be done signal analysis, the instrumentation can be used for reactor, solid silo and very complex measurement environment.
Features
- Small antenna size, easy to install; Non-contact radar, no wear, no pollution.
- Almost no corrosion, bubble effect; almost not affected by water vapor in the atmosphere, the temperature and pressure changes.
- Serious dust environment on the high level meter work has little effect.
- A shorter wavelength, the reflection of solid surface inclination is better.
- Beam angle is small, the energy is concentrated, can enhance the ability of echo and to avoid interference.
- The measuring range is large. A good measuring result will be got in the measuring process.
- High signal-to-noise ratio, the level fluctuation state can obtain better performance.
- High frequency, measurement of solid and low dielectric constant of the best choice.
Radar level transmitter antenna microwave pulse is narrow, the downward transmission antenna. Microwave exposure to the medium surface is reflected back again by the antenna system receives, sends the signal to the electronic circuit automatically converted into level signals (because the microwave propagation speed, electromagnetic wave to reach the target and the reflected back to the receiver this time is almost instantaneous).
| Model | Suitable for Medium | Measuring Range (meters) |
Temper- ature |
Connection | Process Pressure | Measure- ment Precision |
Other |
||
| 701 | Liquid, solid powder | 30 | -40℃ ~ 250℃ | Flange(optional)/ Thread |
-0.1 ~ 4.0 MPa | ±10mm |
Explosion-proof Grade: Exia IIC T6 Ga The signal Output:(4 ~ 20) mA/HART (Two wire/Four)RS485/Modbus The Scene Display:4- digital LCD Shell :Aluminum |
||
| 703 | Solid powder | 30 | -40℃ ~ 150℃ | Flange (optional) / Thread | -0.1 ~ 4.0 MPa | ±3mm | |||
| 803 | Liquid | 35 | -40℃ ~ 250℃ | Flange (optional) | -0.1 ~ 4 MPa | ±10mm | |||
| 804 | Solid particles or block material | 35 | -40℃ ~ 250℃ | Universal Flange | -0.1 ~ 0.1 MPa | ±20mm | |||
| 901 | All kinds of corrosive liquid | 10 | -40℃ ~ 120℃ | Flange(optional)/ Thread |
-0.1 ~ 0.3 MPa | ±5mm | |||
| 902 | Liquid | 30 | -40℃ ~ 150℃ | Flange (optional) / Thread | -0.1 ~ 4.0 MPa | ±3mm | |||
| 905 | Solid particles,Powder | 30 | -40℃ ~ 250℃ | Thread, Flange | -0.1 ~ 4.0MPa | ±10mm | |||
