YG6 tunsgten carbide steel ball
Name of the product |
YG6 tunsgten carbide steel ball |
Material |
YG6 , YG6X , YG8 , YG8X , YG10 tungsten carbide , Steel,Carbon steel , chrome steel, Stainless steel ball |
Dimensions: |
Dia.17mm-150mm(0.75''-6'') forged grinding ball |
Broken rate: |
<0.5% forged steel grinding balls |
Hardness |
HRA89,91,92 hard metal valve ball |
Applications |
Mine,Ball Mill,Cement Plant,Power Stations,ect |
Packing |
Medal Drum /Export Bag/Carton or according to customers' requirements |
MOQ |
1000pcs cast grinding ball tools parts |
Payment |
T/T, D/A, L/C, D/P ,western union for forged grinding ball |
Deliveryof time |
10 - 15 days after receiving the advance payment |

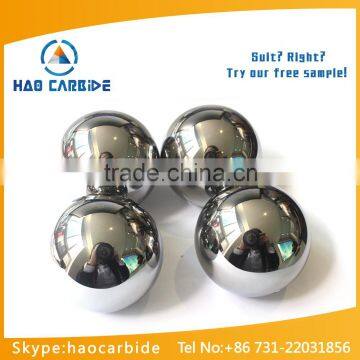

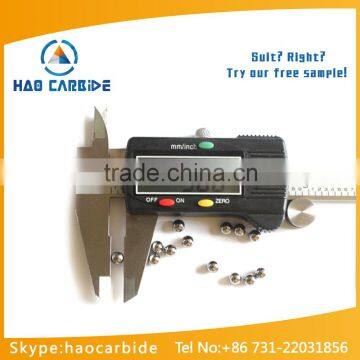

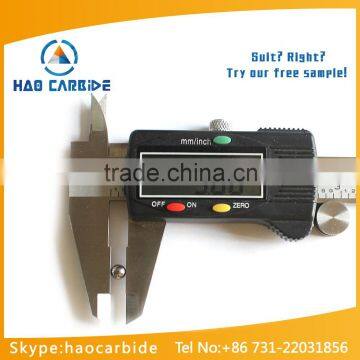

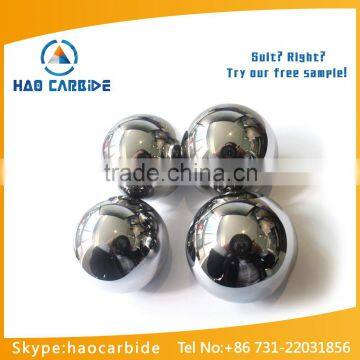

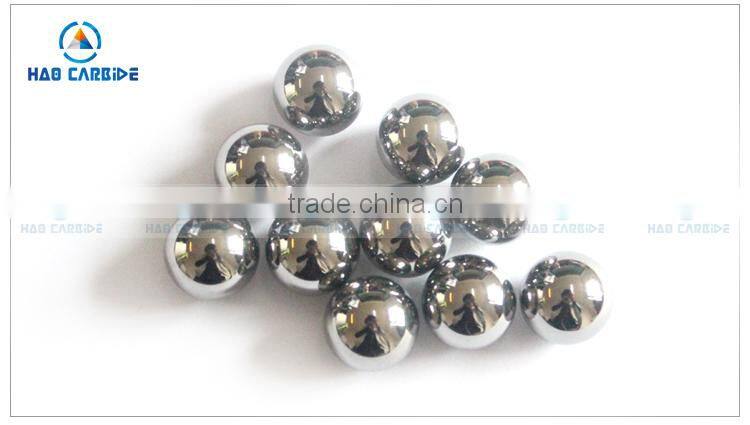

More detailed pictures of Tungsten carbide grinding ball :
Usage of tungsten carbide grinding ball
1. grinding carbide ball are widely using in high-tech area, such as precision bearing, instrument, ball-pen,water pump,seal valve etc.
2. After accurate grinding and polishing, the frictional factor of surface is very low.
3. Made by primary raw material, good abrasive resistance. It is suitable for making ball-bearing and seat valve.
Data sheets of foundry grinding ball
| Note: Product can be customized, OEM/ODM is avaliable. The data sheet is for your referance. | |||||||
| Grade | WC+ | CO+ | Hardness | Density | T.R.S | Metallographic analysis | Application |
| HRA | g/m3 | MP α | |||||
| YG6 | 94% | 6% | 91 | 14.6~15.0 | 1700 | A02B02C02 | widely used in all kinds of hardware industry, valve, bearing, die casting, punching, grinding, measurement. |
| YG6X | 94% | 6% | 92 | 14.6~15.0 | 1450 | A02B02C02 | widely used in all kinds of hardware industry, valve, bearing, die casting, punching, grinding, measurement, chemical industry, petroleum, military |
| YG8 | 92% | 8% | 89 | 14.4~14.8 | 1800 | A02B02C02 | widely used in valves, bearings, die casting, punching, grinding, measurement, hardness tester, petroleum, chemical industry, aeronautics and astronautics. |
Other types of tungsten carbide ball grinding carbide ball can be offered according to customers' requirement.
Cemented carbide Products in Jingzuan:
- Tungsten Carbide Bars / Rods / Strips / Plates
- Tungsten Carbide Studs / Tip teeth / Burrs / Buttons
- Tungsten Carbide Cutting Tools / Milling Tools
- Tungsten Carbide Mould / Die
- Tungsten Carbide Balls / Ball Mill Jar
- Tungsten Carbide Saw Blade Cutter / Cutter Heads
- Tungsten Cemented Carbide Products
Main products (yg6 carbide grinding ball, tungsten carbide rods, carbide flat, tungsten carbide dies, knife sharpener, carbide buttons , brazed tipsand etc):
|
|
|
|
|
|
|
|
All the high hardness tungsten carbide grinding ball must be inspected strictly with the ultrasonic and only those haven’t any harm such as pore can be shipped out.
We can supply grinding ball and tungsten carbide ball grinding with high precision. With high corrosion and wear resistance
, and high strength and temperature resistant, our valve ball (tungsten carbide pellets) and seat export to many countries.
Zhuzhou JingZuan Carbide Co., Ltdis a professional manufacturer of tungsten carbide tools, with a wide range of products including carbide strobe blanks, tungsten carbide alloy ball, carbide rods, carbide dies, carbide slitting saws, coated inserts, end mills and many customized products. With a large selection of carbide grades for woodworking, metal working and working of composite materials, we also provide carbide materials for your special use.
For more informations for grinding ball , do contact with me. No matter by Email, by trademanager, by enquiry, by Skype and etc is ok.
Sales: Ms.Bigel Wu
Skype: haocarbide
Tel: 86 731 22031856
Mob: 86 15273315755
Email: bigel(at)
