Tungsten carbide drill buttons bit, button rock drill bit 76mm tungsten carbide button bits

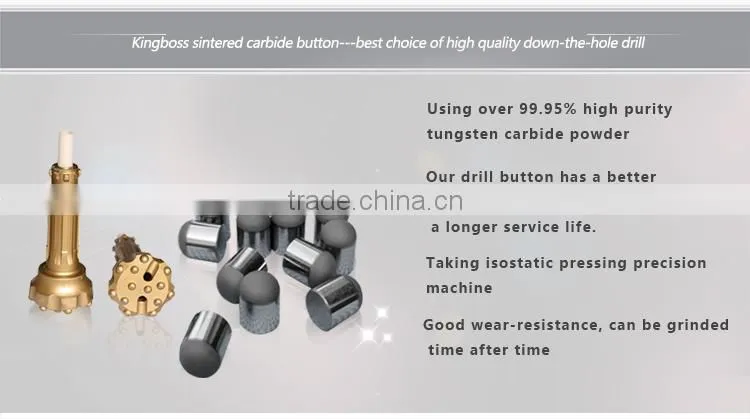

[The features of Chinese tungsten carbide drill buttons]
1.The tungsten content is as high as 99.95% or more , the strength and hardness is both excellent.
2. The high precision cemented carbide drill buttons density is uniform.
3. With excellent wear resistance, can be used repeatedly.
4. It has good impact toughness, and faste speed of drilling and digging .
5.After fine grinded in centerless grinding machine, precise size, welding firmer,and the tooth is not to drop.
6. Long service life.
7.The ball tooth drill head passivation using cycle is long, is conducive to saving auxiliary working hours, physical labor and reduce workers to speed up the project..
grade |
WC content |
Co content |
Density (g/cm3) |
Hardness (HRA) |
TRS (MPA) |
YG8 |
92% |
8% |
14.6-14.9 |
>89.5 |
>1840 |
YG6 |
94% |
6% |
14.7-15.1 |
>89.5 |
>1670 |
YG6X |
93.5% |
6% |
14.8-15.1 |
>91 |
>1560 |
YG8C |
92% |
8% |
14.5-14.9 |
>87.5 |
>2000 |
| Grade | physical & mechanical properties |
Applications recommended |
|||
| Premium Grade |
Supplemental Grade |
Desnity g/cm³ |
Hardness HRA |
TRS N/mm³ |
|
| YK05 | 14.80-14.96 | 90.1 | 2600 | It is mainly used for making small and mediumsized buttons to be used in tri-cone and percusive drill bits for drilling soft and medium hardrock formations and it can also be used for cemented carbide inserts for other drilling bits | |
| YK10 | 14.60-14.76 | 88.8 | 2500 | ||
| YK15.1 | 14.60-14.90 | 87.5 | 2700 | ||
| YG8C | 14.50-14.90 | 87.5 | 1815 | ||
| YK20.1 | 14.4-14.6 | 88.5 | 2900 | it is mainly used for buttons to be used in tricone drill bits and percussive buttones bits for drilling medium hard and hard rock formations and it cam also be used for cemented carbide inserts for other drilling bits | |
| YRK10 | 14.4-14.90 | 88.5 | 2800 | ||
| YK25 | 14.30-14.7 | 87.6 | 3000 | ||
| YK25.1 | 14.40-14.56 | 88.2 | 2800 | ||
| YK30 | 14.32-14.46 | 87.7 | 2600 | it is mainly used for making cemented carbide buttons in tri-cone and percussive drill bits for drilling hard and super hard rock formations and it can also be used for inserts for other drilling bits | |
| YG11C | 14.10-14.50 | 87.9 | 2900 | ||
| YK50 | 13.90-14.20 | 85 | 2900 | ||
Q:What is tungsten carbide ?
A:tungstencarbide is a hard material used in machining tough materials such as carbon steel or stainless, as well as in situations where other tools would wear away, such as highquantity production runs.Most of the time, carbide will leave a better finish on the part, and allow faster machining. Carbide tools can also withstand higher temperatures than standard high speed steel tools.
Q: Which grades are useful in earth drilling or boring applications?
A: In many respects the characteristics of the grades employed for earth drilling and boring represent a compromise between the characteristics that are important for metal cutting and those that are important for metal forming applications. Grades for earth drilling and boring must possess the highest toughness levels for any given abrasion resistance level, while simultaneously possessing adequate strength levels. The best compromise is usually arrived at by using grades that are based on coarse grain sizes (3 to 8 mm) and relatively low Co levels (6 to 16 wt. %).
[About Us]

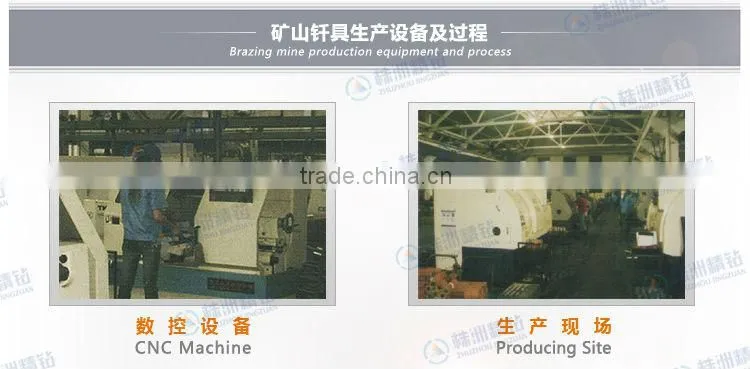

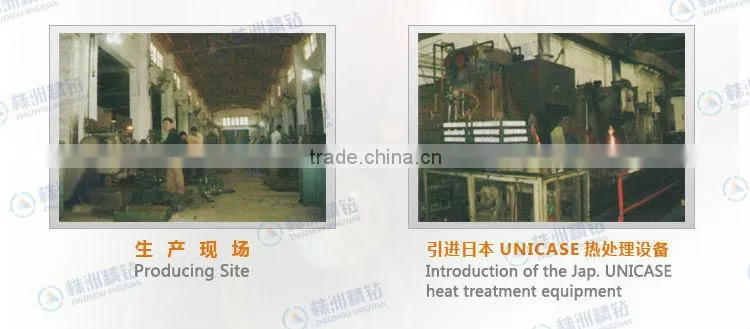

Zhuzhou JingZuan Carbide Co., Ltd is the only modern high-tech enterprises who concentrates on reseaching, developing producing and selling grade A of GB advanced tungsten carbide products.With high-purity cemented carbide podwer, high-precision equipment and seven levels strict quality test system, These features make our products superior than other products,so that ourproducts are exported to southeast Asia and the Americas and enjoy a high popularity in those markets.
[Any question or requirement, please contact us]
Mr.Larry
Skype: larry1234435
What app: 0086 139 7538 0270
Mob: 0086 139 7538 0270
Email: larry(at)
Mr.Larry at your service!
Send Inquiry to This Supplier
