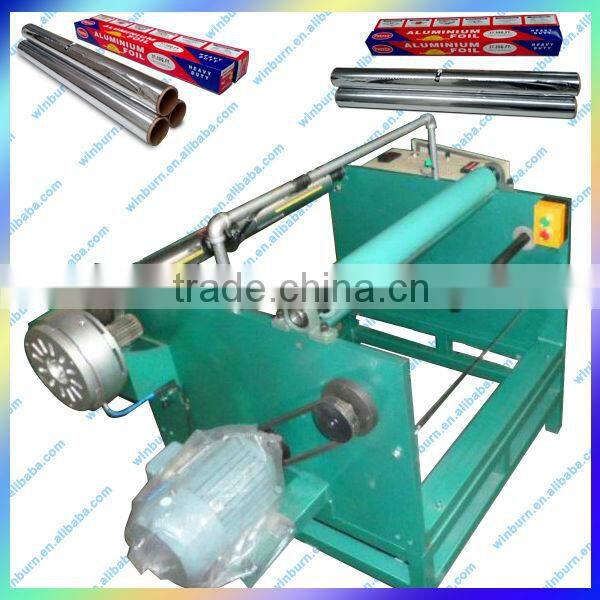

Small Roll Aluminium Foil Embosing Press Machine
US$ 2,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Aluminium foil roll
Packaging Type:
Case
Payment & Shipping
Payment Methods:
Port of Shipment:
Tinjin or Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Small Roll Aluminium Foil Embosing MachineUS$ 2,000 - 20,000MOQ: 1 Set -
Professional Hookah Aluminium Foil Rolls With Reasonable PriceNegotiableMOQ: 20000 Rolls
-
Safe and Popular Aluminum Foil for CigarettesNegotiableMOQ: 20000 Rolls
-
Factory Sell 8011/1235-O Aluminium Foil Roll for HookahNegotiableMOQ: 20000 Rolls
-
Convenient Aluminum Foil Roll for Daily Hookah UseNegotiableMOQ: 20000 Rolls
Condition
New
Application
Other, Aluminium foil roll
Packaging Type
Case
Packaging Material
Wood
Automatic Grade
Semi-Automatic
Driven Type
Electric
Voltage
380v
Power
4kw
Place of Origin
Henan, China
Brand Name
Winburn
Model Number
ATW-AF600
Weight
1800KG
Dimension(L*W*H)
3600*1400*1910
Certification
SGS
After-sales Service Provided
Engineers available to service machinery overseas
Aluminium Foil Small Roll Cutting Machine
This aluminium foil cutting machine is used to cut round, triangle, trantangular, or any other shape seal for bottle, cup.
Performance Features:
1. The complete machine adopts PLC control and safety & reliability.
2. In service, material receiving, gluing, winding and cutting, etc. are all automation control.
3. Without glue, winding and decrement of production cost
4. The winding adopts automatic gear shifting control with higher effect.
5. Squirrel cage operation adopts servo control, exact positioning without accumulated error.
6. Rolling small shaft delivery mechanism and exact safety.
7. Wallboard structure and smooth stabilization.
8. Constant tension unwinding and winding stabilization.
Parameters
| Material thickness | 0.0085mm-0.025mm |
| Max. Unwinding Width | 100-600mm |
| Max. Unwinding Diameter | 600mm |
| Mother Core Diameter | 76mm/152mm(optional ) |
| Max. Slitting Width | 500mm |
| Product Core Diameter | 25/30/35mm (optional ) |
| Maximum unwinding diameter | Φ600mm |
| Inner diameter of raw material roll core | Φ75mm |
| Inner diameter of finished product roll core | Φ25mm,Φ30mm and Φ35mm |
| Cutting length of roll | 2.5m-300m |
| Magnetic powder brake | 25N.M |
| Magnetic powder clutch | 12N.M |
| Producing Speed | 2.5m/s |
| Length of product | 3-150m |
| Motor | 4kw |
| Voltage | 380v (3 phase ) |
| Frequency | 50Hz |
| Weight | 2000kg |
| LxWxH | 4,000mm×1,550mm×1,820mm |
Production Detail
