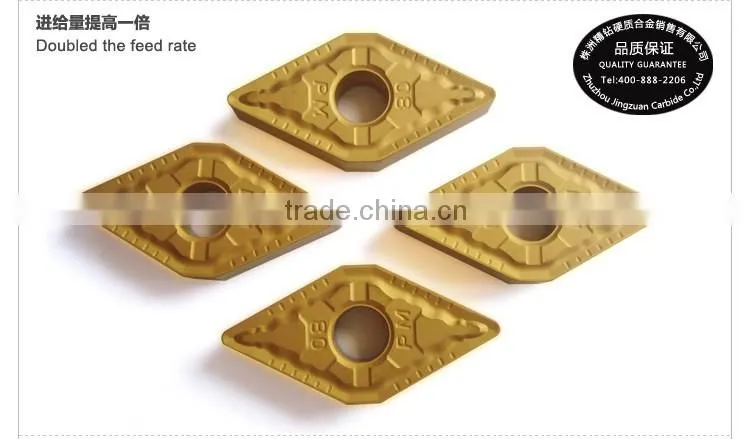

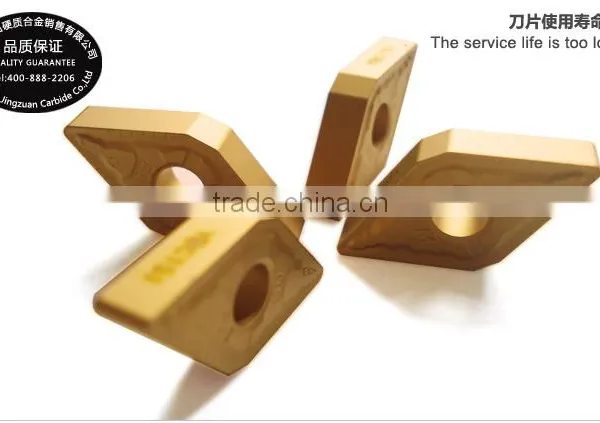

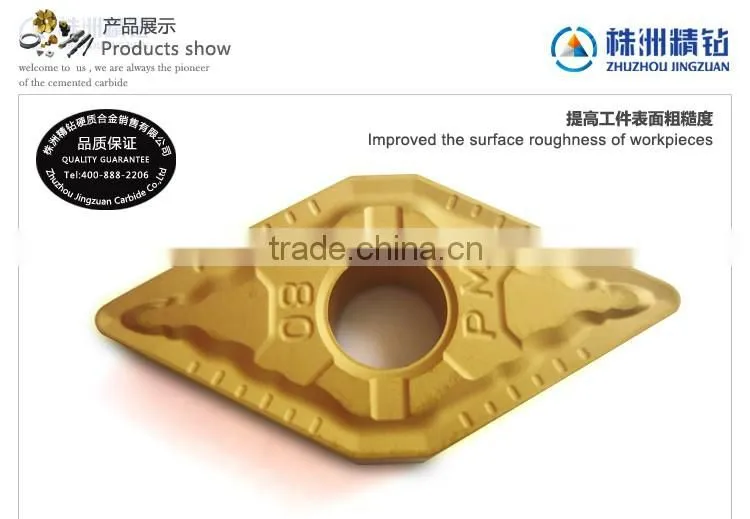

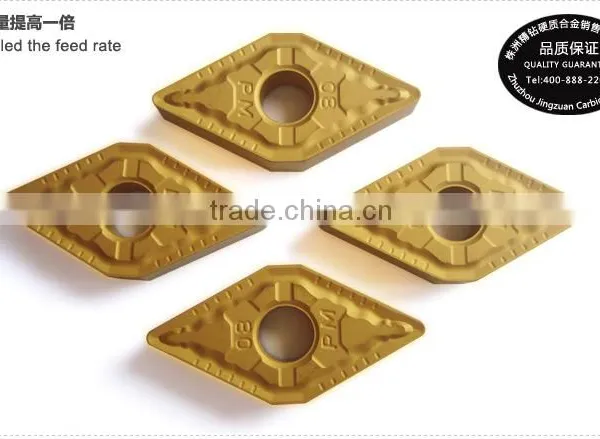

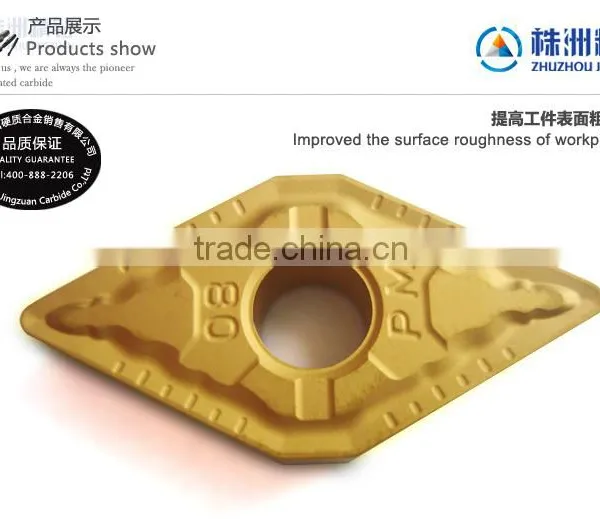

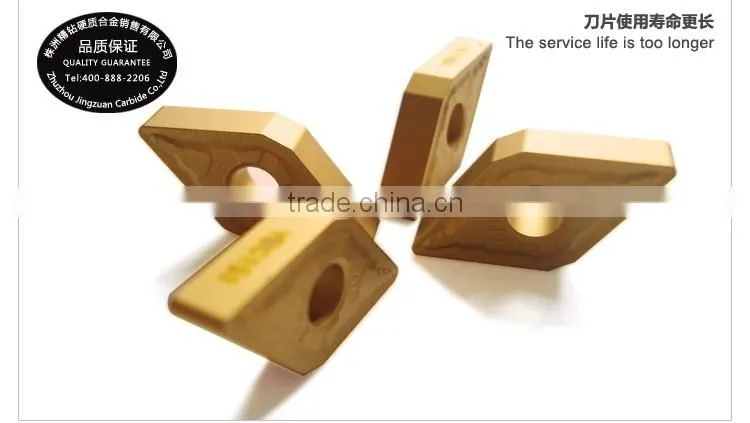

High quality tungstern milling cutter
we can provide carbide insert for roughing for you as your special specificati
Recommended cutting parameters for carbide inserts :
Grade select for carbide insert:
YBC301:
Combination of hightoughness,high-strength substrate and coating composed of TiCN,thin Al2O3 and TiN.
Suitable for semi-finish and rough milling of P-type material
YBM251:Combination of hightoughness,high-strength substrate and coating composed of TiCN,thin Al2O3 and TiN
Suitable for semi-finish and rough milling of P- and M-type material
YBM253:Combination of high-toughness gradient substrate and coating composed of TiCN and ultrafine Al2O3
Suitable for rough milling of M-type material
YBM351:Combination of high-toughness substrate and coating compoed of TiCN,thin Al2O3 and TiN
Suitable for rough milling of P- and M-type materia
YBD152:Good combination of substrate with high wear-resistance and coating composed of TiCN and thick Al2O3
Suitable for finish and semi-finish milling of K-type material
YBD252:Good combination of substrate with high wear-resistance and coating composed of TiCN and thick Al2O3
Suitable for rough and semi-finish milling of K-type material
YBG102:fine carbide substrate + Nano coating
Suitable for finish and semi-finish milling of K-type material
YBG202:Substrate with excellent deformation resistance + Nano coating
PVD grade with wide application, widely applied in semi-finish milling of P-, M- and S-type material
YBG205:Ultra fine carbide substrate +Nano coating
Suitable for rough milling of M-type material
YBG302:Substrate with good toughness and strength + Nano coating
Suitable for rough milling of P- and M-type material
YBG152:Substrate with moderate hardness and strength + Nano coating
Suitable for rough and semi-finish milling of K-type material
Chipbreaker selection for face milling inserts:
function |
For finishing |
For semi-finishing |
For roughing |
P |
-DF |
-DM |
-DR |
M,S |
-EF |
-EM |
|
K |
-CF |
-CM |
-CR |
AL |
-LH |
||
Cutting edge treatment selection for face milling insert for steel:
Treatment of cutting edge |
Recommended selection |
SP¨¨EDER/L |
Honing edge is suitable for semi-finish and finish machining of steel and stainless steel |
SP¨¨EDFR/L |
Sharp cutting edge is suitable for finish machining of cast iron materials |
|
SP¨¨EDSKR/L SP¨¨EDS¨¨R/L |
After chamfering and honing, the edge has strong anti-breakage capability, suitable for rough machining of steel parts under poor working conditions |
|
SP¨¨EDTKR/L SP¨¨EDT¨¨R/L |
Chamfered edge is suitable for semi-finish and finish machining of steel, stainless steel and cast iron materials. |
SP¨¨EDR/L-GM |
3D chipbreaker can reduce cutting force, reinforce the capability of chip control, and improve insert life. It is widely applied in semi-finish machining of steel, stainless steel and cast iron materials. |
Recommended combination of grade and chipbreaker
