Home > Industrial Equipment & Components > Fastener & Fitting > Screw > Tungstern Threading Milling

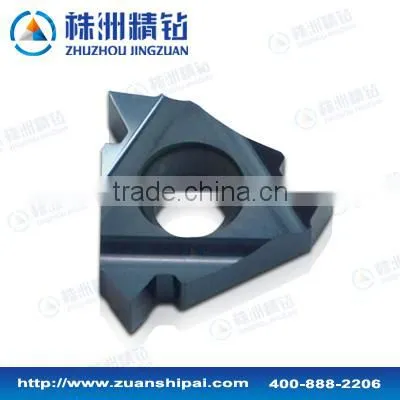

Tungstern Threading Milling

Name: Tungstern Threading Milling
Brand: jinboshi
SKU: 122491767

US$ 5 - 25 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Hunan, China

Brand Name:

jinboshi

Model Number:

Whitworth thread

Contact Supplier Request Quote Chat Now

Zhuzhou Jingzuan Carbide Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hunan, China

Brand Name jinboshi

Model Number Whitworth thread

Tungstern threading milling

Grades:

YBC151	High wear resistance of the matrix and MT-TiCN, thick Al2O3 and TiN coating.
YBC152	Thick TiCN and Al2O3 coating
YBC251	tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating.
YBC252	Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating.
YBC351	Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating.
YBG102	nc-TiAN coating and fine-grained matrix.
YBG202	nc-TiAN coating and fine-grained matrix.
YBG205	Added abrasion resistance and high temperature rare elements ultrafine TiAlN based nano-coating. High layer hardness and excellent resistance to high temperature provide effective protection for the cutting edge.
YBG302	nc-TiAN coating and flexible cemented carbide matrix.
YBM151	Special organizational structure and TiCN, thin Al2O3 and TiN coating.
YBM251	Good toughness and strength matrix and TiCN, thin Al2O3 and TiN coating.
YBM253	With the advance extra fine grain nanometer coating technology, match up with the high toughness gradient matrix.
YBD052	CVD coating(extra thick Al2O3 & thick TiCN), hard matrix.
YBD102	CVD coating (thick Al2O3 & thick TiCN) , hard matrix.
YBD152	CVD coating (thick Al2O3 & thick TiCN), hard matrix, it is anti-stripping.
YBD252	CVD coating (middle thick Al2O3 & thick TiCN), hard matrix.
YNG151	Uniform particle refining organizational ceramal alloy, homogenizing organizational & ring form phase structure, Strengthen bond phase,grain boundary composition design.
YNG151C	Physics weather deposit (PVD) coating, high toughness ceramal matrix.
YD101	Fine particle hardness phase WC and bond phase Co.
YD201	Middle particle hardness phase WC and bond phase Co.

Products feature :

1. Whitworth thread turning blade uses the composite coating technology of TiN and TiAIN, and have a excellent wear resistance performance. Those special coating technology add the thread turning blade with an excellent heat-stability and chemical-stability.

2. With the distinct wiper blade, our thread blade could lessen working procedures. Finish machining is needless when turning threads, and thread inserts can sleek the rough edge and rough top as the same time.

3. In addition, there is a unique designed wavy chip breaking platform on the thread blade, so that the chips get a smaller radius of curvature.

Application:

mainly using in processing of machinery and equipment part Whitworth internal thread or Whitworth external thread without top cut.

Zhuzhou Jingzuan Carbide Co., Ltd.,selling CN cutting tools and carbide blade series products of diamond brand, is the direct sales company of Zhuzhou Cemented Carbide Group Co., Ltd. It is also the only one modern high-tech enterprise which is committed to R&D, producing and sale the GB A Class high-grade carbide series products. Senior engineers and technicians are composed of a powerful service expert team in the company. They can provide users perfect product design, technical proposal, technical training and advisory to solve all the problems in using process. Our company has earned much honorable reputation such as “gold supplier of Alibaba” “the 10 most influential brand of China machine building industry” and “top 100 enterprises of new media marketing” by two consecutive years.Our products are exported to Southeast Asia and the Americas and enjoy a high popularity in those markets.
