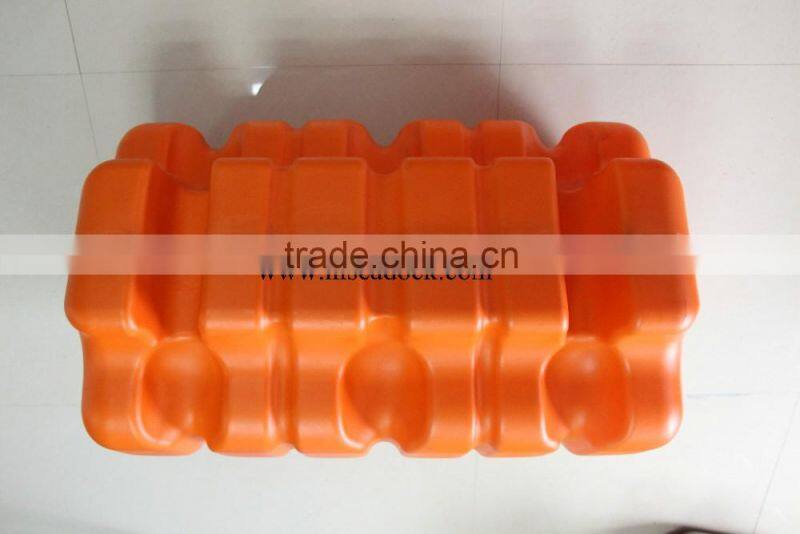

Floating fishing pontoon
fishing pontoon cubes Specifications:
Dimension: 500mm×500mm×400mm(L*W*H) & 1000*500*400MM (L*W*H)
Weight: 7.0Kgs/ pc ± 0.3Kgs/ pc
Floating Capacity: 350Kgs/ M2
Raw Material: HDPE
Preference Temperature: -60°C/+80°C Color available: orange, blue, gray, black
Load Capacity:
each one square meter is made up of four pontoons, top load is 325kgs.
Draft without load: 2.5-3cm;
Draft with load of 150kgs: 15-20cm(safe);
Draft with load of 300kgs:35-40cm(load limit)
Anti Wind Wave:
1.The wave on water surface between 2-class and 3-class belongs to safe applicable range.
2.The wave on water surface between 3-class and 6-class can be applicable; however,the safety protection must be reinforced.
3.The wave on water surface between 6-class and 9-class is the restricted applicable range (it is suggested that the shipping shall not be parked and the visitors shall not be in or out).
Anchoring:
1.If water is less than 3m in depth, steel piles are to be put in proper place and then connected by wheels, which can prevent the floating dock from moving laterally but can automatically rise and fall in line with water level.
2.If water is over 3m in depth, anchoring can be used by sinking the anchorage block pulled by steel cables to the water bottom.
Guarantee:
warranty on our floats are 3 years, that is within three years, if there is any damage caused by the product in normal condition, we will replace the floats for you.

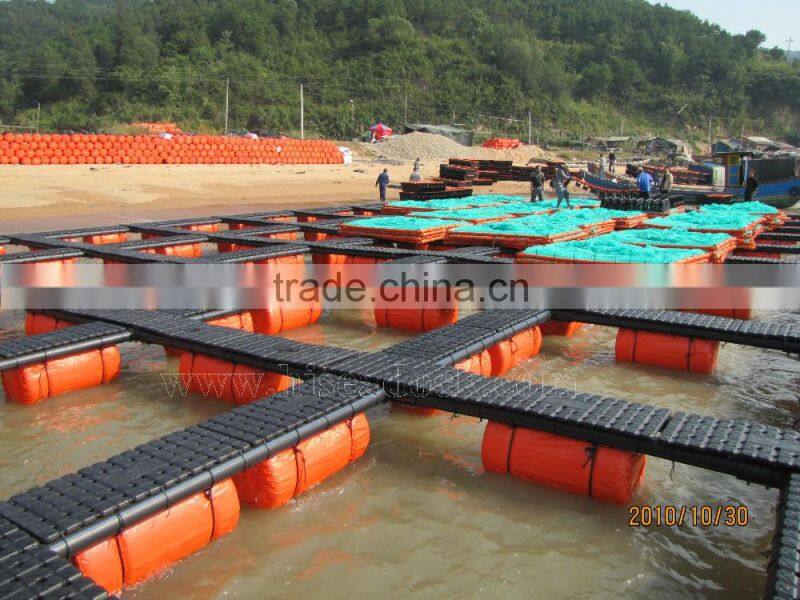

New float for fish farming cage
