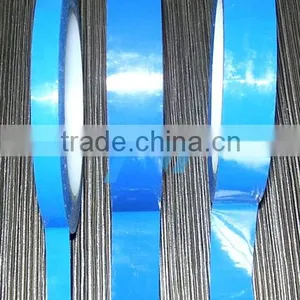

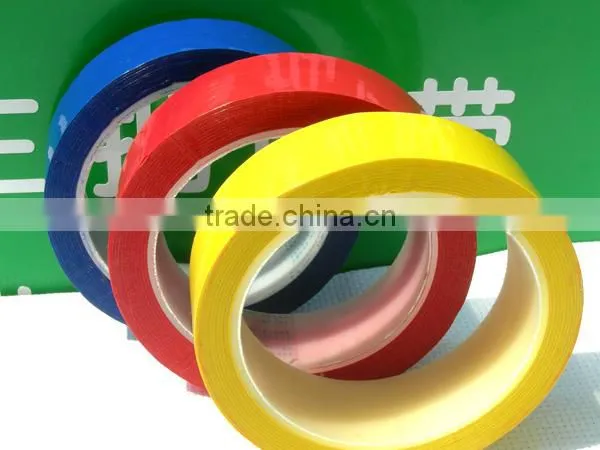

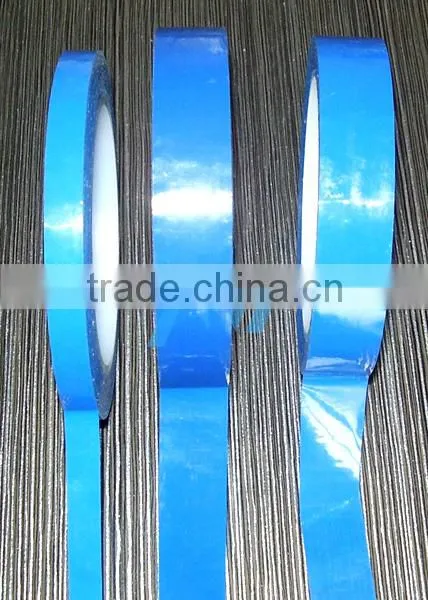

Help CenterWHCT SERIES MYLAR TAPE
Related Products
-
China Polyester Mylar Insulation Tape Used for TransformerUS$ 0.42 - 2MOQ: 200 Rolls -
High Performance Membrane Spacer 3M 7953MPUS$ 20 - 50MOQ: 2 Rolls
-
3M Membrane Spacer 7953MPUS$ 1 - 50MOQ: 5 Rolls
-
Polyester Mylar Insulation Tape for TransformerUS$ 0.58 - 3.98MOQ: 50 Rolls
-
3M 7953 MP PET Membrane SpacerUS$ 3 - 9MOQ: 20 Rolls
ITEM |
SPECIFICATION |
||||||
APPEARANCE |
The tape must be wrapped uniformly. The wick does not thrust out. The whole must not become like the bowl. Both sides must be flat. The color must be accordant. They must not dirt and wound. |
||||||
COLOR |
Light yellow, Dark yellow, Blue, Red, Green, Black, Milky, White, Clear |
||||||
MATERIAL |
CARRIER |
ADHESIVE |
FILLING |
||||
PET-film |
Crylic-acid generic |
Halogen Free Fire Retardants pigment |
|||||
|
DIMENSION
|
THICKNESS (mm) |
Carrier thickness |
tolerance |
Total thickness |
|||
0.025 |
±0.005 |
0.055±0.01 |
|||||
0.05 |
±0.005 |
0.080±0.01 |
|||||
WIDTH (mm) |
SPECIFIED WIDTH±0.20 |
||||||
|
LENGTH (m) |
0.025mm |
30m or MORE(±0.5m) |
|||||
0.05mm |
30m or MORE(±0.5m) |
||||||
|
FEATURE
|
TENSILE STRENGTH (N/10mm) |
0.025mm |
≥44 |
|
0.05mm |
≥88 |
|||
PEELING STRENGTH AT 180°(N/M) |
0.025mm |
≥300 |
||
0.05mm |
≥300 |
|||
|
ELONGATION (%) |
0.025mm |
≥80 |
||
0.05mm |
≥50 |
|||
|
BREAKDOWN VOLTAGE (KV) |
0.025mm |
≥5.0 |
||
0.05mm |
≥6.5 |
|||
HEAT RESISTANCE |
150°C |
|||
COLD RESISTANCE |
≤-10°C |
|||
SOLVENT RESISTANCE |
OK |
|||
FLAME RETARDANT GRADE |
UL510 (The clear tapes are not flamere tardant) |
|||
STORAGE VALIDITY |
25°C,65%RH |
|||
PERIOD OF VALIDITY (YEAR) |
One year |
|||
PARKI NG |
Wrap the tape without damage. |
|||
Enviromental Friendly |
Comply with enviromental friendly standard., |
|||
Trade terms & conditions:
* Delivery Terms: EXW, FOB, CNF, CIF (at your option)
* Payment Terms: T/T, L/C, Western Union,Paypal, etc.
* MOQ: please contact us anytime
* Package: as per customer’s request
* OEM/Logo printing: support
* Lead time: 3-15 days
* Price: please contact us anytime
