Rubber Hydraulic Hose SAE100 R2 Duct Distributor
- Qingdao
- T/T D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | orientflex | |
| Model Number | SAE100 R2 |
Product Description

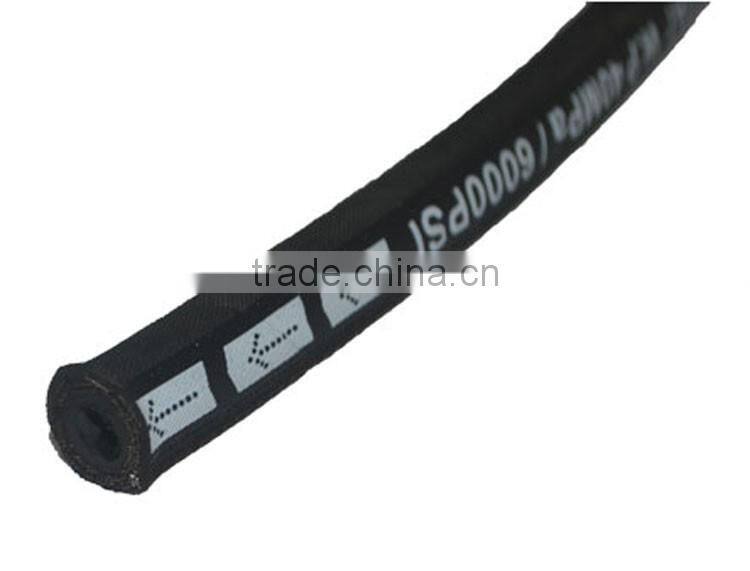

Rubber Hydraulic Hose SAE100 R2 Duct Distributor
Rubber Hydraulic Hose SAE100 R2 Duct Distributor
Recommended For : High-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R2AT performance requirements of EN853 2SN.
Application Fields : For high pressure hydraulic systems in industry and agriculture.
Tube:Black, oil resistant, synthetic rubber.
Reinforcement:Two braids of fiber reinforcement.
Cover:Black, oil, abrasion and weather resistant, thin synthetic rubber.
Temperature Range:-40℉ to +250℉ (-40℃ to +121℃)
Specification:
| Item Code | Hose ID | Hose O.D. | Working Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | ||||||||||||||||||
| Inch | mm | Inch | mm | psi | MPa | psi | MPa | Inch | mm | kg/m | lb/ft | |||||||||||||
| R2-06 | 1/4 | 6.4 | 0.58 | 14.7 | 5075 | 35 | 20300 | 140 | 3.94 | 100 | 0.36 | 0.242 | ||||||||||||
| R2-08 | 5/16 | 7.9 | 0.64 | 16.3 | 4310 | 29.7 | 17255 | 119 | 4.53 | 115 | 0.45 | 0.302 | ||||||||||||
| R2-10 | 3/8 | 9.5 | 0.74 | 18.7 | 4060 | 28 | 16240 | 112 | 4.92 | 125 | 0.54 | 0.363 | ||||||||||||
| R2-13 | 1/2 | 12.7 | 0.86 | 21.8 | 3550 | 24.5 | 14210 | 98 | 7.09 | 180 | 0.68 | 0.457 | ||||||||||||
| R2-16 | 5/8 | 15.9 | 0.98 | 24.9 | 2785 | 19.2 | 11165 | 77 | 7.87 | 200 | 0.8 | 0.538 | ||||||||||||
| R2-19 | 3/4 | 19.1 | 1.14 | 29 | 2275 | 15.7 | 9135 | 63 | 9.45 | 240 | 0.94 | 0.632 | ||||||||||||
| R2-25 | 1 | 25.4 | 1.48 | 37.6 | 2030 | 14 | 8120 | 56 | 11.81 | 300 | 1.35 | 0.907 | ||||||||||||
| R2-32 | 1 1/4 | 31.8 | 1.87 | 47.5 | 1640 | 11.3 | 6600 | 45.5 | 16.54 | 420 | 2.15 | 1.445 | ||||||||||||
| R2-38 | 1 1/2 | 38.1 | 2.11 | 53.5 | 1265 | 8.7 | 6310 | 43.5 | 19.69 | 500 | 2.65 | 1.781 | ||||||||||||
| R2-51 | 2 | 50.8 | 2.62 | 66.5 | 1130 | 7.8 | 4570 | 31.5 | 24.8 | 630 | 3.42 | 2.298 | ||||||||||||
| Item Code |
|
|
|
|
|
| ||||||||||||||||||
| Inch | mm | Inch | mm | psi | MPa | psi | MPa | Inch | mm | kg/m | lb/ft | |||||||||||||
| 2SN-06 | 1/4 | 6.4 | 0.58 | 14.7 | 5800 | 40 | 23200 | 160 | 3.94 | 100 | 0.36 | 0.242 | ||||||||||||
| 2SN-08 | 1/3 | 7.9 | 0.64 | 16.3 | 5075 | 35 | 20300 | 140 | 4.53 | 115 | 0.45 | 0.302 | ||||||||||||
| 2SN-10 | 3/8 | 9.5 | 0.74 | 18.7 | 4800 | 33.1 | 19200 | 132.4 | 4.92 | 125 | 0.54 | 0.363 | ||||||||||||
| 2SN-13 | 1/2 | 12.7 | 0.86 | 21.8 | 4000 | 27.6 | 16000 | 110.3 | 7.09 | 180 | 0.68 | 0.457 | ||||||||||||
| 2SN-16 | 5/8 | 15.9 | 0.98 | 24.9 | 3625 | 25 | 14500 | 100 | 7.87 | 200 | 0.8 | 0.538 | ||||||||||||
| 2SN-19 | 3/4 | 19.1 | 1.14 | 29 | 3120 | 21.5 | 12480 | 86.1 | 9.45 | 240 | 0.94 | 0.632 | ||||||||||||
| 2SN-25 | 1 | 25.4 | 1.48 | 37.6 | 2400 | 16.5 | 9600 | 66.2 | 11.81 | 300 | 1.35 | 0.907 | ||||||||||||
| 2SN-32 | 1 1/4 | 31.8 | 1.87 | 47.5 | 1810 | 12.5 | 7240 | 49.9 | 16.54 | 420 | 2.15 | 1.445 | ||||||||||||
| 2SN-38 | 1 1/2 | 38.1 | 2.11 | 53.5 | 1300 | 9 | 5200 | 35.9 | 19.69 | 500 | 2.65 | 1.781 | ||||||||||||
| 2SN-51 | 2 | 50.8 | 2.62 | 66.5 | 1175 | 8.1 | 4700 | 32.4 | 24.8 | 630 | 3.42 | 2.298 | ||||||||||||
| 2SN-38 | 2 1/2 | 63.8 | 3.07 | 78 | 720 | 5 | 2880 | 19.9 | 29.92 | 760 | 3.78 | 2.54 | ||||||||||||
| 2SN-51 | 3 | 76 | 3.56 | 90.5 | 580 | 4 | 2320 | 16 | 34.65 | 880 | 4 | 2.688 | ||||||||||||
Product show:
ORIENTFLEX is a professional manufacturer of rubber and plastic hose in Hebei, China.
Established in 2006, OrientFlex have more than 240 experienced workers, own a strong
R & D team, including 16 experienced engineers.
Advantage:
1). Advanced production equipment
2). ISO 14000 / ISO 9000 / Quality certificate
3). Strict quality inspection, Strong R&D team
4). Environmental friendly without pollution
5). 10 years manufacturing experience, strong and experienced export team
Show:
ORIENTFLEX has a strong sales and service team of 20 people, with more than five years experience in foreign
trade, to provide professional services for customer.

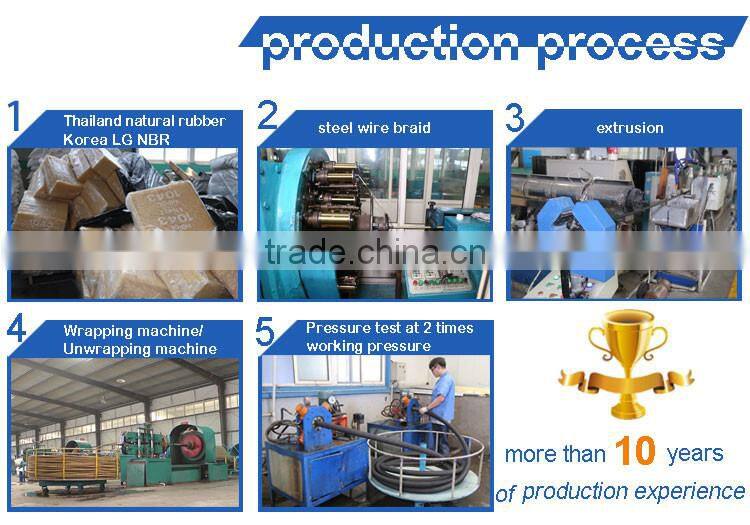

ORIENTFLEX has advanced production facilities, including 13 high-speed fiber braid machines,15 high-speed steel
wire braid machines,2 steel wire spiral production lines.45 PVC hose production lines.We have introduced VP brand
Industrial hose production line from Italy and Maillefer extrusion line from Switzerland.

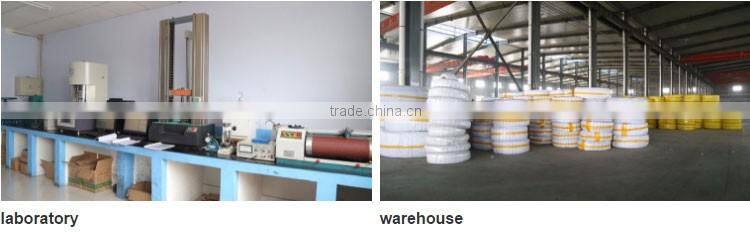

ORIENTFLEX has strong quality control team,we set up advanced laboratory.Before mass production,we test each
batch raw material.After production,we test each hose to guarantee 100% qualification.
ORIENTFLEX has three warehouses.
Good quality materials make our hose steady performance.
Our factory introduce advanced teconology and equipment to make the bets quality SAE100 R2 hose. We have much experience of exporting and we produce the best quality EN853 2SN hose.
Packing:After finishing the hose production, we will pack the hose.
In general, the packing will use woven bag and plastic film.
Special packing is available according to customers' requirements.
Certifications:All Product Meet The Standard Of ISO And The Requirement Of API.
For More Certifications And about ORIENT Please See The Below Link:
http://orientrubber.en.china.cn/custom_page_1/About_Orient.html

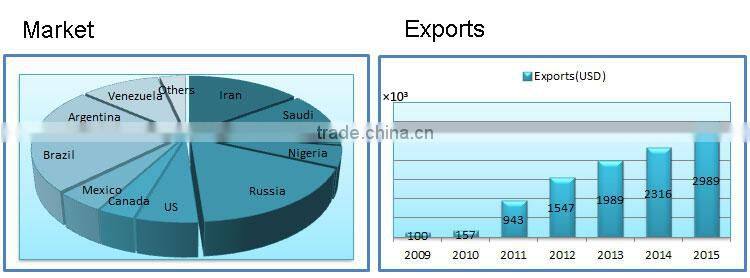

Market &Trade show: Our product has exported to over 30 countries,including the United States, Britain, Brazil, Russia and so on. And we participate in overseas exhibitions every year.

Skype:orienthose Whatsapp:008618033736943
TEL:+86-311-68008301 Fax: +86-311-68008302
Mobilephone:008618033736943
Email:orient888@orientrubber.com
Add: No298 Zhonghua North Street, Shijiazhuang, Hebei, China
More rubber hose products information Please visit:
http://orientrubber.en.china.cn/
