Specifications
1.Waterproofing membrane welding machine2.Overlap width 15cm
3.High quality ,delivery fast
4.Warranty 1 year

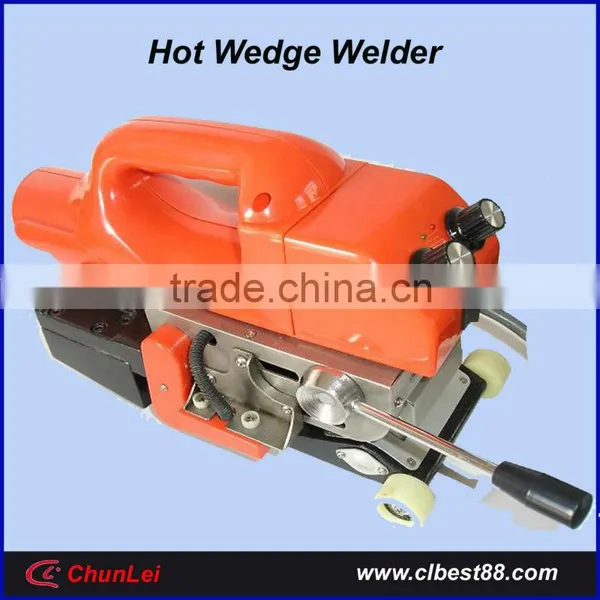

Waterproofing membrane welding/welder machine
(Chunlei Factory Machine)
Our company have different model geomembrane hot wedge welder machine , such as CL800 , CL810 , CL812 and CL820 , our machine can meet different Overlap width . Our machine mainly meet 10cm , 12cm , 15cm and 20cm overlap width .
Product Description
The machine is excellent in performance and easy for operation, with high welding speed and good work quality, it’s extensively used in engineering projects such as expressways, tunnels, reservoirs, waterproof of construction and so on. It is available for welding HDPE, LDPE, EVA, PVC, ECB,PP and other hot melt materials
Application
Application covers refuse landfill anti-seepage project, sewage disposal anti-seepage project, lake anti-seepage project, water conservancy anti-seepage project, tunnel anti-seepage project, minerals place anti-seepage project, cultivation pond anti-seepage project, roofing waterproofing project etc.
Mainly technical data
| Voltage | 220V |
| Frequency | 50HZ |
| Power | 800W |
| Welding speed | 6m/min |
| Heating temperature | 0-450 degree |
| Thickness of materials to be welded | 0.2mm-2.0mm |
| Overlap width | 150mm |
| welding width | 15mm*2 , interior cavity 12mm |
| Seam strength | 85% base material |
| Net weight | 5.5kg |
| Gross weight | 10kg |
Operation principle
Motor drives upper and lower pressure rollers to rotate through reduction gearbox and chain, slide carriage drive the hot wedge and insert it between base materials, at the same time lever presses pressure rollers and engages the two fused base materials
Supplied Accessories
1.Protector tube : 4pc (4A 2pc and 1A 2pc)
2.Cross rubber pad for coupling : 1pc
3.Philips driver : 1pc
4.Inner hexagonal spanner : 3pc
5.Silica gel wheel : 1pair
If you interesting our machine , please free to contact us
