Specifications

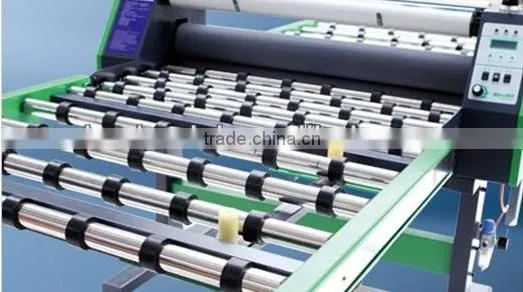

>Flatbed Laminator / plywood laminating machine>High quality ,factory price
>Working tables
>by air pressure
Description

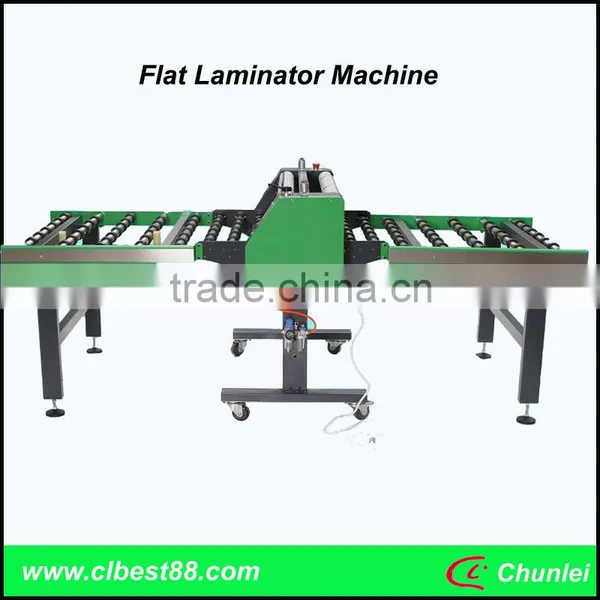

Flat laminator machine can be widely used laminating Crystal steel , Moved Doors , marble slab , glass , KT Board. PVC board . Cupboard Doors . Density board, Low close board , aluminium alloy plate , galvanized sheet and all kinds of flat boards
Technical data
Model |
CLM850-B2/CLM1350-B2/CLM1950-B2 |
Application |
Laminating for indoor/outdoor printings |
Maximum Working width |
850mm/1270mm/1830mm |
Rollers Dia |
130mm ,Silicon |
Roller lifting mode |
Air pressure |
Max laminating temperature |
120°C |
Heating mode |
Infrared inner heating |
Laminating speed |
0-8m/min |
Roller lifting height |
30mm |
Roller Pre-heating time |
10-15 min |
Power supply |
AC220±10% 50HZ,Optional 110v,60HZ |
Heating power |
1700W |
Motor Power |
90W |
Net Weight |
100KG |
Size |
770*1220*1100mm |
Pedal |
With |
Function
1. Advanced roller inner-heat technology and be of high efficiency and very safe
2. Digital control, touchable input screen for easy operation
3. Speed and temperature can be adjusted freely
4. Available for different laminating materials to meet different requirements
5. Have both hot and cold laminating function; with single-sided laminating and double-sided laminating
6. It is specialized in preventing paper bending,such as paper weight between 70g and 80g.
7. Very useful for the lamination on paper painted by silicone oil, especially paper printed by Xerox Printer
