Specifications
>Hot&cold roll laminator /laminating machine/hot laminator>High quality and factory price
>Electric automatic laminator
>CE

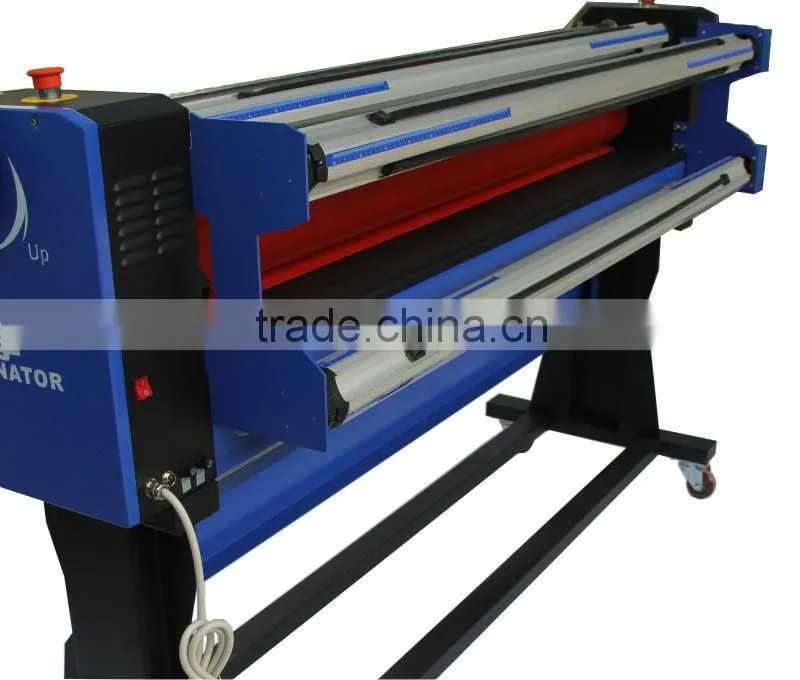

Hot&cold roll laminator /laminating machine/hot laminator
(Chunlei Factory Machine)
Our company produce many different model laminator machine , such as 1300mm , 1600mm , 1700mm and other model laminator machine .
Application
Wide applacition in use, much suitable for indoor printing work. Laminate membrane on variety of materials such as printing paper, photographic paper, reflective flex, glass plate, wood board, etc. photo paper, PP, self adhesive PP, backlit film or transparent film
Description
CLM1700-M is the newest upgrade model of Heat-assist Cold Laminator, which advanced ISO quality rubber roller and antitilt system to make it more accurate and faster during lamination.MF1700-M is a 1.63m/64” full auto laminator designed as an inexpensive option for post printers. Low heating can absolutely avoid air bubbles and snow points for cold weather. Its simple design makes it extremely easy to use and provides quality laminating results
Technical Parameter
| MODEL No. | CLM1700-M5 |
| Laminating function | hot cold function |
| Max laminating width | 1630mm/64'' |
| Speed | 0-7m/min |
| Max laminating thickness | 23mm |
| Max temperature | 100°C |
| Rollers | Silicon |
| Height adjust | Lifting link |
| Heated method | Infrared |
| Preheating time | 5-10mins |
| Power input | 2200W |
| Volt | 110/220V |
| Net weight | 200Kg |
| Packing Size | 800×2200×1180mm |

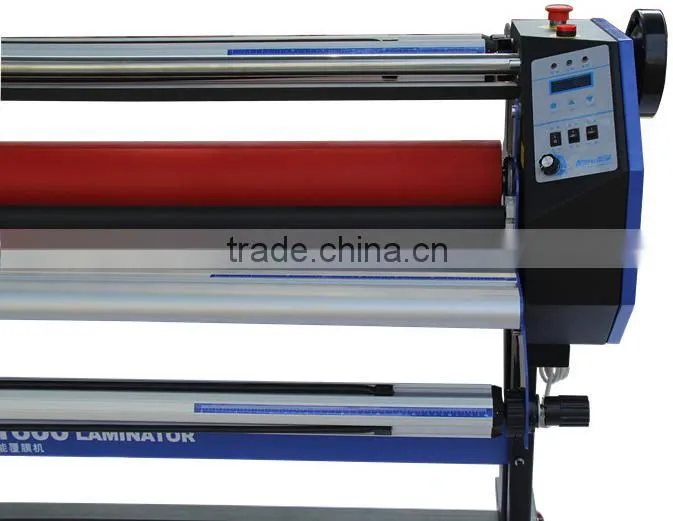

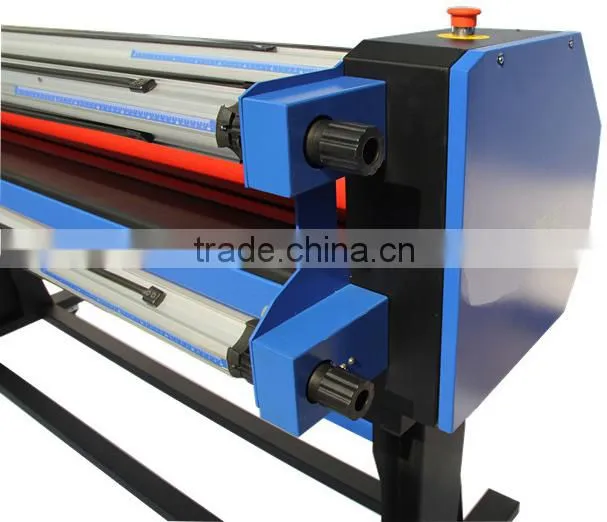

Some pictures of introduction
1. Feeding roll with drop-in supply shaft provides easy loading of prints, unique design ensures better roll to roll application

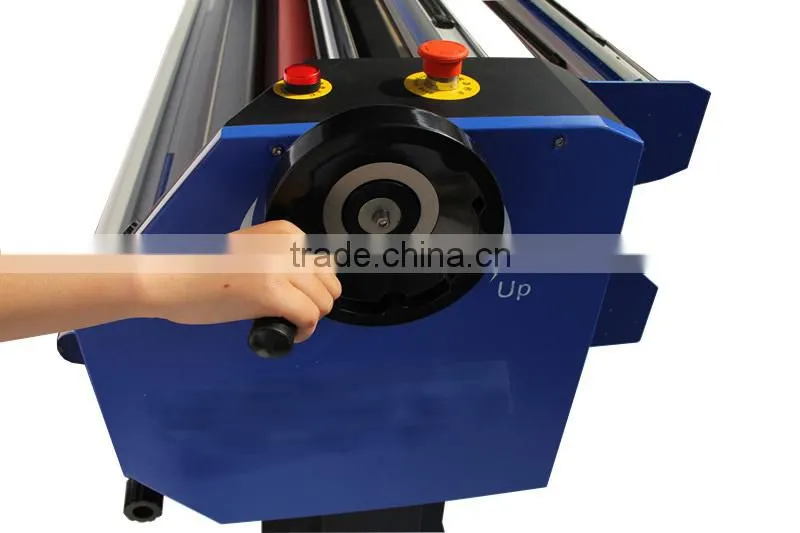

2. Upper roller up and down by lifting link produce even pressure both sides
3.Once laminated , the prints can wound onto take- up roll
4.Fully adjustable tension through tension grips
5.Thick pivoting feeding tray with round edge to avoid damage to prints
Optimum performance
1.Heat-assist cold lamination for bubble-free application
2.Stronger frame for longer lifetime and trouble free
3.Adjustable settings for increased capacity and versatility
4.Fast processing with a speed
5.Unique anti-tilt and anti-fold system ensures clear output
6.Lifting link produces even pressure for both sides
Ease of use
• Manual nip gap adjustment
• Simple film tension adjustment
• Light weight drop-in supply shafts with auto-grip for easy loading
• Foot pedal switch for pieces accurate application
Safety
• Foot switch for hands free operation
• Laser safety eyes and 2 emergency stops
