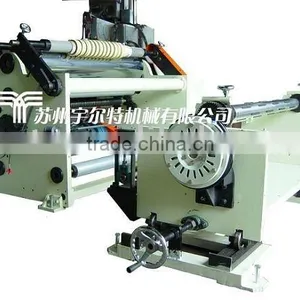

Double Rocking Arms Slitter Rewinder

Double Rocking Arms Slitter Rewinder photo-1
US$ 1,000 - 40,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Machinery & Hardware
Packaging Type:
Cartons
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Other, Machinery & Hardware
Packaging Type Cartons
Packaging Material Paper
Automatic Grade Automatic
Driven Type Electric
Power 7-11kw
Place of Origin Jiangsu, China
Brand Name yuerte
Model Number YET06-03

Specifications

sutable for the slitting of paper,label sticker,release paper,opp,pet film,laser holographic material,and glueless film.

application:

sutable for the slitting of paper,label sticker,release paper,opp,pet film,laser holographic material,and glueless film.

features:

1)the machine equipped with two groups of surface centre winding-typed winding shafts which could raise the regularity of the product edges.the tension of the finished products could adjust of no stage according to different materials.

2)magnetic power brake and full automatic tension controller are adopted in the tension control of feeding shaft.

3)DC motor and tension controller are adopted in the tension control of winding shaft.

4)industrial blade and upper and lower round blades are adopted in the slitting of basis materials.

5)AC motor drive,frequency converter for speed-governing.

Techincal parameters:

model YET-700 YET-1000 YET-1300 YET-1600
raw material width 700mm(max.) 1000mm(max.) 1300mm(max.) 1600mm(max.)
raw material diameter 800mm(max.) 800mm(max.) 800mm(max.) 800mm(max.)
finished product width 10-700mm 10-1000mm 10-1300mm 10-1600mm
finished product diameter design upon the request of the customer
inside diameter of paper core 3"
mechanical speed 0-120m/min
voltage 220v/380v/440v 3-phase 50/60HZ
