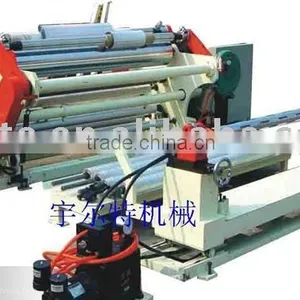

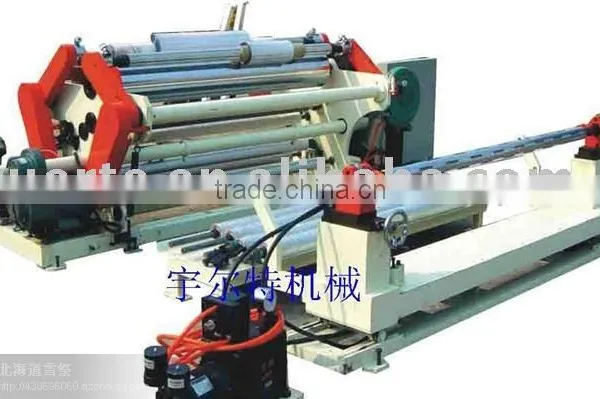

Help CenterDouble Rocking Arms Slitter Rewinder
Related Products
-
Slitter RewinderUS$ 1,000 - 400,000MOQ: 1 Set -
Super-large Paper Slitting RewinderUS$ 1,000 - 6,000MOQ: 1 Piece
-
YET05-02 Roll SlitterUS$ 15,000 - 30,000MOQ: 1 Set
-
YET04-01 Bopp Tape Jumbo Roll Slitting MachineUS$ 10,000 - 30,000MOQ: 1 Set
-
Autoamtic YET04-02 Bopp Tape Slitting PlantUS$ 7,000 - 11,000MOQ: 1 Set
Specifications
1.slit paper , label sticker , release paper , OPP, PET film , and glueless film.2.high efficiency.
3.operation stability.
1.application:
sutable for the slitting of paper,label sticker,release paper,opp,pet film,laser holographic material,and glueless film.
2.features:
1)the machine equipped with two groups of surface centre winding-typed winding shafts which could raise the regularity of the product edges.the tension of the finished products could adjust of no stage according to different materials.
2)magnetic power brake and full automatic tension controller are adopted in the tension control of feeding shaft.
3)DC motor and tension controller are adopted in the tension control of winding shaft.
4)industrial blade and upper and lower round blades are adopted in the slitting of basis materials.
5)AC motor drive,frequency converter for speed-governing.
3.Techincal parameters:
Model |
YET-700 |
YET-1000 |
Raw material width |
300-1000mm |
300-1000mm |
Raw material diameter |
600mm(max.) |
|
Finished product width |
20-1000mm |
50-1300mm |
Finished productdiameter |
600mm(max.) |
|
Inside diameter of paper core |
3" |
|
Mechnanical speed |
0-150m/min |
|
Voltage |
220v/380v/440v 3-phase 50/60 HZ |
|
