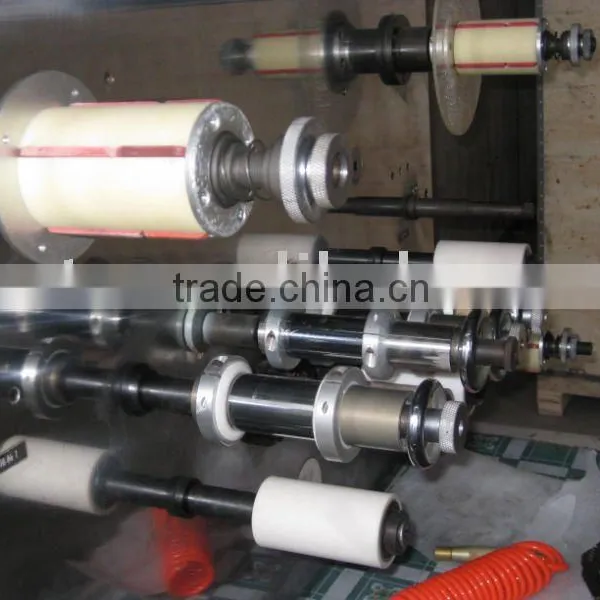

lamination machine

Specifications

suitable for the lamination rewinding of the basis material such
as PET,PE.PP.double-side tape ,
release paper,mylar etc

application:

suitable for the lamination rewinding of the basis materials such as PET,PE.PP,double-side tape ,release paper, mylar etc.

Feature:

1) all basis materials two-layer lamination rewinding ,wide range of application.

2) there will be with the function of slitting if required lamination slitter rewinder.

3) unwinding shaft adopts magnetic-powder brake for tension control and EPC sutomatic alignment device.

4) full automatic or semi-automatic control of unwinding/winding tension.



Tenchincal parameters:

model                                    YET-700                YET-1000            YET-1300             YET-1600

raw material                         700mm(max.)        1000(max.)         1300(max.)          1600(max.)

raw material diameter           600mm                  600mm              600mm                600mm

finished product width         40-700mm              40-1000mm        40-1300mm         40-1600mm

finished product diameter                400mm(max.)design upon the request of the customer

inside diameter of paper core                          3''

mechanical speed                                                  0-60 m/min

voltage                                             220v/380v/440v   3-phase 50/60Hz
