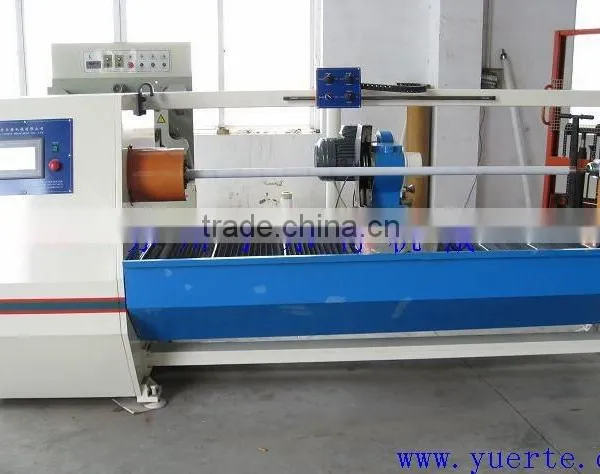

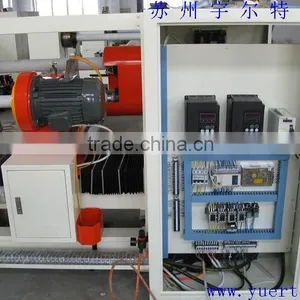

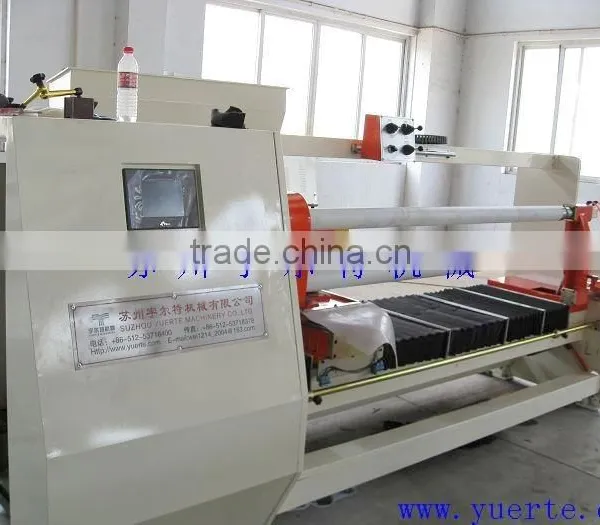

Help CenterDouble Shafts Double Knives Automatic Tape Cutting Machine
Related Products
-
Double-shaft Double-pole Automatic Cutting MachineUS$ 1,000 - 60,000MOQ: 1 Set -
Basis Material Automatic Cutting MachineUS$ 20,000 - 40,000MOQ: 1 Set
-
Manual Cutting MachineUS$ 100 - 1,000MOQ: 1 Set
-
High Efficiency Paper- Tube Cutting MachineUS$ 1,500 - 2,500MOQ: 1 Set
-
Double-spindle Double-pole Automatic Foam Cutting MachineUS$ 10,000 - 400,000MOQ: 1 Set
Specifications
1.For cutting PVC,OPP etc.2.Vallid width:1300/1600mm
3.Min.cutting width:3mm

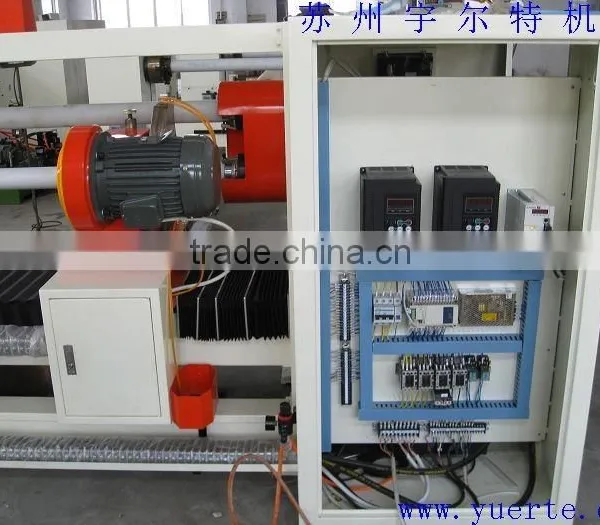

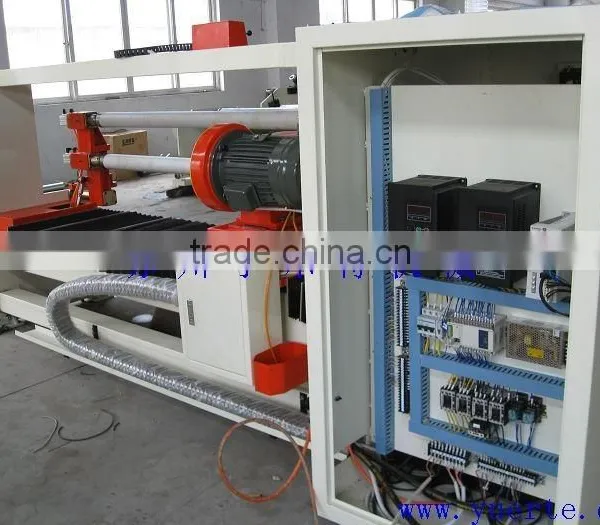

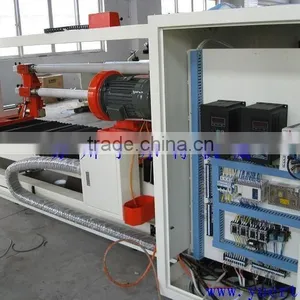

4.Servo motor,PLC control
5.Cutting dia.:150mm
VIDEO:
/v_show/id_XMjgyNjc1MDM2.html
1.Application:

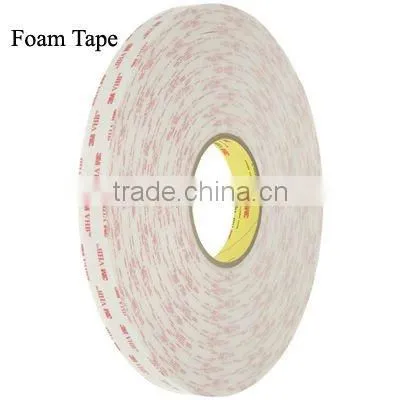

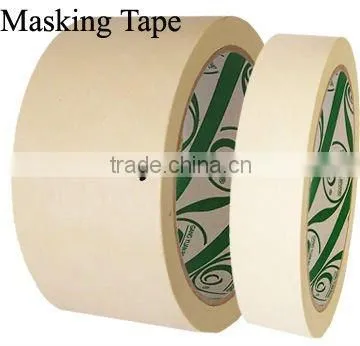

Suitable for cutting PVC,OPP,PE,Masking tape,Release Paper Tape,Double sided tape etc.
2.Feature:
1)Simplified operation panel,integrated control of all buttons.
2)Silicon liquor cooling system is used for preventing the gluing of blade and
keeping the blade working in good conditions.
3)Oil pressure cutting feed, the pressure is adjustable, and with high stability.

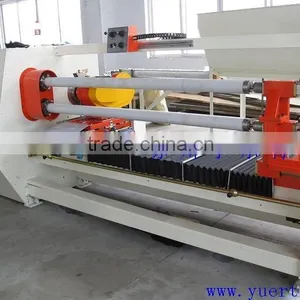

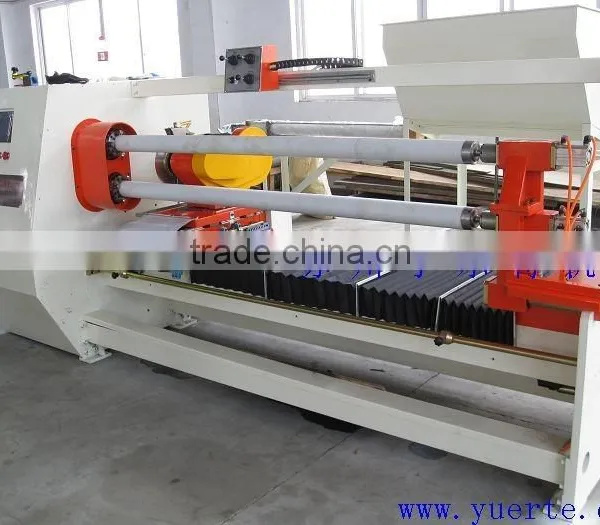

4)Double shafts,double knives,high efficiency.
5)Drive with Servo motor.
6)Operation person:1 is ok.
3.Technical parameters:
valid width |
1.3m or 1.6m |
Max. rolled cutting diameter |
150mm |
Min.sitting width |
3mm |
inside diameter of paper core |
Φ32-Φ76.2mm |
round blade drive motor |
3HP |
raw material axis drive motor |
5HP |
blade diameter |
350mmMax |
weight |
1450KG |
machine dimension(L*W*H) |
3790*1550*1750mm |
4.Payment term:
(1)40%T/T as deposit,60%T/T before shipment
(2)Iran : L/C (From Kunlun Bank)
(3)Bangladesh: 100%L/C at sight(From Standard Chartered Bank)
5.Pre-sales:
We normallty test it before delivery,you can come to test it.
6.Warranty:
one year when you receive the machine.
