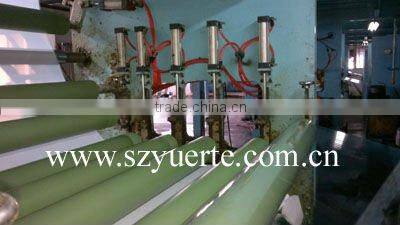

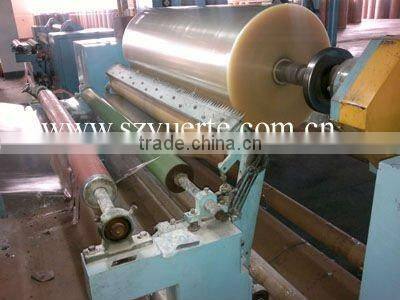

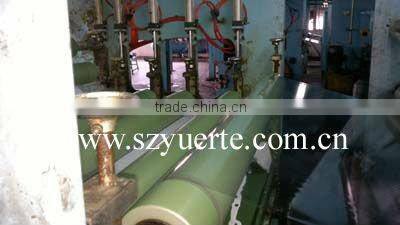

Water Base Acrylic Glue Coating Machine

Name: Water Base Acrylic Glue Coating Machine
Brand: yuerte
SKU: 122457513
Availability: InStock

US$ 80,000 - 280,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Other, Machinery & Hardware

Automatic Grade:

Automatic

Suzhou Yuerte Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Other, Machinery & Hardware

Automatic Grade Automatic

Driven Type Electric

Power 100-145KW

Packaging Type Other, wooden case

Packaging Material Wood

Place of Origin Jiangsu, China

Brand Name yuerte

Model Number YET0102-01

Specifications

1.Mayer-bar coating,coating average.
2.Duplex pneumatic unwind and rewind.
3.Automatic tension control.
4.Speed:120-220m/min

1.Application:

Suitable for coating of BOPP adhesive tape.

2.Feature:

(1)Mayer-bar gluing,after gluing,trimness the surface of the tape,coating average,save glue.

(2)The equipment steady,reduce the consumption.

(3)water base coating machine:120-220m/min high speed production.

(4)Duplex pneumatic unwinding,duplex pneumatic rewinding.

(5)water base coating machine:High speed automatic cutting cloth and connecting film.

(6)Automatic tension segmentation control.

(7)Outside heated shell type drying case,easy operation.

3.Technical parameters:

Model	YET-500	YET-1000	YET-1300	YET-1600
Valid width	500mm	1000mm	1300mm	1600mm
Mechanical speed	5-60m/min	5-150m/min	5-220m/min	5-220m/min
Coating average degree	0.01mm
Rewinding edge smooth	2mm
Total mechanical speed	20-25HP	20-65HP	30-100HP	40-100HP
Oven length	design upon the request of the customer
Heating	steam/hot blast/thermal oil/electric
Power supply/voltage	380v 50HZ
