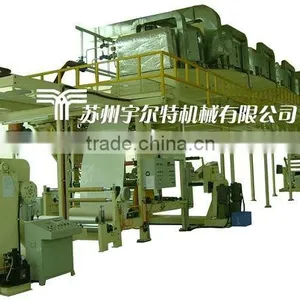

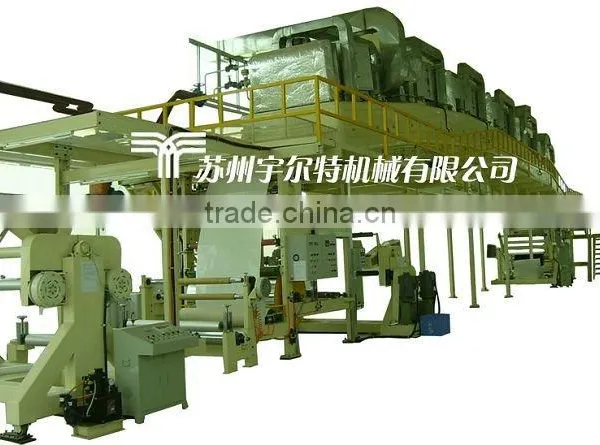

Water Based Adhesive Coating Machine
US$ 120,000 - 250,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Machinery & Hardware
Automatic Grade:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Insulating Protcting Tape Coating MachineUS$ 120,000 - 250,000MOQ: 1 Set -
Adhesive Coater Tape MachineUS$ 120,000 - 250,000MOQ: 1 Set
-
Masking Paper Label Sticker CoaterUS$ 120,000 - 250,000MOQ: 1 Set
-
Adhesive Paper Coater MachineUS$ 120,000 - 250,000MOQ: 1 Set
-
Double Side Tape Automatic Adhesive Paper Tape Coating MachineUS$ 120,000 - 250,000MOQ: 1 Set
Condition
New
Application
Other, Machinery & Hardware
Automatic Grade
Automatic
Driven Type
Pneumatic
Power
80-115kw
Packaging Type
Other, wooden case
Packaging Material
Wood
Place of Origin
Jiangsu, China
Brand Name
yuerte
Model Number
YET0101-04
Specifications
1.valid width:500/1000/1300/1600mm.2.machine speed:5-80m/min.
3.duplex rewinding.
4.lifting unwinding.
5.many heating way.
1.Application:
suitable for coating of basis materials such as release paper,ads material, masking tape,label sticker,double-side tape,cloth tape ,reflective cloth,and reflectie film etc.
2.Featrue
1 mesh bottom glue with active mode smoothing equiment,straight-scraping transfer printing type gluing, laminating all kinds of basis materials.
2) double-position air-operated unwinding and rewinding.
3) automatic switching,cutting cloth and connecting film.
4) segmentation control temperature and adjustment according to the technical process.
5) slit nozzle blasting dry system for bake oven,high drying effciency.
3.Technical parameters:
| Model | YET-500 | YET-1000 | YET-1300 | YET-1600 |
| Valid width | 500mm | 1000mm | 1300mm | 1600mm |
| Mechanical speed | 5-40m/min | 5-80m/min | 5-80m/min | 5-80m/min |
| Coating average degree | ±0.015mm | |||
| Rewinding edge smooth | ±3mm | |||
| Total mechanical speed | 20-65HP | 20-80HP | 30-80HP | 40-100HP |
| Oven length | design upon the request of the customer | |||
| Heating | steam /hot blast/thermal oil | |||
| Power supply/voltage | 380v 50HZ | |||
