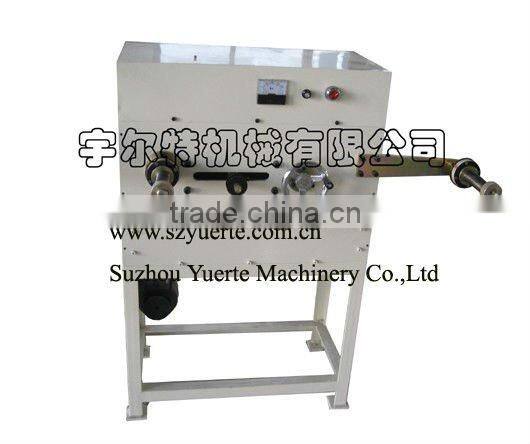

Sealing Tape Rewinder
1.Application:
Suitable for producing Bag Sealing Tape.
2.Feature:
1)Suitable for material:PET,HDPE,BOPP
2)Suitable for adhesives:Oil and water-baesed adhesives.
3)Coating methods:Dry coating.
4)Drying & heating methods:Electric heater.
5)Temperature control:Auto-temperature control.
6)Unwinding type:Single-shaft multi-roll synchronous unwinding.
7)Rewinding type:Double-shafe multi-roll rewinding.
8)Tension control:Manual.
3.Technical parameters:
Product width |
10,15(mm) |
Production capacity |
20roll/10mm 14roll/15mm |
Speed |
20-28m/min |
Material diameter |
400(mm) |
Paper tube inner diameter |
3" |
Coating thickness |
0.02-0.05(mm) |
Even coating thickness |
±0.0015mm |
Product diameter |
370mm(10001m) |
Power:Main motor |
1/2HP |
Rewinding motor |
1/2HP |
Power |
10kw |
4.Capacity:
10mm width/roll,1000m length/roll,12 shafts,8 hours,20-28m/min.
If 20m/min,8 hours can produce:
20m/min*60min*8hours*12shafts/1000m=115.2 rolls
Except wastage then the capacity is 110 roll.
If 28m/min,then the capacity is 150 rolls.
So in 8 hours can produce 110-150 rolls sealing tape.
5.Raw materials:
PET is double side corona treatment,double side coating glue by sealing tape coating machine,
film thickness is about 10 micro;HDPE is double side silicon coated,film thickness about 10 micro.
Then coating and laminating HDPE and PET together by sealing tape coating machine.
6.Payment term:
(1)40%T/T as deposit,60%T/T before shipment.
(2)100%L/C at sight
