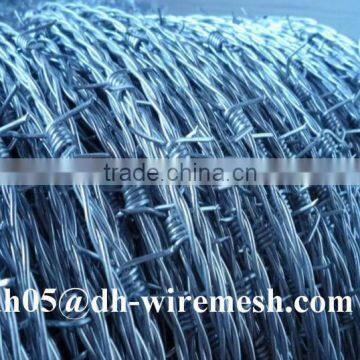

Help CenterHigh Protective Properties Single Blade Barber Razor/barbed Wire Weight per Meter for Warehouses Cottages Further Protection
Related Products
-
Cheap Barbed Wire Price per Roll, Barbed Wire Weight per MeterUS$ 365 - 1,230MOQ: 50 Rolls -
2015 High Quality Cheap Concertina Razor Barbed Wire Prices for SaleUS$ 438 - 1,356MOQ: 50 Rolls
-
Wholesale Razor Blade Barbed Wire/concertina Wire for Protection FenceUS$ 650 - 950MOQ: 25 Tons
-
BTO-22 Razor Blade Barbed Wire/concertina Coil Razor Wire for FenceUS$ 650 - 950MOQ: 25 Tons
-
Wholesale Razor Wire Coil Bto-22/razor Blade Barbed WireUS$ 650 - 750MOQ: 25 Tons
Barbed wire
We offer barbed wire with different treatment, like PE or PVC coated.
Technical Info of PVC Coated Barbed Iron Wire: Core of PVC Coated Barbed Iron
Wire can be galvanized iron wire or black annealed iron wire.
A variety of colors like green, blue, yellow, orange, gray, is available with PVC Coated Barbed Iron Wire produced by us. Tensile strength of Standard PVC Coated Barbed Iron Wire is 30-45 kgs./sq.mm.
|
Gauge of Strand and Barb in B.W.G. |
Approximate Length per kilogram in Meter | |||
| Barbs Spacing | ||||
| 3'' | 4'' | 5'' | 6'' | |
| 12x12 | 6.0617 | 6.759 | 7.27 | 7.6376 |
| 12x14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
| 12-1/2x12-1/2 | 6.9223 | 7.719 | 8.3022 | 8.7221 |
| 12-1/2x14 | 8.1096 | 8.814 | 9.2242 | 9.562 |
| 13x13 | 7.9808 | 8.899 | 9.5721 | 10.0553 |
| 13x14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
| 13-1/2x14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 |
| 14x14 | 10.4569 | 11.659 | 12.5423 | 13.1752 |
| 14-1/2x14-1/2 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
| 15x15 | 13.8927 | 15.4942 | 16.6666 | 17.507 |
| 15-1/2x15-1/2 | 15.3491 | 17.1144 | 18.406 | 19.3386 |
Barbed Wire Materials:1.Electric galvanized wire2.Hot dipped galvanized wire

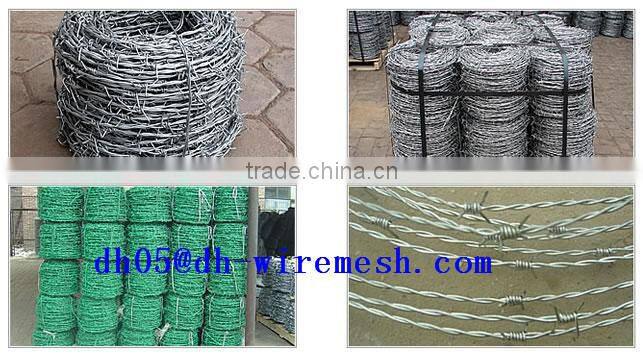

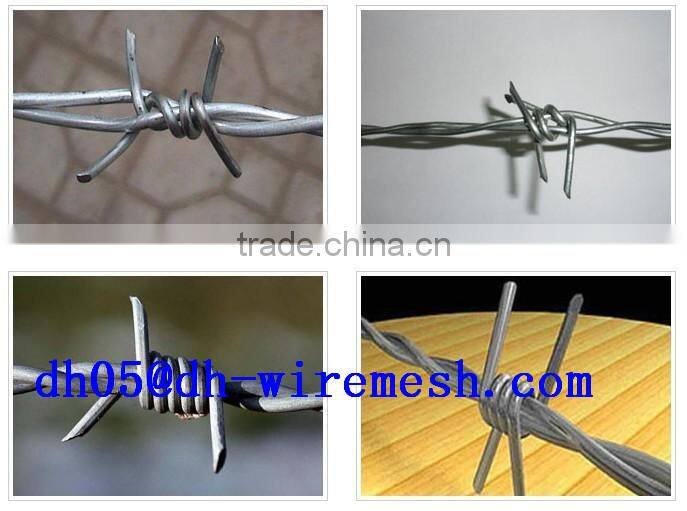

Barbed wire weave types:1)single strand barbed wire,
2) double strand double twisted barbed wire;
3) double strand common twisted barbed wire

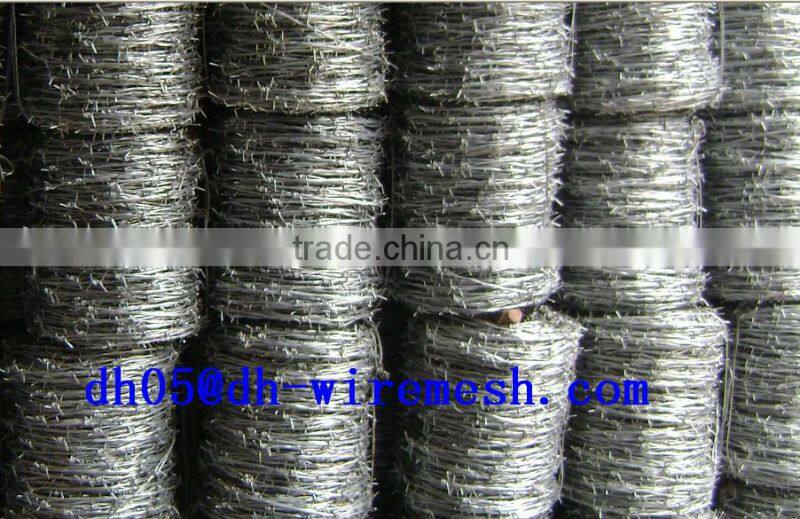

Galvanized Barbed Wire

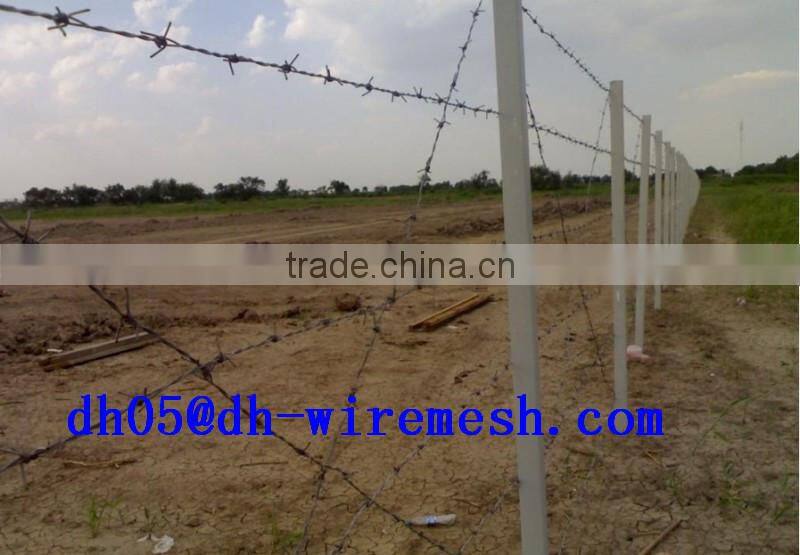

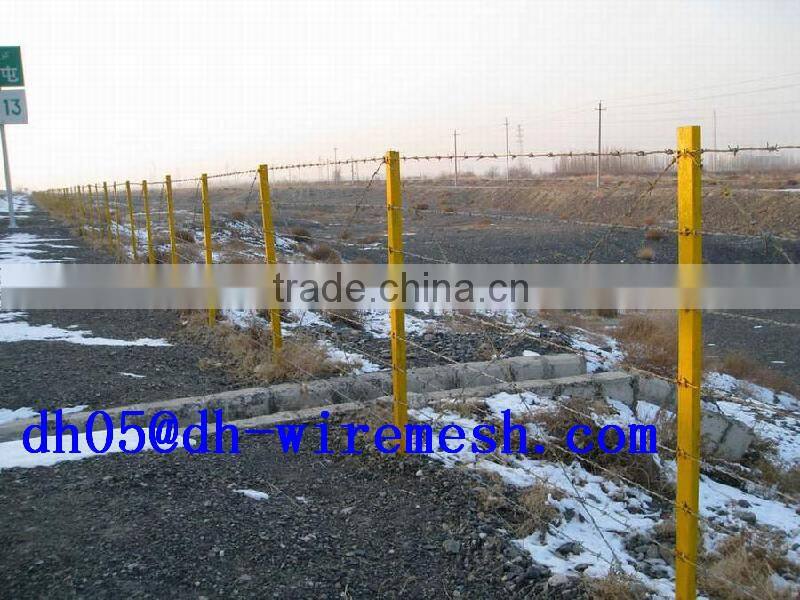

Galvanized barbed wire is used in defending of farm land, sport ground, or used together with concertina razor wire. Normally it's settled above the fence, for example chain link fence and welded fence, avoiding climbing across. Galvanized barb wire can also form a barbed wire wall with wooden sticks or iron sticks. The weaving methods are one main wire, one barbed wire; one main wire, twin barbed wire; and twin main wire, twin barbed wire.

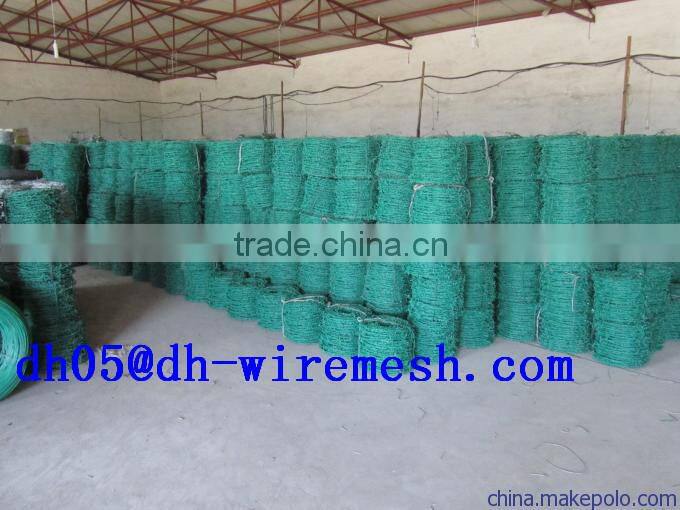

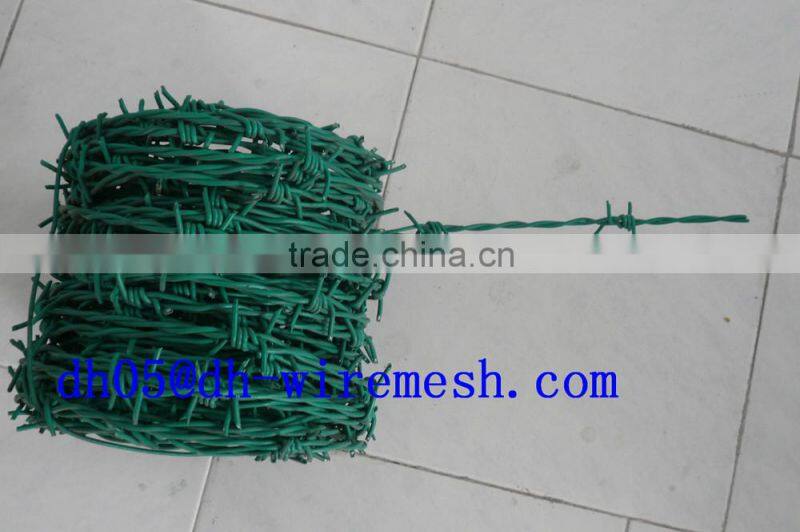

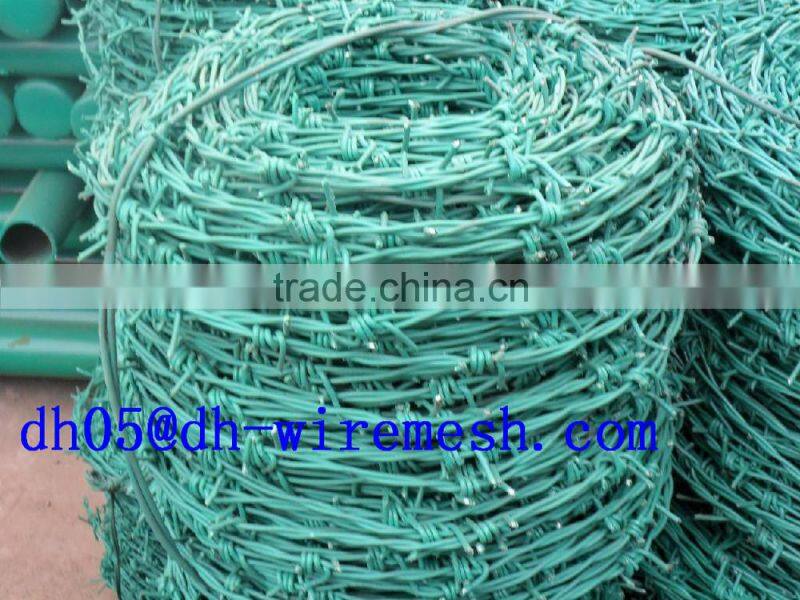

PVC Coated Barbed Wire
PVC coated barbed wire enjoy longer use life than galvanized barbed wire
The color is usually green color.
Core of PVC coated barbed wire can be galvanized iron wire
A variety of colors like green, blue, yellow, orange, gray
1.our products have got IS090001 Internation Quality Management System certificate.
3.Supply competitive price
4.Arrange production in time
5.Any question,please feel free to contact us.
6.we will do our best to serve you!
