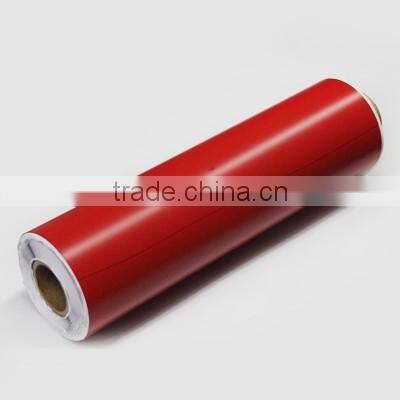

Help CenterRubber Red Pvc Colored Magnetic Sheets
Related Products
-
Coustomized Rubber Refrigerator Flexible Magnet SheetUS$ 0.1 - 100MOQ: 100 Pieces -
High Energy Rubber Magnetic Roll Cutting Flexible Magnet SheetsUS$ 0.1 - 1,000MOQ: 100 Pieces
-
Large Width Rubber Magnet China Manufacturer Flexible Magnet Sheets RollUS$ 0.1 - 1,000MOQ: 100 Pieces
-
Soft Magnetic Roll Flexible Magnet Sheet for CarsUS$ 0.1 - 1,000MOQ: 100 Pieces
-
Soft Dry Erase Magnet Sheets Printing Flexible Magnetic Sheet Roll Quality ChoiceUS$ 0.1 - 100MOQ: 100 Pieces
Magnetic dry erase magnet is made of ferrite magnet powder and synthetic rubber or plastic (CPE,NBR etc.) by Calendering process. Magnetic dry erase magnet can be bent, twisted, coiled, punched, and otherwise machined into almost any shape without loss of magnetic energy.
Sizes available
The standard sizes are materials with thickness(0.4mm, 0.5mm, 0.75mm, 1.5mm), width(620mm, 1000mm, 1270mm) and length(15m, 30.5m).
Special sizes could be easily produced upon request with limitations : Thickness: 0.15mm-8mm; Width: up to 1270mm wide. Length: up to 620m.
Surface Lamination
We are able to laminate various decorative material onto the non-magnetic face of flexible dry erase magnet, White PVC vinyl, Colourful PVC vinyl, PP vinyl, Double-sided self adhensive, dry wipe finish, etc. The magnetic face would always be coated with UV coating.
Magnetizing
Magnetic dry erase magnet is always multiple pole magnetized with magnetic pitch 2.0mm, 2.5mm, 3.0mm, 5.0mm, 7.0mm etc. Magnetic flexible magnet sheet could also be magnetized with single pole on one surface and magnetized thru thickness.
Working temperature & Flexibility
The working temperature is recommended from -26 degree to 71 degree. At 20 degree, the materials above can be coiled to a 12.7mm radius without cracking.
Magnetic properties of Magnetic sheet
| Grade | Residual Induction | Coercive Force | Intrinsic Coercive Force | Maximum Energy Product |
| Br | Hcb | Hcj | (BH)max | |
| mT | kA/m | kA/m | kJ/m3 | |
| [kGs] | [kOe] | [kOe] | [MGOe] | |
| FMS-1 | 150-170 | 95-111 | 151-159 | 4.0-5.6 |
| [1.5-1.7] | [1.2-1.4] | [1.9-2.0] | [0.5-0.7] | |
| FMS-2 | 230-260 | 167-183 | 191-278 | 10.4-12.8 |
| [2.3-2.6] | [2.1-2.3] | [2.4-3.5] | [1.3-1.6] |
