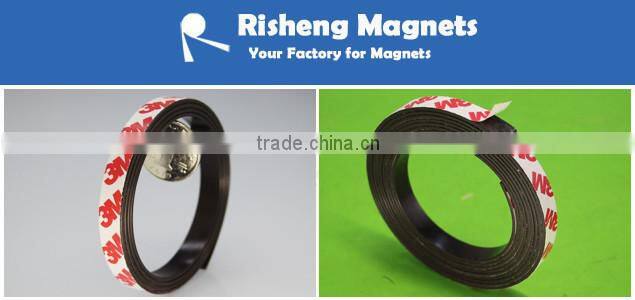

Help Center20mm Wide Flexible Magnet Tape With Strong Pull Force Magnet Strip
Related Products
-
Flexible Magnet Tape 1.5mm x 25.4mm x 30m UV Coating Applied Magnet StripUS$ 0.01 - 1,000MOQ: 100 Rolls -
50.8mm Wide Format Flexible Magnet Tape With High Quality 3M Self Adhesive Magnetic Strip Quality ChoiceUS$ 0.01 - 1,000MOQ: 100 Rolls
-
High Quality Flexible Magnet Tape Sold At Most Competitive Price Magnet StripUS$ 0.01 - 1,000MOQ: 100 Rolls
-
Strong Rubber Magnet Magnetic Sheet NeodymiumUS$ 0.01 - 1,000MOQ: 100 Pieces
-
Neodymium Flexible Magnet With AdhesiveUS$ 0.01 - 1,000MOQ: 100 Pieces
Magnet strip is made of ferrite magnet powder and synthetic rubber or plastic (CPE,NBR etc.) by Extrusion process. Magnet strip can be bent, twisted, coiled, punched, and otherwise machined into almost any shape without loss of magnetic energy.
Sizes available
The standard sizes are materials with thickness 1.5mm, width(12.7mm, 25.4mm) and length 215m. Special sizes could be easily produced upon request with limitations: Thickness: > 1mm; Length: up to 300m.
Surface Lamination
We are able to laminate various decorative material onto the non-magnetic face of magnet strip, White PVC vinyl, Colourful PVC vinyl, PP vinyl, Double-sided self adhensive, dry wipe finish, etc. The magnetic face would always be coated with UV coating.
Magnetizing
Magnetic strip is always multiple pole magnetized with magnetic pitch 3.175mm.
Working temperature & Flexibility
The working temperature is recommended from -26 degree to 71 degree. At 20 degree, the materials above can be coiled to a 12.7mm radius without cracking.
Magnetic properties of Magnet strip
| Grade | Residual Induction | Coercive Force | Intrinsic Coercive Force | Maximum Energy Product |
| Br | Hcb | Hcj | (BH)max | |
| mT | kA/m | kA/m | kJ/m3 | |
| [kGs] | [kOe] | [kOe] | [MGOe] | |
| FME-1 | 160-210 | 130-170 | 210-300 | 4.8-6.5 |
| [1.6-2.1] | [1.3-1.7] | [2.1-3.0] | [0.6-0.8] |
