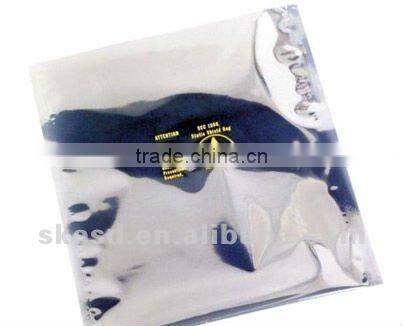

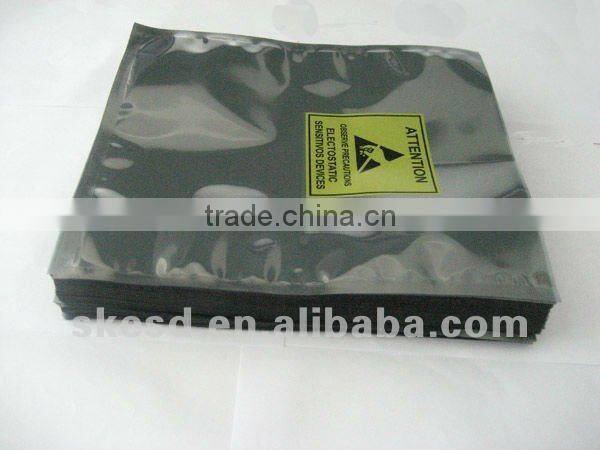

Help CenterStatic Shield Bag / Metal-out Open End
Related Products
-
Zip Lock Design Transparent Anti-static Shieding BagsUS$ 0.011 - 0.25MOQ: 5000 Pieces -
Translucent Anti-static ESD Shielfing Packaging BagsUS$ 0.011 - 0.25MOQ: 5000 Pieces
-
Cleanroom Environments and Open Top Metal-In Static Shielding Bag for Electronics PackagingUS$ 0.011 - 0.25MOQ: 5000 Pieces
-
Open Top Antistatic Shielding BagsUS$ 0.011 - 0.2MOQ: 5000 Pieces
-
Antistatic Esd PE BagsUS$ 0.1 - 0.5MOQ: 5000 Pieces
Specifications
1.Structure: APET/CPP2.Surface resistance: 10^8--10^10Ohm
3. Offer free samples
Specially designed for dry packaging of moisture-sensitive electronic components. IC circuit board, semi-conductor electronics.
The kind of bag can keep static-sensitive components away from the potential static danger to the largest extent.
Its special four -layer structure can create such effect as an inductive cover to separate the goods inside from the static field.
Furthermore, the inner layer is made from ethane which can remove the static and avoid static generation inside the bag.
In addition, this kind of hot seal bag is transparent, so the goods inside can be easily recognized from outside. And the surface resistance: 1081010Ω.
Features:
1) Anti-static bags are made from complex materials, silver laminated, (PET / VMPET / anti-static PE)2) Can be anti-static and static shielding
3) Provides protections for electronic components
4) Suitable for packing static sensitive parts, such as computer hardware, and CPU.
| No. | Item | Unit | Test standard and index |
| 1 | Metal layer resistance | ohm/sq | <100 |
| 2 | Metal layer optical transmission | Optical density | 40%-0.4 optical density |
| 3 | Surface resistivity | Ohm/sq | <1010 |
| 4 | Time for static removal | 5000-0V | <0.01 Sec. FTMS 101 B Method 4046 |
| 5 | Friction static | E1A541 Appendix C | TriboelectricNanocouIombs |
| Avg. | Quartz<13n/in Tefion.<13n/in | ||
| 6 | Capacitance release | Voltage difference -E1A541 | <10V |
| 7 | Anti-erosion | FTMS 101 C | No visible spots FTMS 101 C Method 3005 |
| 8 | Tensile strength | Ibs./in | ASTM D882 >18 |
| 9 | Tear initiation | Ibs./in | ASTM D1004 >2.5 |
| 10 | Puncture resistance | P.S.I | ASTM D3420 >100 |
| 11 | Tear resistance | Ibs./in | ASTM D882 > 8 |
| 12 | MVTR | gm/100in-2/24hrs | ASTM E 96 <0.2 |
| 13 | Oxygen barrier | CC/100in-2/24hrs | ASTM D 3985 <0.5 |
| 14 | Heat seal temperature | F | 250-375F |
| 15 | Heat seal pressure | P.S.I | 30-70 |
| 16 | breaking tensile force N/15mm | N/15mm | GB/96-04-10 |
| 17 | Breaking elongation rate | % | GB/96-04-10 |
| 18 | Size | GB/96-04-10 | Thickness ±10%; length ±3 mm; width ±2 mm |
| 19 | Appearance | GB/96-04-10 | No delamination, burst seal, wrinkle, warp, break, foreign particle adherence, air bubble beyond sealing diameter≤3mm |
