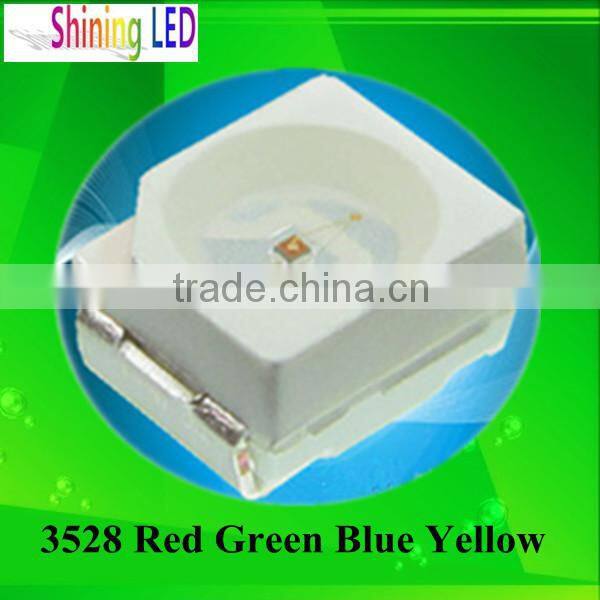

Shenzhen Manufacturer 1.8-2.4V SMD 0.06W 3528 LED Chip Red
- 500000000 Piece / Pieces per Month
- Shenzhen
- Credit Card
- 1.8-2.4V SMD 0.06W 3528 LED Diode Red
- Single Color 1.8-2.4V 620-630nm SMD 0.06W 3528 LED Diode Red
- Datasheet Single Color 620-630nm SMD 0.06W 3528 LED Diode Red
- Specifications Single Color Yellow Green Blue SMD 0.06W 3528 LED Diode Red
- Yellow Green Blue SMD 0.06W 3528 Red LED Specifications
- 2000 pcs/reel PLCC-2 SMD 0.06W 3528 Red LED Specifications
Product Details
Model Number: | 3528 Red LED | Chip Material: | InGaN | Emitting Color: | Red |
Luminous Intensity: | 500-800MCD | Luminous Flux(lm): | . | Optical Attenuation(%): | 0.3 |
Power: | 0.06W | Power Dissipation: | 60 | Color Rendering Index(Ra): | 70 |
Color Temperature: | Red | Operating Temperature(℃): | -30, +85 | Storage Temperature(℃): | -40, +100 |
Place of Origin: | Guangdong, China | Brand Name: | SHINING | Certification: | CE |

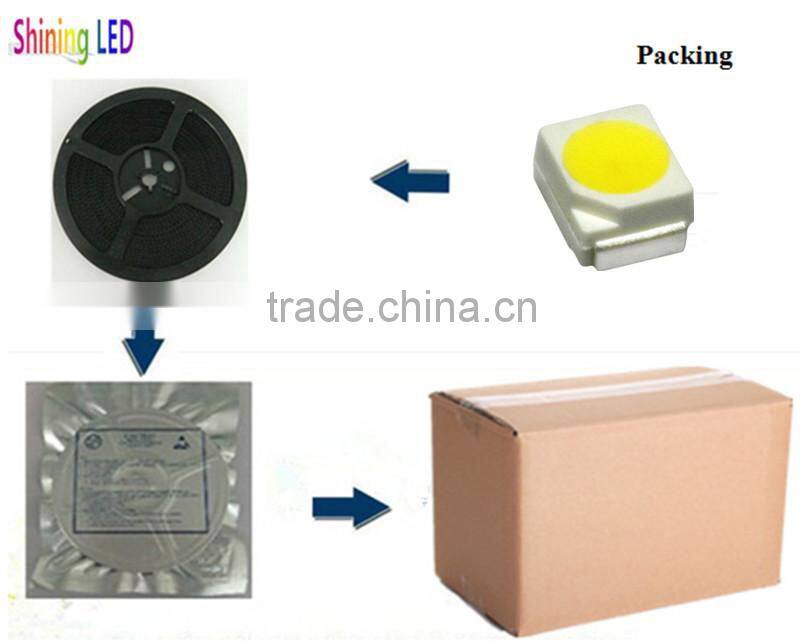

Packaging Details
2000 piece/reel.
Product Description
Specifications Single Color Yellow Green Blue SMD 0.06W 3528 LED Diode Red
SMD LED | Color | Luminous Intensity (min.-max.) | View Angle | Wavelength/CCT | Voltage | Current |
0603 | Red | 63-210mcd | 120° | 625-630nm | 1.8-2.4V | 60mA |
Amber (Orange) | 80-210mcd | 600-610nm | 2.0-2.5 | |||
Yellow | 80-260mcd | 568-575nm | 2.0-2.5 | |||
Green | 20-820mcd | 505-530nm | 3.0-3.4 | |||
Blue | 63-210mcd | 460-476m | 3.0-3.4 | |||
White | 500-1500mcd | 3500-25000K | 3.0-3.4 | |||
SMD LED | Color | Luminous Intensity (min.-max.) | View Angle | Wavelength/CCT | Voltage | Current |
0805 | Red | 63-200mcd | 120° | 625-630nm | 1.8-2.4V | 60mA |
Amber (Orange) | 80-200mcd | 600-610nm | 2.0-2.5 | |||
Yellow | 80-250mcd | 568-575nm | 2.0-2.5 | |||
Green | 20-810mcd | 505-530nm | 3.0-3.4 | |||
Blue | 63-250mcd | 460-476m | 3.0-3.4 | |||
White | 500-1500mcd | 3500-25000K | 3.0-3.4 | |||
SMD LED | Color | Luminous Intensity (min.-max.) | View Angle | Wavelength/CCT | Voltage | Current |
1206 | Red | 63-200mcd | 120° | 625-630nm | 1.8-2.4V | 60mA |
Amber (Orange) | 80-200mcd | 600-610nm | 2.0-2.5 | |||
Yellow | 80-250mcd | 568-575nm | 2.0-2.5 | |||
Green | 20-810mcd | 505-530nm | 3.0-3.4 | |||
Blue | 63-200mcd | 460-476m | 3.0-3.4 | |||
White | 500-1500mcd | 3500-25000K | 3.0-3.4 | |||
SMD LED | Color | Luminous Intensity (min.-max.) | View Angle | Wavelength/CCT | Voltage | Current |
5630/5730 | Red | 20-25lm | 120° | 625-630nm | 1.8-2.4V | 150mA |
Yellow | 22-27lm | 568-575nm | 2.0-2.5V | |||
Amber (Orange) | 22-27lm | 600-610nm | 2.0-2.5V | |||
Blue | 11-20lm | 460-475nm | 3.0-3.4V | |||
Green | 10-50lm | 505-530nm | 3.0-3.4V | |||
White | 50-70lm | 3500-25000K | 3.0-3.6V | |||
SMD LED | Color | Luminous Intensity (min.-max.) | View Angle | Wavelength/CCT | Voltage | Current |
3528 | Red | 100-750mcd | 120° | 625-630nm | 1.8-2.4V | 60mA |
Green | 20-850mcd | 505-530nm | 3.0-3.4 | |||
Blue | 63-300mcd | 460-476m | 3.0-3.4 | |||
White | 6-9lm | 3500-25000K | 3.0-3.4 | |||
3528 RGB | Red | 100-750mcd | 625-630nm | 1.8-2.4V | ||
Green | 20-850mcd | 505-530nm | 3.0-3.4 | |||
Blue | 63-300mcd | 460-476m | 3.0-3.4 | |||
SMD LED | Color | Luminous Intensity (min.-max.) | View Angle | Wavelength/CCT | Voltage | Current |
5050 | Red | 500-2000mcd | 120° | 625-630nm | 1.8-2.4V | 60mA |
yellow | 400-2000mcd | 568-575nm | 2.0-2.5V | |||
Amber (Orange) | 500-2000mcd | 600-610nm | 2.0-2.5V | |||
Blue | 800-2500mcd | 460-475nm | 3.0-3.4V | |||
Green | 400-4500mcd | 505-530nm | 3.0-3.4V | |||
white | 18-30lm | 3500-25000K | 3.0-3.4V | |||
5050RGB | R: 500-2000mcd | 625-630nm | 1.8-2.4V | |||
G: 1500-4500mcd | 505-530nm | 3.0-3.4V | ||||
B: 800-2500mcd | 460-475nm | 3.0-3.4V |
Competitive Advantages of our LEDs:
- Good quality guarantee, 50000 hours lifespan, 2 years warranty.
- Professional engineers and experienced workers.
- Short delivery time, normally only 2-6 working days.
- Customized specifications available in CCT, CRI, Lumen, VF, Color , etc.
- Various module type, such as SMD LED 2835 , 5630 , 3014 , 5730 , 7020 , 4014 , 2323 , 3030 , 3535 , 1W high power LED , 1-300W integrated LED / COB LED, Diode etc.
Our Services:
- Reply your inquiry in 24 working hours
- Well-trained and experienced staffs to answer all your inquiries in fluent English.
- Strict quality control procedures before shipment.
- Customized design is available.OME and ODM are welcomed
- Delivery the goods to our customer all over the world with speed and precision.
