Home > Lights & Lighting > LED Encapsulation Series > SMD LED > Shenzhen Manufacturer PLCC-4 0.06W Common-anode 3528 RGB SMD LED High Brightness

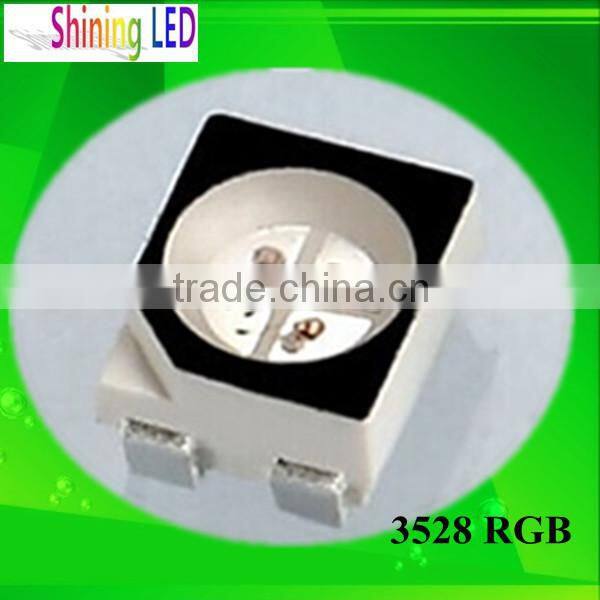

Shenzhen Manufacturer PLCC-4 0.06W Common-anode 3528 RGB SMD LED High Brightness

Name: Shenzhen Manufacturer PLCC-4 0.06W Common-anode 3528 RGB SMD LED High Brightness
Brand: SHINING
SKU: 122432611
Availability: InStock

Shenzhen Manufacturer PLCC-4 0.06W Common-anode 3528 RGB SMD LED High Brightness thumbnail-1

Shenzhen Manufacturer PLCC-4 0.06W Common-anode 3528 RGB SMD LED High Brightness photo-1

US$ 0.01 - 0.06 MOQ: 2000 Pieces

Key Specifications

Get Latest Price

Model Number:

3528 RGB SMD LED

Chip Material:

InGaN

Emitting Color:

Tri-Color(Red-Blue-Green)

Contact Supplier Request Quote Chat Now

Shenzhen Shining Opto-Electronic Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Model Number 3528 RGB SMD LED

Chip Material InGaN

Emitting Color Tri-Color(Red-Blue-Green)

Luminous Intensity R: 200-300MCD; G: 600-800MCD; B: 150-250MCD

Luminous Flux(lm) .

Optical Attenuation(%) 0.3

Power 0.06W

Power Dissipation 60

Color Rendering Index(Ra) 70

Color Temperature RGB

Operating Temperature(℃) -30, +85

Storage Temperature(℃) -40, +100

Place of Origin Guangdong, China

Brand Name SHINING

Certification CE

Shenzhen Manufacturer PLCC-4 0.06W Common-anode 3528 RGB SMD LED High Brightness

SMD LED	Color	Luminous Intensity (min.-max.)	View Angle	Wavelength /CCT	Voltage	Current
0603	Red	63-210mcd	120°	625-630nm	1.8-2.4V	60mA
	Amber (Orange)	80-210mcd		600-610nm	2.0-2.5
	Yellow	80-260mcd		568-575nm	2.0-2.5
	Green	20-820mcd		505-530nm	3.0-3.4
	Blue	63-210mcd		460-476m	3.0-3.4
	White	500-1500mcd		3500-25000K	3.0-3.4
SMD LED	Color	Luminous Intensity (min.-max.)	View Angle	Wavelength /CCT	Voltage	Current
0805	Red	63-200mcd	120°	625-630nm	1.8-2.4V	60mA
	Amber (Orange)	80-200mcd		600-610nm	2.0-2.5
	Yellow	80-250mcd		568-575nm	2.0-2.5
	Green	20-810mcd		505-530nm	3.0-3.4
	Blue	63-250mcd		460-476m	3.0-3.4
	White	500-1500mcd		3500-25000K	3.0-3.4
SMD LED	Color	Luminous Intensity (min.-max.)	View Angle	Wavelength /CCT	Voltage	Current
1206	Red	63-200mcd	120°	625-630nm	1.8-2.4V	60mA
	Amber (Orange)	80-200mcd		600-610nm	2.0-2.5
	Yellow	80-250mcd		568-575nm	2.0-2.5
	Green	20-810mcd		505-530nm	3.0-3.4
	Blue	63-200mcd		460-476m	3.0-3.4
	White	500-1500mcd		3500-25000K	3.0-3.4
SMD LED	Color	Luminous Intensity (min.-max.)	View Angle	Wavelength /CCT	Voltage	Current
5630/5730	Red	20-25lm	120°	625-630nm	1.8-2.4V	150mA
	Yellow	22-27lm		568-575nm	2.0-2.5V
	Amber (Orange)	22-27lm		600-610nm	2.0-2.5V
	Blue	11-20lm		460-475nm	3.0-3.4V
	Green	10-50lm		505-530nm	3.0-3.4V
	White	50-70lm		3500-25000K	3.0-3.6V
SMD LED	Color	Luminous Intensity (min.-max.)	View Angle	Wavelength /CCT	Voltage	Current
3528	Red	100-750mcd	120°	625-630nm	1.8-2.4V	60mA
	Green	20-850mcd		505-530nm	3.0-3.4
	Blue	63-300mcd		460-476m	3.0-3.4
	White	6-9lm		3500-25000K	3.0-3.4
3528 RGB	Red	100-750mcd		625-630nm	1.8-2.4V
	Green	20-850mcd		505-530nm	3.0-3.4
	Blue	63-300mcd		460-476m	3.0-3.4
SMD LED	Color	Luminous Intensity (min.-max.)	View Angle	Wavelength /CCT	Voltage	Current

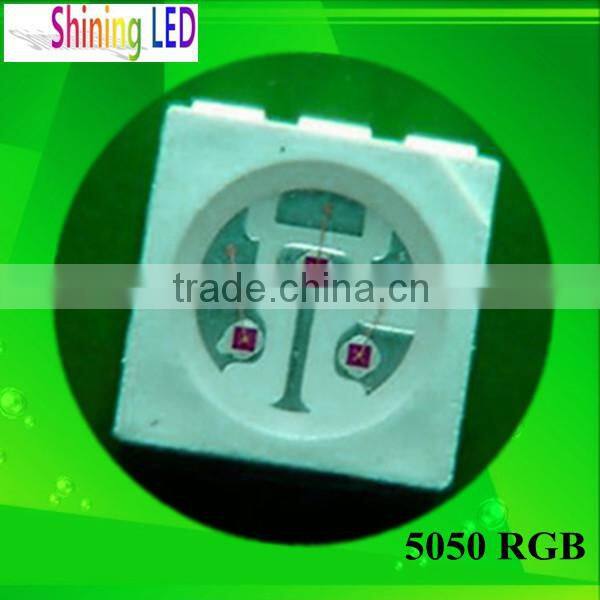

5050	Red	500-2000mcd	120°	625-630nm	1.8-2.4V	60mA
	yellow	400-2000mcd		568-575nm	2.0-2.5V
	Amber (Orange)	500-2000mcd		600-610nm	2.0-2.5V
	Blue	800-2500mcd		460-475nm	3.0-3.4V
	Green	400-4500mcd		505-530nm	3.0-3.4V
	white	18-30lm		3500-25000K	3.0-3.4V
	5050RGB	R: 500-2000mcd		625-630nm	1.8-2.4V
		G: 1500-4500mcd		505-530nm	3.0-3.4V
		B: 800-2500mcd		460-475nm	3.0-3.4V
