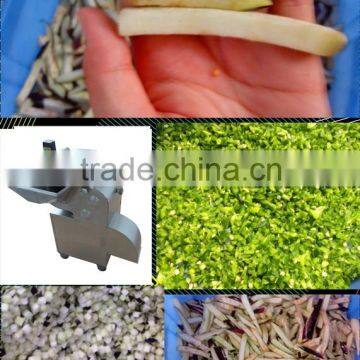

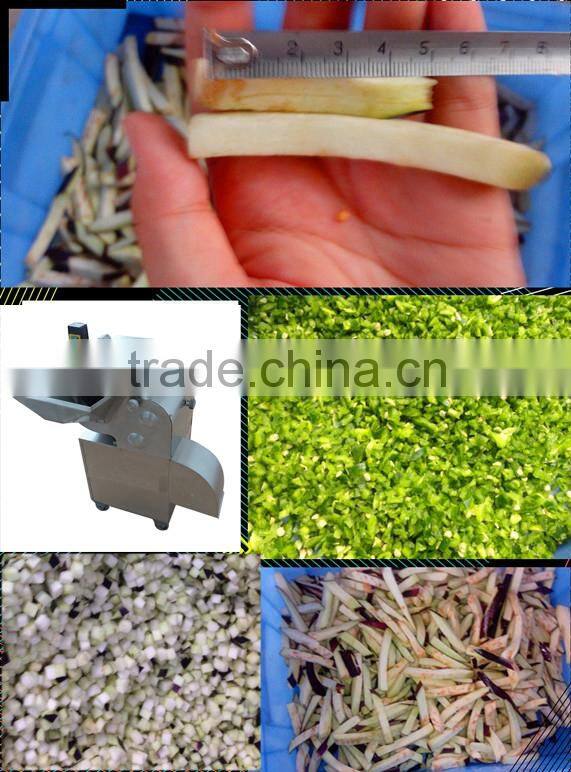

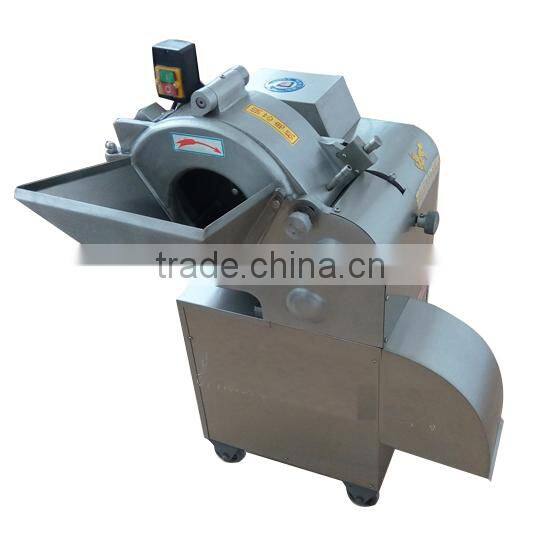

The CHD100 dicing machine details:
The CHD100 dicing machine is suitable for processing all kinds of vegetables, frozen vegetable processing factory and food pickles industry .it makes root and tuber vegetables into cubes or rectangules . Such as: potatoes,carrot, taro, sweet potato, onion, green pepper, ginger and fruits etc.
Characteristics:
2. the machine frame, shell, hopper and the main components are made of aluminum magnesium alloy and stainless steel. In order to ensure the long-term work and nocorrosion, non-toxic characteristics.
3.principle:
CHD100 type dicing machine dial is driven to cut high speed rotating objects,the use of objects by means of centrifugal force, vertical knife will be cut into pieces of objects, and then through the disc cutter and cut into strips, and will cut the material to a transverse cutting knife, a cubic or cuboid by transverse cutter cut to desired.
preparation before operation and inspection:
1.we will feed hopper with screws on the casing inlet (for convenient packing and transportation hopper remove)
2.we would check whether there is a foreign body inside the shell, will remove the shell body,otherwise easy to cause the blade damage.
3.PLS clean operation area, check the power supply voltage is consistent with this machine use voltage, to find a professional electrician will machine power supply line is connected in the all pole disconnection from the big switch, earthing symbol isreliable ground connection. The switch is switched on, press the "start" button, to check whether the correct (face turntable, clockwise for the right), otherwise, cut off the power supply adjustment wiring.
4. through water, as for use.
5. when the machine works, never put your hands and other foreign objects into thehousing, in order to avoid danger.
Operation:
1 .first of all, we should be washed to the complex material cut, if the cut material mixed with sand and mud, knife edge and the knife plate is easy to damage and blunt.Maximum cutting diameter should not exceed 80mm, if more than this diameter shall be cut into small pieces.
2. Closed switch and shell doors, closed pressure safety switch , the shell do not close the door in place, not pressing the switch , the line is engaged, the motor can not run.
3. we will be cut the material from the hopper into the shell, the dial is under the action of vertical knife, cutting to the required thickness, followed by disc cutter knife cut into strips, finally is cut off a knife cut into the box.
Specifications:
1.Cut various fruits and vegetables
2.Can Cut different size
3.Stainless Steel Material
4.Customized machinery.
| Model | Current | Output Capacity | Net Weight | Dimension(L*W*H) | |
| CHD100 | 220V/50Hz/750W | 380V/50Hz/750W | 1000kg/h | 100kg | 690*580*950 mm |
Factory show:
Packing & Shipping:
1) Packaging: we advise wooden frame case pacakge to avoid damage of the products.
2) Shipping: we advise sea shipping to save money, because the product is heavy and the package is big.
