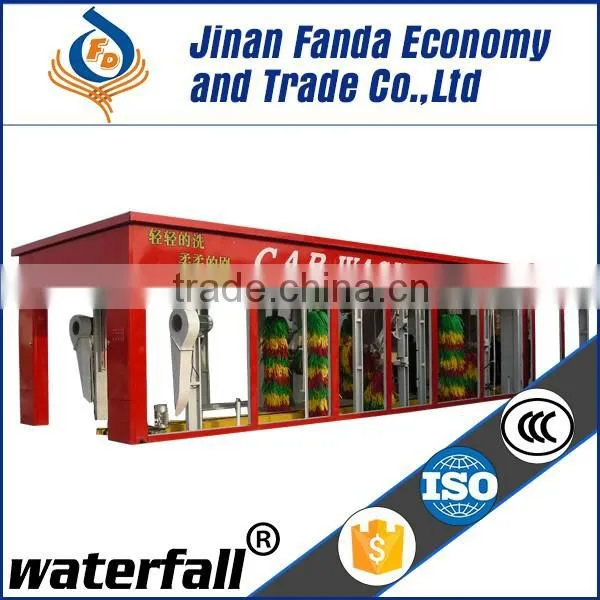

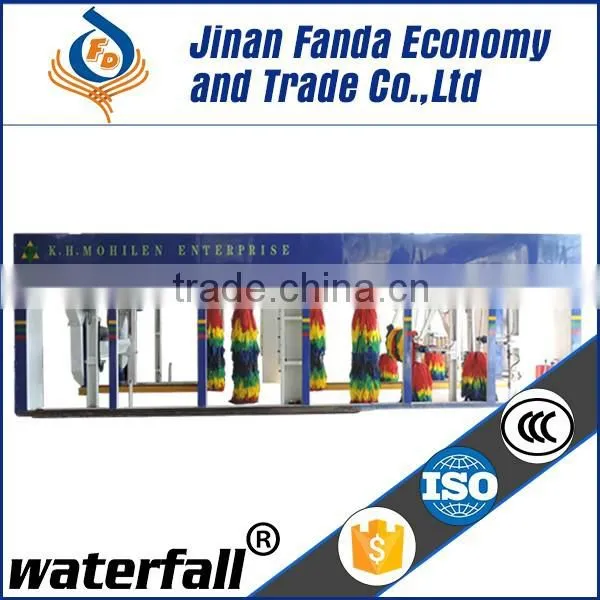

Automatic Car Wash Machine for Car Washing Machinery
Features of FD automatic tunnel car wash machine:

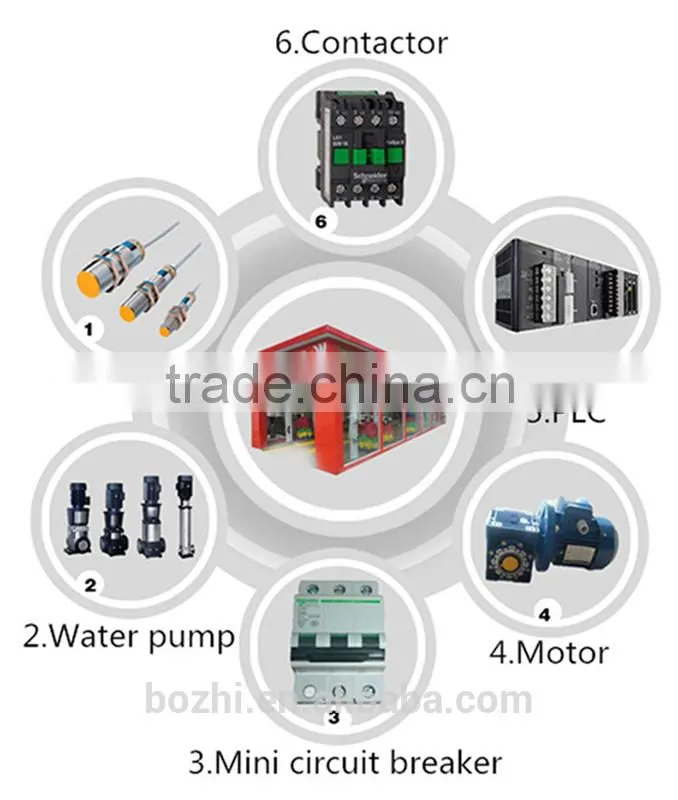

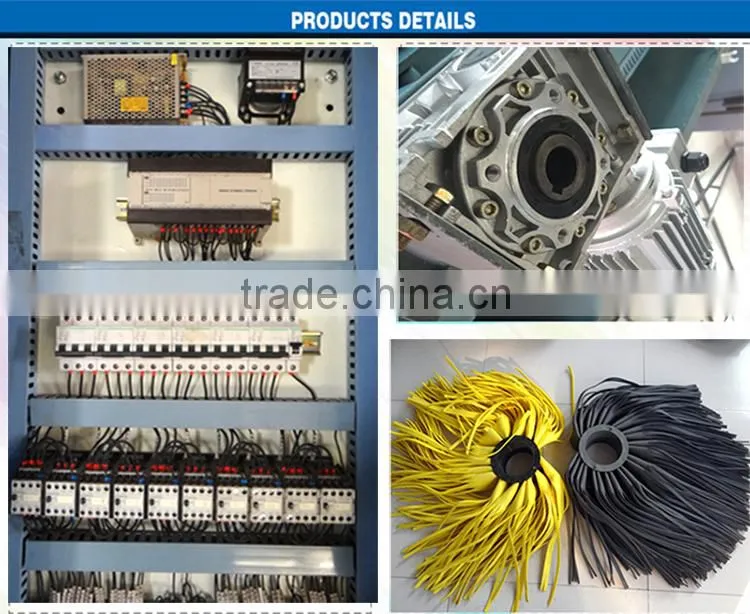

1.Adopt imported electrical components such as OMRON,LEUZE,Schneider guarantee the safe and stable performance 2.Fully automatic washing include bottom spraying, high-pressure pure water washing, foaming washing, automatic waxing and drying system
3. Fast washing speed
4. Advanced imported soft foam brushes,no scratch to the car surface
5. Hot dip galvanization steel or stainless steel frame
6. Optional water recycle system
Parameter of automatic tunnel car wash machine
Item |
FD07-2A |
Item |
FD07-2A |
Machine size |
10000×3800×2900 |
PLC |
Omron |
Track length |
10500 |
Frequency changer |
ADT AD3000 |
Maximum washing size |
7000×2300×2300 |
Touch screen |
Optional |
Power supply |
380V 50HZ |
Photoelectric switch |
Leuze Germany |
Total power |
28KW |
Approach switch |
Leuze Germany |
Water pump power |
4.5KW |
Relay |
Omron |
Drying system power |
22KW |
Power switch |
Omron |
Water confumption |
150L/vehicle |
Leakage protector |
CHNT |
Power consumption |
0.8kwh/vehicle |
Motor |
Huangyan IP64 |
Washing speed |
60seconds/vehicle |
Pump |
HUYI Shanghai |
Washing method |
brush rotation washing |
Brush quantity |
1 Top brush,4 big vertical brushes,2 small vertical brushes |
Bottom spraying |
Include |
High pressure water spraying method and pressure |
high pressure swing |
Foam washing |
Include |
Total weight |
2.6tons |
Auto waxing |
Include |
Packing size |
4000×1500×1600×2pieces |
Intelligent induction body distance |
Include |
Car adapted |
Sedan,business car,SUV,Minibus |

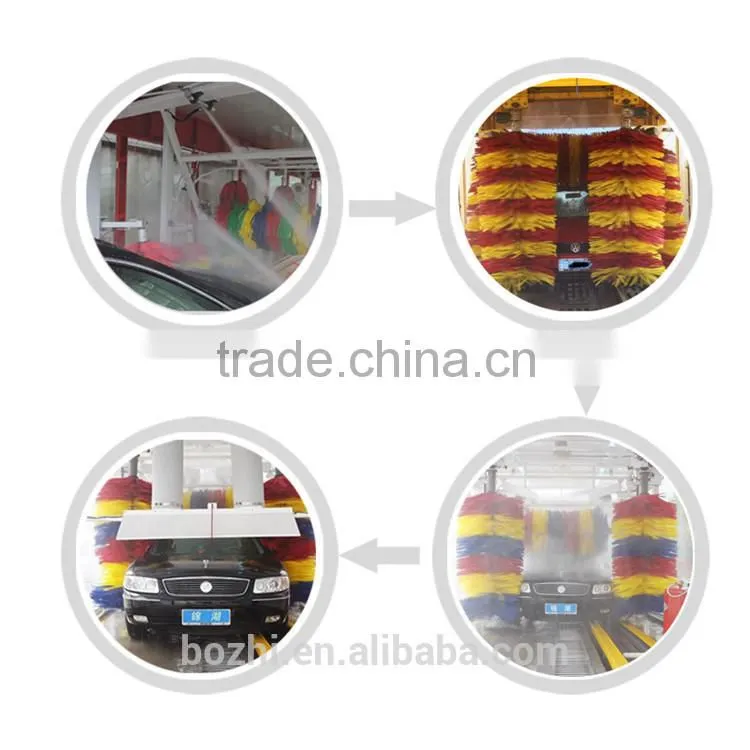

Washing Process
Rinse -- Foam -- Brush washing -- Wax -- Wind drying
The car is dragged forth by the track while the machine starts. Firstly High-pressure water washing system starts working to wash away the mud and dust, foaming system and multiple groups of brushed working based on PLC at the same time. Then the waxing pump sprays the special wax to the car, rust protecting and brightening up. Finally the drying system starts work. All the processes are finished.

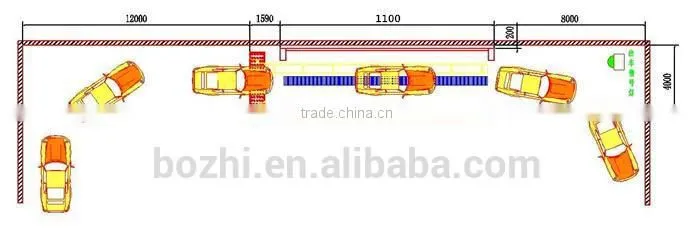

Installation size requirement for the automatic tunnel car wash machine
Besides the high quality machines, we also offer you professional after-sale service as follows:
Installation support:
Our technicians will be your place to install the machine for you if you need,within 7 days will complete the installations.
English documents support:
We provide English operating manual and DVD document for each machine .It is clear enough and easy for user to operate . It includes how to install ,how to maintain ,how to deal with it when any possible problems occur .
Life time technical support:
Our experienced customer support team will help you solve technical problems .We guarantee to respond to your inquiry within 24 hours, whether it comes by phone, mail or fax.
Parts support:
Any accessories is available ,we can deliver it to you when you demand it .
Payment term:30%
TT 30% in advance , balance payment before shipment.
Installation:
We arrange our technician to your place for assembling and training , just round air ticket and accommodation will be paid by your side . And the technician we will send two ,each person 50 usd per day, within 7 days can be finished installations.
Warranty:
One year warranty after the normal operation , life time technical,maintenance and parts support.
Maintenance:
We will give you the manual books for daily operation and maintain .If breakdown happens,if we can’t solve it by mail or phone,will be your place to handle it.
Parts:
We will leave some spare parts such as sensors,motors and so on to you for your replacement.If you need the list,feel free to let me know!
