Negotiable MOQ: 10 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Kingtone
Model Number:
UV-5R Walkie talkie
Contact Supplier Request Quote Chat Now
Quanzhou Kingtone Optics & Electronics Technology Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Kingtone
Model Number UV-5R Walkie talkie
Type Handheld
Dimensions 58x32x110mm
Frequency Range UHF + VHF 136-174MHz+400-480MHz
Storage Channel 128
Talk Range 5-10KM

Baofeng Radios Accessories, Car Charger, High Power Battery, Good Price High Gain Antenna



BAOFENG UV-5R The transcevier is a micro-miniature multiband

FM transceiver with extensive receive frequency coverage,
providing local-area two-way amateur communications along with unmatched monitoring capability





VHF/ UHF  DUAL-BAND TWO WAY RADIO

  • Frequency Range: 136-174 / 400-480MHz
  • Dual-Band Display, Dual Freq. Display, Dual-Standby
  • Output Power: 4 /1Watts
  • 128 Channels
    50 CTCSS and 104 CDCSS
  • Built-in VOX Function
  • 1750Hz Brust Tone
  • FM Radio (65.0MHz-108.0MHz)
  • LED Flashlight
  • Large LCD Display
  • Hight /Low RF Power Switchable
  • 25KHz/12.5KHz Switchable
  • Emergency Alert
  • Low Battery Alert
  • Battery Saver
  • Time-out Timer
  • Keypad Lock
  • Monitor Channel
  • Channel Step: 2.5/5/6.25/10/12.5/25KHz
  • ROGER SET





  Dual band, dual display, dual standby   A/B band independent operation
  128 groups channels storage  Shortcut menu operation mode
 VFO & Memory channels scan   Emergency Alarm
  Tri-color background light selectable   0~9 grades VOX selectable
 PTT & ANI ID   FM radio and 25 stations storage
 Voice companding   50 CTCSS/104 DCS
     PC programmable
  Wide/Narrow Band(25kHz/12.5kHz)   Transmitter time-out timer(TOT)
  High/Low TX power selectable   Busy channel lock-out(BCLO)





Specifications:



Item number UV-5R
General
Frequency Range 65-108MHz(FM Receive only)
136-174MHZ and 400-480HZ (TX/RX)
Channel No. 128
Frequency Stability ±2.5ppm
Antenna High gain DualBand  antenna
Antenna Impedance 50Ω
Operating Voltage DC 7.4V
Mode of operation  Simple or semi-duplex
Dimension(W x H x D) 100 x 52 x 32 mm
Weight 250g(including battery, antenna)
Transmitter
Output power 4W / 1W (Max 5W)
Modulation Mode 16kΦF3E / 11kΦF3E
Maximum deviation <5kHz(Wide) / <2.5kHz(Narrow)
Spurious Radiation <7μW
Adjacent Ch. power ≤-65dB(Wide) / ≤-60dB(Narrow)
Pre-emphasis characteristics 6dB
Current ≤1.6A(5W)
CTCSS/DCS deviation 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity 8-12mv
Intermediation distortion <10%





Earpiece / mic type : Kenwood Plug type
Antenna : SMA -Female











Two Way Radios Accessories: Car Charger Eliminitor, High Power Battery Replacement, High Gain Antenna, Microphone Speaker

Two Way Radios Accessories: Car Charger Eliminitor, High Power Battery Replacement, High Gain Antenna, Microphone Speaker

Two Way Radios Accessories: Car Charger Eliminitor, High Power Battery Replacement, High Gain Antenna, Microphone Speaker

















Two Way Radios Accessories: Car Charger Eliminitor, High Power Battery Replacement, High Gain Antenna, Microphone Speaker

Two Way Radios Accessories: Car Charger Eliminitor, High Power Battery Replacement, High Gain Antenna, Microphone Speaker













Each Set PACKAGE CONTAIN
  • 1 x UV-5R Blue (VHF136-174Mhz UHF 400-480Mhz)
  • 1 x 7.4V 1800mah Li-ion Battery Pack
  • 1 x Antenna 136-174/400-470Mhz
  • 1 x Belt Clip
  • 1 x ENG Manual
  • 1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
  • 1 x PTT Earpiece for free







If you feel like it, please contact us immediately. My contact details as below:

Two Way Radios Accessories: Car Charger Eliminitor, High Power Battery Replacement, High Gain Antenna, Microphone Speaker



two way radio accessories:

1.high gain antenna

2.battery replacement

3.earpiece.

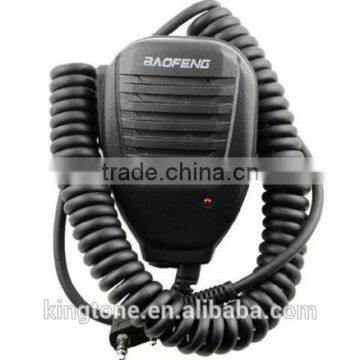

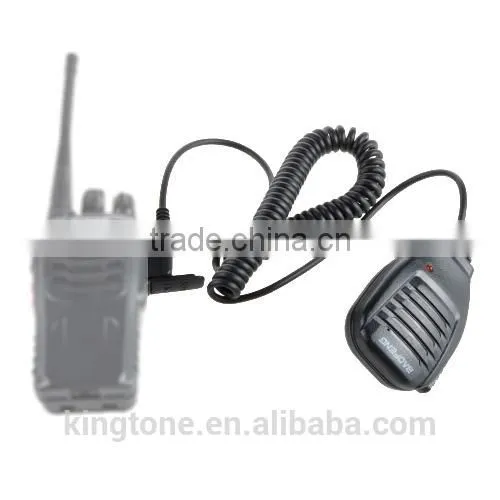

4.microphone speaker.

5.charger

6.car charger

tect cover kit
