Pofung UV-5R Interphone Cordless Phone Call- Walkie Talkie Long Range Two Way Radio

Pofung UV-5R Interphone Cordless Phone Call- Walkie Talkie Long Range Two Way Radio thumbnail-1
Pofung UV-5R Interphone Cordless Phone Call- Walkie Talkie Long Range Two Way Radio thumbnail-2
Pofung UV-5R Interphone Cordless Phone Call- Walkie Talkie Long Range Two Way Radio thumbnail-3
Pofung UV-5R Interphone Cordless Phone Call- Walkie Talkie Long Range Two Way Radio thumbnail-4
Pofung UV-5R Interphone Cordless Phone Call- Walkie Talkie Long Range Two Way Radio thumbnail-5
Pofung UV-5R Interphone Cordless Phone Call- Walkie Talkie Long Range Two Way Radio thumbnail-6
Pofung UV-5R Interphone Cordless Phone Call- Walkie Talkie Long Range Two Way Radio photo-1
Pofung UV-5R Interphone Cordless Phone Call- Walkie Talkie Long Range Two Way Radio photo-2
Pofung UV-5R Interphone Cordless Phone Call- Walkie Talkie Long Range Two Way Radio photo-3
Pofung UV-5R Interphone Cordless Phone Call- Walkie Talkie Long Range Two Way Radio photo-4
Pofung UV-5R Interphone Cordless Phone Call- Walkie Talkie Long Range Two Way Radio photo-5
Pofung UV-5R Interphone Cordless Phone Call- Walkie Talkie Long Range Two Way Radio photo-6
US$ 33.5 - 34 MOQ: 100 Sets
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Kingtone
Model Number:
BF UV5R
Contact Supplier Request Quote Chat Now
Quanzhou Kingtone Optics & Electronics Technology Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Kingtone
Model Number BF UV5R
Type Handheld
Dimensions 58x32x110mm
Frequency Range UHF + VHF 136-174MHz+400-480MHz
Storage Channel 128
Talk Range 5-10KM

Pofung UV-5R Interphone, Cordless Phone Call- walkie talkie, Long range two way radio



Description:

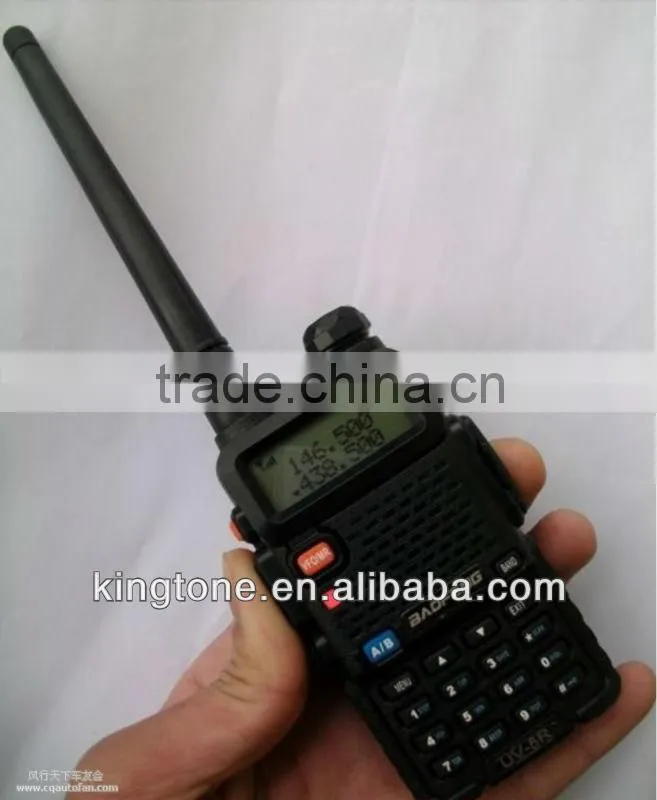

This BAOFENG UV-5R Walki Talki is a micro-miniature multiband FM transceiver with extensive receive frequency coverage, providing local-area two-way amateur communications along with unmatched monitoring capability.

Product Features:



  • Frequency Range: 136-174 / 400-480MHz
  • Dual-Band Display, Dual Freq. Display, Dual-Standby
  • Output Power: 4 /1Watts
  • 128 Channels50 CTCSS and 104 CDCSS
  • Built-in VOX Function
  • 1750Hz Brust Tone
  • FM Radio (65.0MHz-108.0MHz)
  • LED Flashlight
  • Large LCD Display
  • Hight /Low RF Power Switchable
  • 25KHz/12.5KHz Switchable
  • Emergency Alert
  • Low Battery Alert
  • Battery Saver
  • Time-out Timer
  • Keypad Lock
  • Monitor Channel
  • Channel Step: 2.5/5/6.25/10/12.5/25KHz
  • ROGER SET



Specification:



General Specifications

Frequency Range VHF:136-174MHz  245-246MHz
UHF:400-480MHz  350-390MHz
       465-520MHz
Frequency stability ±2.5ppm
Rated voltage DC7.2V (Rechargeable lithium battery)
Memory channels 2x128 channels
Antenna configuration   Add a sense antenna
Antenna impedance 50 Ω
Work method

The same frequency simplex

or different frequency simplex
Size(H*L*W) 110*58*32mm (without antenna)



                                   The transmit section

Output power (high / low) VHF:5W / 1W UHF:5W / 1W
Modulation (broadband / narrowband) 16KF 3E / 11KF 3E
Maximum frequency deviation (broadband / narrowband) ≤5KHz / ≤2.5KHz
Adjacent channel power ≤-65dB / ≤60dB
Spurious power ≤7.5uV
Pre-emphasis characteristic 6dB
Emission current ≤1.6A(5W)
CTCSS/CTCSS frequency deviation (broadband / narrowband) 0.5KHz±0.1KHz, 0.4KHz±0.1KHz
Modulation sensitivity 8-12mV
Modulation distortion <5%



                                    The receive section

Reference sensitivity -122dBm(12dB SINAD)
Audio power 1W
Audio distortion <10%
Block ≥85dB

Intermodulation

(broad band / narrow band)

 ≥60dB  /  ≥55dB

Adjacent Channel Selectivity

(Wide / narrow)

 ≥65dB  /  ≥60dB
Clutter suppression ≥65dB

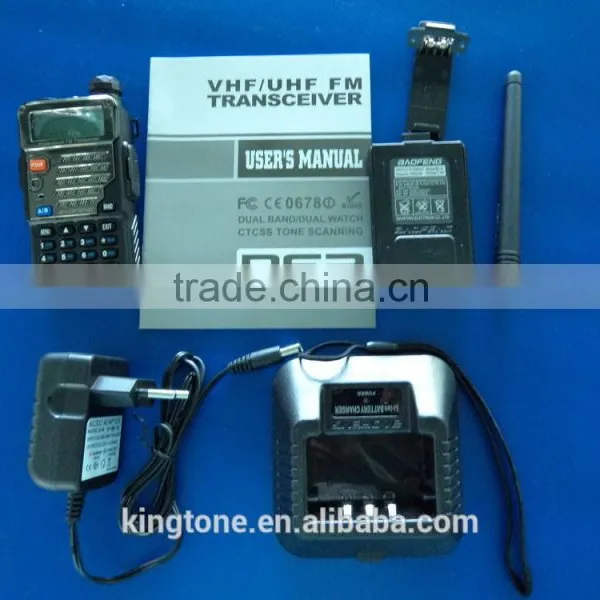

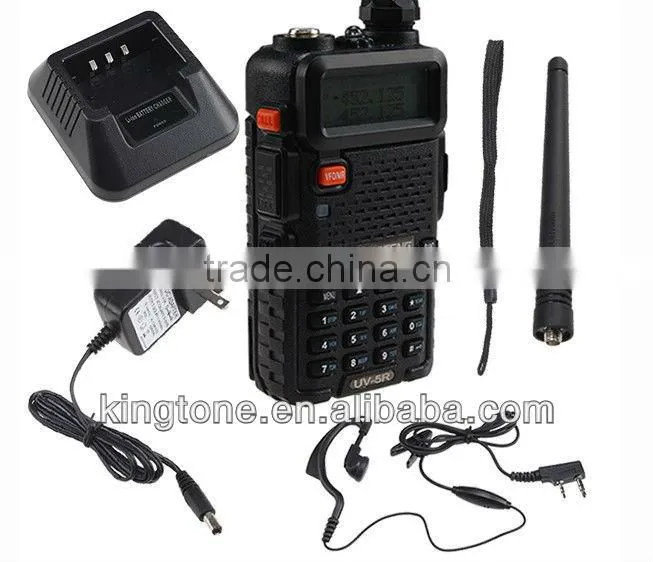

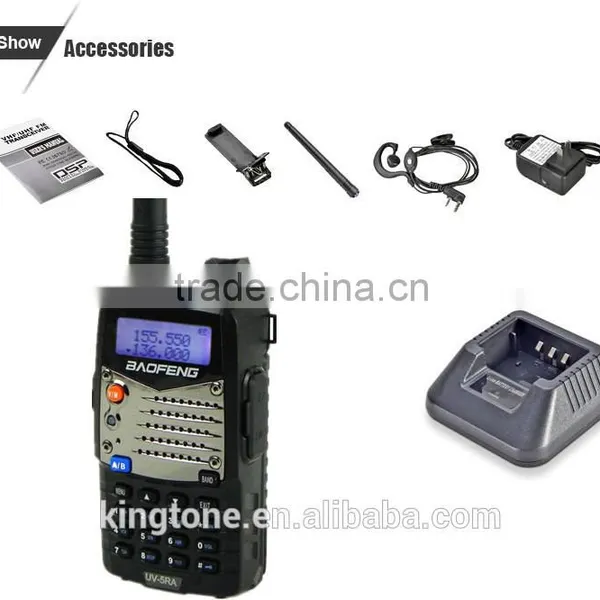

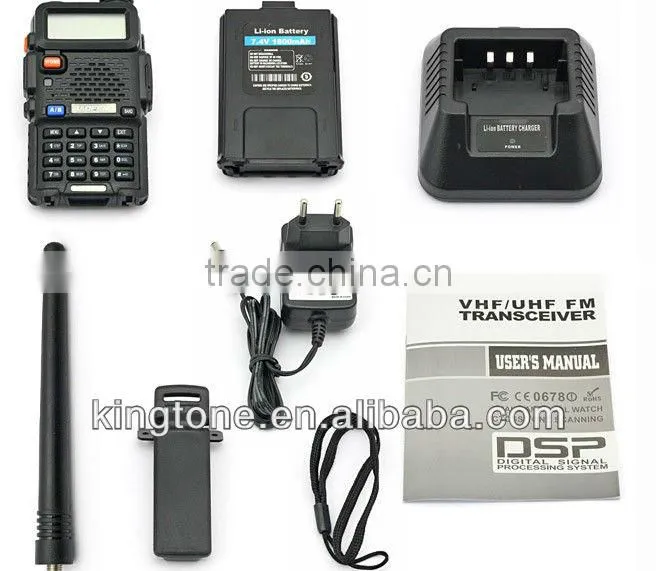

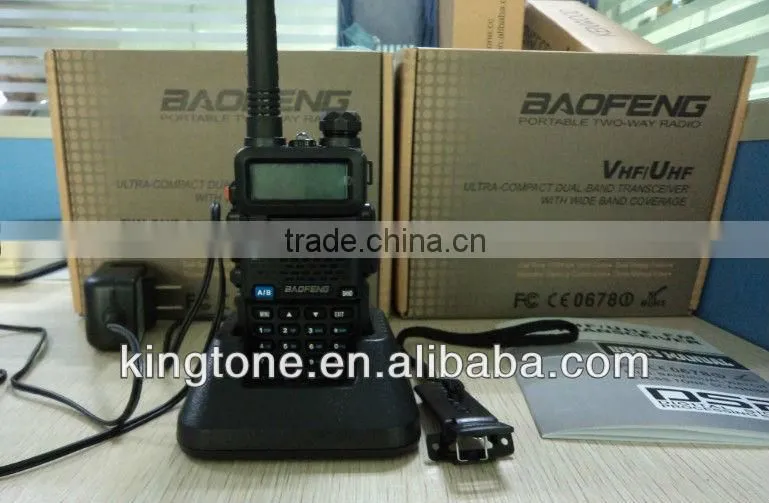

◊ Standard Accessories

Item                                 Quantity
Antenna 1
Li-ion Battery Pack      1
Adapter  1
Charger 1
Belt Clip 1
User's Manual 1







Pofung UV-5R Interphone Cordless Phone Call- walkie talkie Long range two way radioPofung UV-5R Interphone Cordless Phone Call- walkie talkie Long range two way radioPofung UV-5R Interphone Cordless Phone Call- walkie talkie Long range two way radioPofung UV-5R Interphone Cordless Phone Call- walkie talkie Long range two way radioPofung UV-5R Interphone Cordless Phone Call- walkie talkie Long range two way radioPofung UV-5R Interphone Cordless Phone Call- walkie talkie Long range two way radio
