Ball Fiber and Foam Pillow Filling Machine

Name: Ball Fiber and Foam Pillow Filling Machine
Brand: LION
SKU: 122408883

US$ 10,000 - 500,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Automatic Grade:

Automatic

Place of Origin:

Shandong, China

Qingdao Lion Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Automatic Grade Automatic

Place of Origin Shandong, China

Brand Name LION

Model Number QL1000-BF-2

Certification CE

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

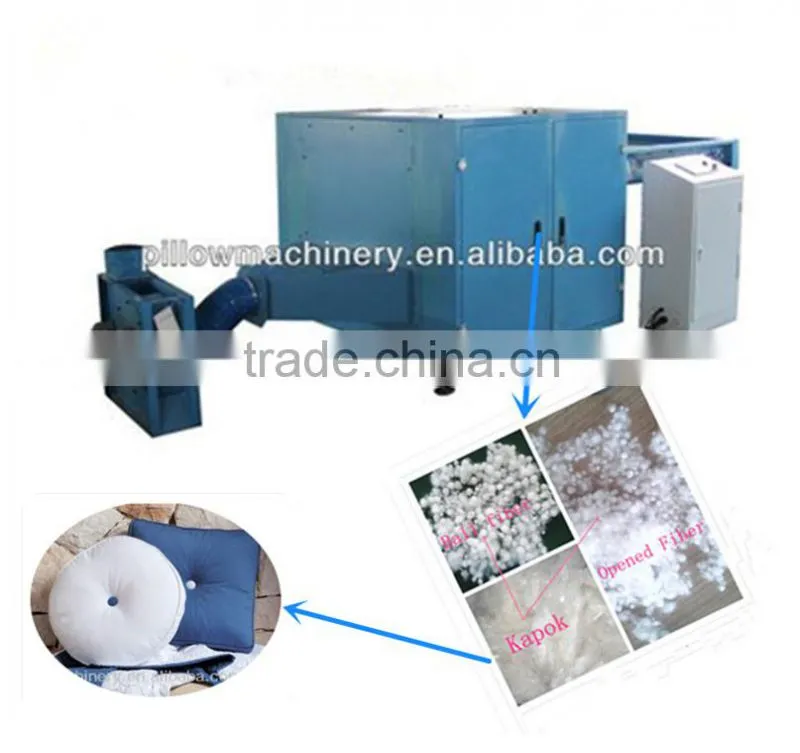

fiber ball and foam pillow filling machine
1.PLC: Siemens brand
2..High quality,low price
3.Good after-service

fiber ball and foam pillow filling machine

Item no.: QL1000-BF-2

Layout Dimension: 15000*6000*3600mm

Equipment: Bale opener--3-way blower--Feeding hopper*2-- Ball fiber machine*2--Blower*2--Mixer--Operation table

Voltage: 380v 50Hz 3phase (orderable)

Power: 45.75kw

PLC: Siemens

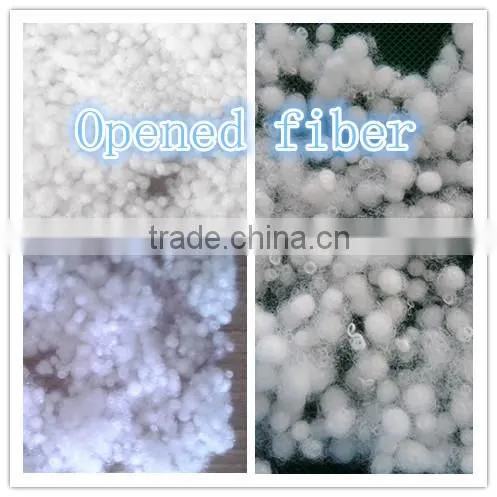

Material: Conjugate hollow siliconized polyester fiber 7D/15D * 51/64mm

Air pressure: 0.6-0.8Mpa

Capacity: Min.160-240kg/h

Operator: 1 person

Weight: Min. 5.5ton

Description:

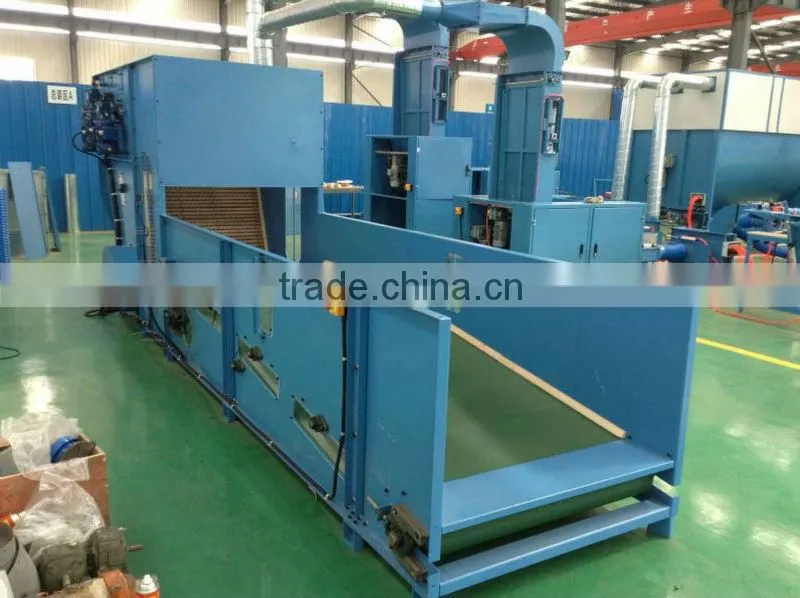

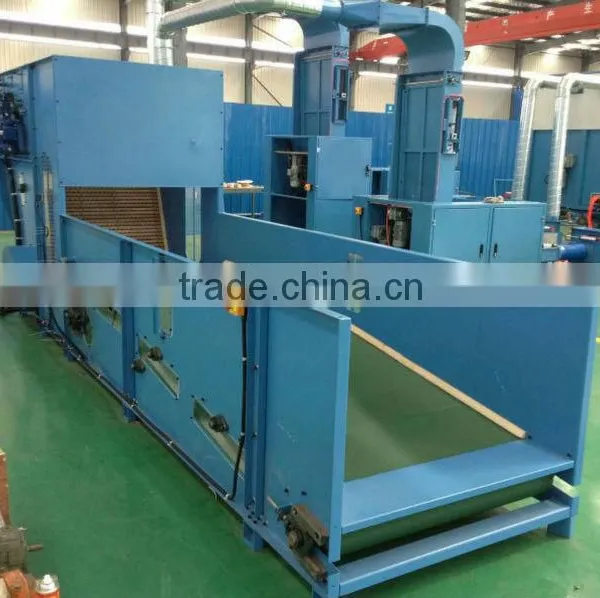

The whole line is assembled with an automatic bale opener which is developed recently; Fiber blower 3 way device; 2 sets of ball fiber machine; a fiber storage and automatic filling table.
The 2 sets of ball fiber machine is running all the same time to achieve enough capacity.
Put a whole bale raw material of fiber into the bale opener which will be transported to the ball fiber machines separately and automatically controlled by PLC control system.
The whole line can be handled by only one operator working at the filling tables.
First of all set up the producing time from the control screen according to the ball fiber size required; note that the longer time the smaller size.
The second sent up the filling time from the control screen according to the production filling quantity after testing, such like pillow 50*70cm with 600g and the filling time can be around 10second and so on.
There are 2 operation functions in the control program which is adjustable filling time set up and filling time controlled by foot switch manually.
