| Place of Origin: | Fujian China (Mainland) |
Brand Name: | Pofung |
Model Number: | baofeng UV-5R D |
| Type: | Handheld,dual band baofeng radio |
Dimensions: | 110*58*32mm |
Frequency Range: | UHF + VHF 136-174MHz+400-520mhz |
| Storage Channel: | 128 |
Talk Range: | 5-10KM |
baofeng original: | UV-5RD |
| Product name: | baofeng |
Color:: | Black,Camo,Blue,Red,Yellow |
.FPOWER Rating: | 5w baofeng uv-5r |
| Opertate Voltage: | 7.2V |
Standard Battery: | 1800mAH |
certificate: | ce fcc rohs certificate |
| Weight: | 250g |
Standard Accessory: |
Specifications
CE handheld uv-5r dual band
Large Half Dot Matrix LCD Display
Tri-Color LCD Illuminaton
Dual Band dual frequency standby and Display
128 Channels, 3 Types Channel scan
Priority Channel Scan
50 CTCSS/214DCS Encode &Decode And 1 Group User Defined CTCSS/DCS
8 Groups of Voice Scrambler
Voice Compandor
High/ Low Power Switchable
DTMF, MSK Signaling
Selective Call, Group Call
Remote Kill, Group Call
Programmable 25kHz/12.5kHz Channel Spacing
Voice Operated Transmit VOX
Squelch Tail Elimination
Time Out Timer
Crystal Audio FM Radio
Technical Specification of BAOFENG UV-5RD
Model |
BAOFENG POFUNG UV-5RD |
Color |
Black |
Dual band / dual display / dual standby |
A/B band independent operation( UV UU VU VV ) VHF136-174Mhz UHF 400-520Mhz |
128 groups channels storage |
Shortcut menu operation mode |
VFO & Memory channels scan |
Emergency Alarm |
Time-out Timer (TOT) |
0~9 grades VOX selectable |
PTT & ANI ID |
FM radio and 25 stations storage |
Voice companding |
50 CTCSS/105 DCS |
High/Low TX power selectable |
DTMF function |
Wide/Narrow Band(25kHz/12.5kHz) |
Yes |
VOX function |
Yes |
Busy channel lock-out(BCLO) |
Yes |
Busy lockout function |
Yes |
Scanning function |
Yes |
Monitor function |
Yes |
Time-out Timer (TOT) function |
Yes |
LCD display |
Yes |
Dual display |
Yes |
Battery voltage display function |
Yes |
Channel name display and editing functions |
Yes |
Signal strength indicator |
Yes |
Keypad lock function |
Yes |
Built-in Led torch |
Yes |
FM radio |
Yes |
Wire clone function |
Yes |
Emergency alarm function |
Yes |
Low battery alarm |
Yes |
Power saving function |
Yes |
Tone end of transmission |
Yes |
Chinese and English voice prompt |
Yes |
PC software programmable |
Yes |
Basic Descriptions | |
Rated Voltage |
7.4V DC±10% |
Output power |
5W |
Battery type |
Li-ion battery |
Channel |
128 |
Battery capacity |
1800mAh |
Working temperature |
-20~+50 °C |
Antenna Impedance |
50ohm |
Weight |
200g (Not Antenna) |
Dimension ( L×W×H ) |
110x58x32mm (Not Antenna ) |
Specification | |
Frequency range |
UHF:400-520MHz + VHF:136-174MHz |
Frequency stability |
±2.5ppm |
High/Low TX power selectable |
VHF:5W/1W UHF:4W/1W |
Frequency step |
2.5/5/6.25/10/12.5/25KHz |
Carrier wave tolerance |
5ppm |
Modulation |
16kΦF3E / 11kΦF3E |
Max frequency deviation |
< 5kHz(Wide) < 2.5kHz(Narrow) |
Modulation character |
6 dB per fold frequency patch |
Emission current |
< 1.6A(5W) |
CTCSS / DCS |
0.5±0.1kHz(Wide) 0.3±0.1kHz(Narrow) |
Sensitivity |
< 0.16 µV(12dB SINAD) |
Silent sensitivity |
< 0.2 µV |
Intermediation Distortion |
<10% |
Inter modulation |
60dB |
Adjacent channel selectivity( wide/narrow) |
<-65dB(Wide) <-60dB(Narrow) |

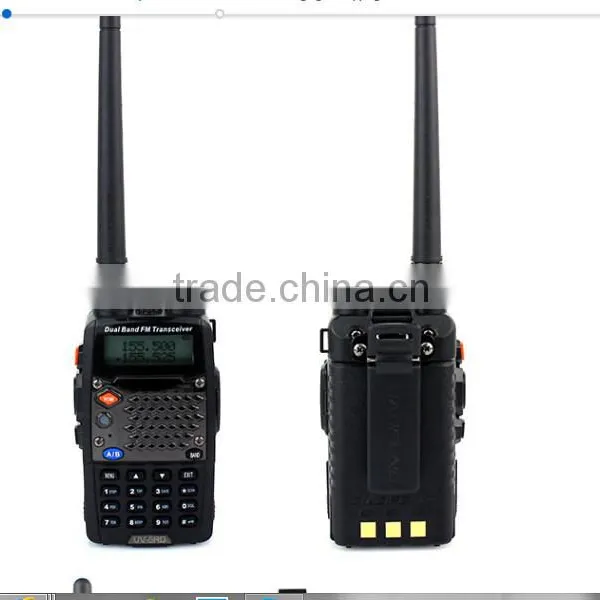

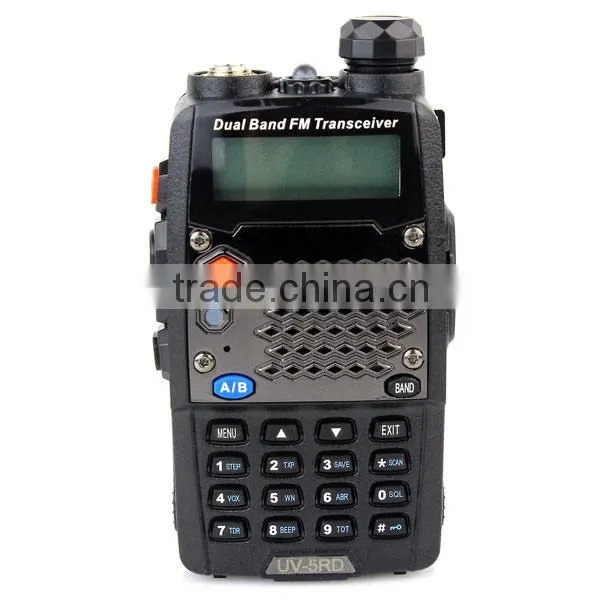

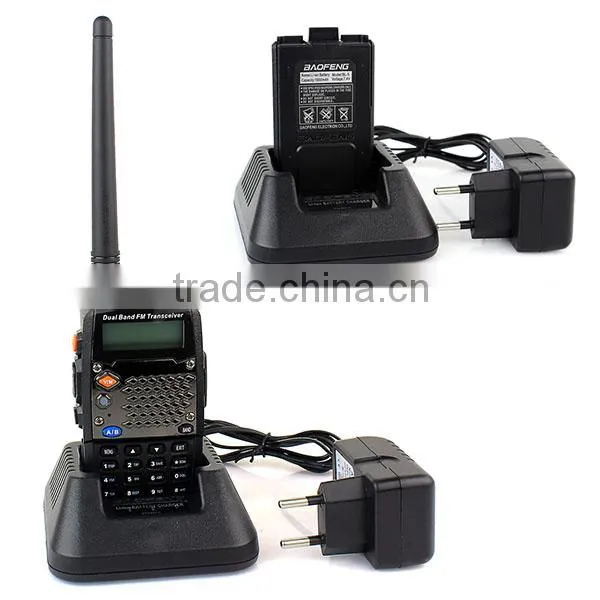

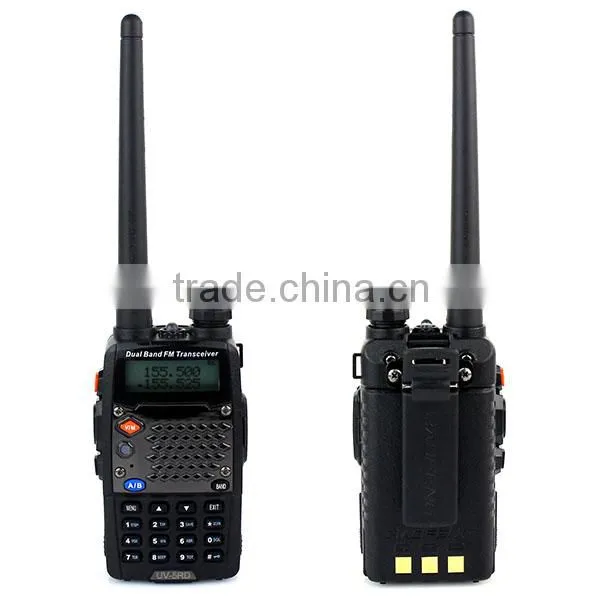

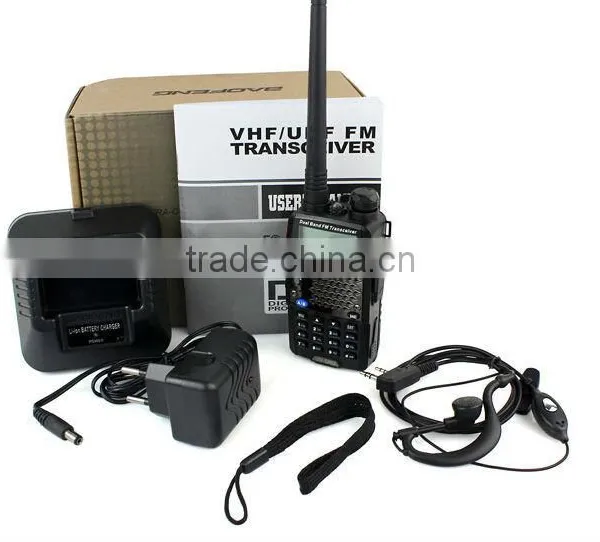

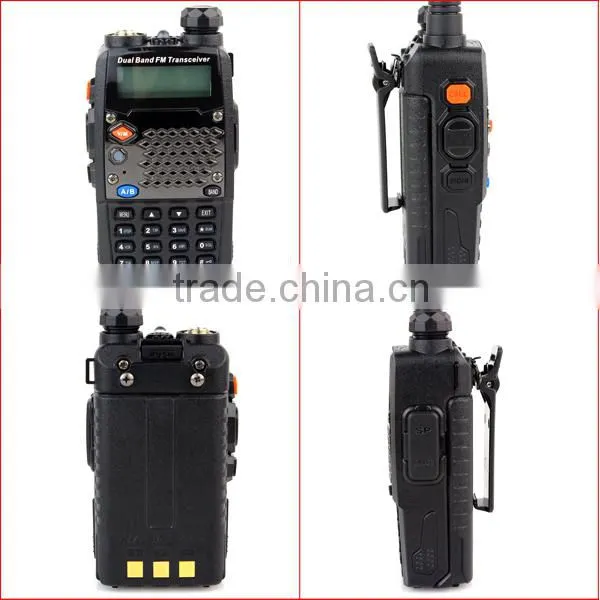

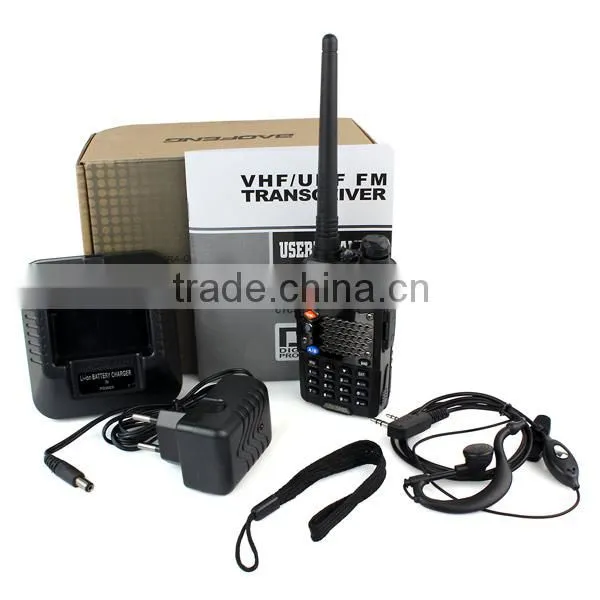

Photos of BAOFENG UV-5RD :
Shipping : EMS /DHL /UPS /Fedex /by Sea/by your forwarder
1 X Portable radio POFUNG UV-5RD
1 X Antenna
1 X Li-ion battery pack
1 X LI-ion charger
1 X Belt clip
1 X Earpiece
1 X Sling
1 X User's manuaL
Note:
1. Using rechargeable walkie-talkie for the first time, please charge for 16 hours
2.Turn off your computer before removing the battery
3. Please do not use hand to pick up the antenna, hold the antenna will affect the effective wireless intercom call range
4. Use the walkie-talkie, you should keep it vertical distance of 5.0 to 7.0 cm, and keep your face
5. Please try to use while driving handsfree speaker and the closing words
6. Keep your intercom televisions, computer monitors and other screen to maintain a distance greater than 10cm, to avoid being magnetized
7. The interphone Do things together with other metal-containing storage
8. Walkie-talkies may interfere with some hearing aids, with your hearing aid manufacturer to discuss alternatives
9. Try to place in the medical walkie-talkie off, so as not to affect the use of medical equipment
10. Do not use in airports and on aircraft. If so, prohibited driving the car to the side of the road and then
11. In potentially explosive areas must remain shut down, unless it is dedicated intercom dangerous areas (for example, Factory Mutual, CAS, or UL certified)
12. To avoid electromagnetic interference / compatibility conflicts, in some cases posted notices require you to turn off the intercom, please observe
Approved: CE/FCC
After Sales Service: 1 Year Warranty
