Help CenterBaofeng BF-777S Two-Way Radio UHF 400-470MHz Walkie Talkie Transceiver Ham Radio
Related Products
-
Handheld Radio 5W 128CH UHF 400-520mhz VHF136-174mhz Baofeng Pofung UV-82 Ham Two Way RadioUS$ 1 - 30MOQ: 10 Sets -
Wholesale Baofeng BF-888S Uhf 400-470mhz Mini Walkie Talkie Two Way RadioUS$ 1 - 16MOQ: 10 Sets
-
2016 NEW Portable Two Way Radio Baofeng UV5RE Handheld RadioUS$ 1 - 30MOQ: 10 Sets
-
Poetable Dual Band BAOFENG UVB6 Two Way Radio FM RadioUS$ 1 - 29MOQ: 10 Sets
-
BAOFENG Two-way Radio Baofeng UV-B5 Dual Band VHF/UHF 136-174/400-470 Walkie TalkieUS$ 1 - 29MOQ: 10 Sets
Item specifics
| Condition: | New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ... Read moreabout the condition | Type: | Portable/Handheld |
| MPN: | Does not apply | Brand: | Baofeng |
| Frequency Band(s): | UHF | Model: | BF-777S |
| Features: | CTCSS DCS, | UPC: | Does not apply |
FUNCTIONS AND FEATURES:
- 50 CTCSS/105 CDCSS
- VOX Function
- Voice Prompt
- PC Programming
- Emergency Alarm
- Intelligent Charging
- Battery Save
- Low Voltage Alert
- Time-out Timer
- Torch Light
Description::
All of items are brand new and high quality | |
Model | BF-777S |
Basic Descriptions | |
Antenna Impedance | 50 ohm |
Working temperature | -30~+60°C |
Rated Voltage | 3.7V DC |
Output power | <5W |
Battery type | Li-ion battery |
Battery capacity | 1500 mAh |
Color | Black |
Dual band or Single band | Single band |
Dual frequency or Single frequency | Single frequency |
Frequency Range | UHF: 400-470MHz |
Memory Channel | 16 |
CTCSS/DCS Function | Yes |
Built-in Led torch | Yes |
Low battery alarm | Yes |
Power saving function | Yes |
Chinese and English voice prompt | Yes |
PC software programmable | Yes
|

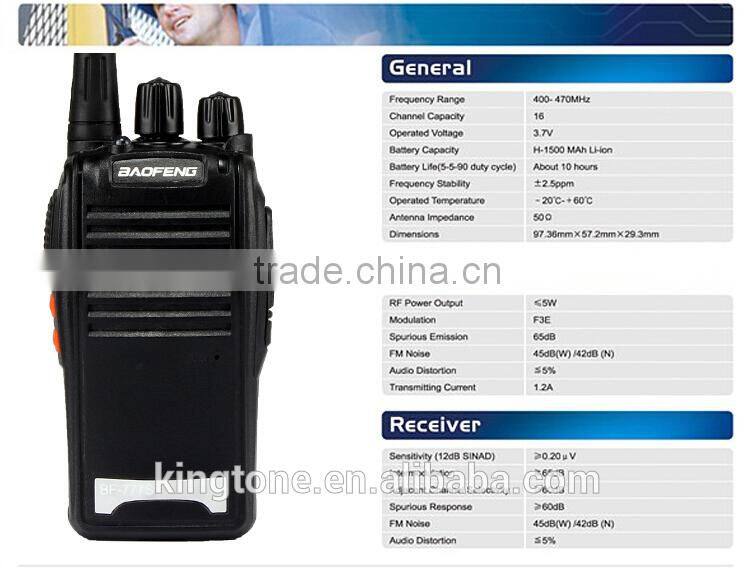

General Specifications | |
Frequency Range | UHF 400-470MHz |
Channel Capacity | 16 |
Channel Spacing | 25KHz |
Operated Voltage | 3.7 V |
Battery | 1500MAh Li-ion |
Battery Life(5-5-90 duty cycle) About 10 hours | |
Frequency Stability | ±2.5ppm |
Operated Temperature | -30°c-+60°c |
Antenna Impedance | 50Ω |
Dimensions (L×W×H) (with battery,without antenna) | 115×60×33 mm |
Weight (with battery/antenna) | 150g |
Transmitter | |
RF Power Output | 3W |
Modulation | F3E |
Spurious Emission | ≤65dB |
FM Noise | ≤-45dB(W) ≤-42dB (N) |
Audio Distortion | ≤5% |
Transmitting Current | ≤1.2A |
Receiver | |
Sensitivity (12dB SINAD) | ≤0.20 uV |
Intermodulation | ≥65dB |
Adjacent Channel Selectivity | ≥65dB |
Spurious Response | ≥60dB |
FM Noise | 45dB/42dB |
Audio Power Output | 1000mW |
Audio Distortion | ≤5% |

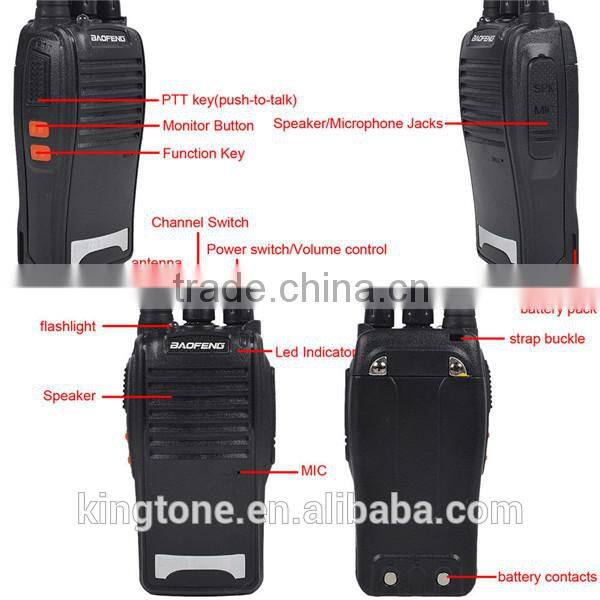

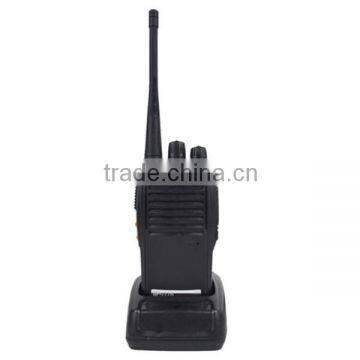

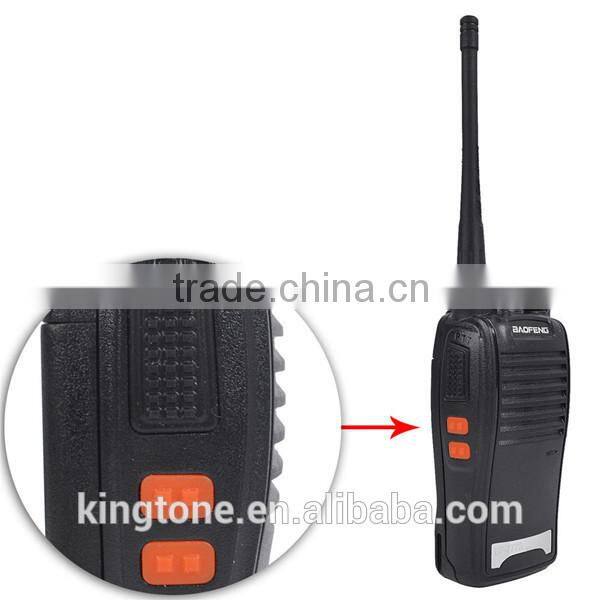

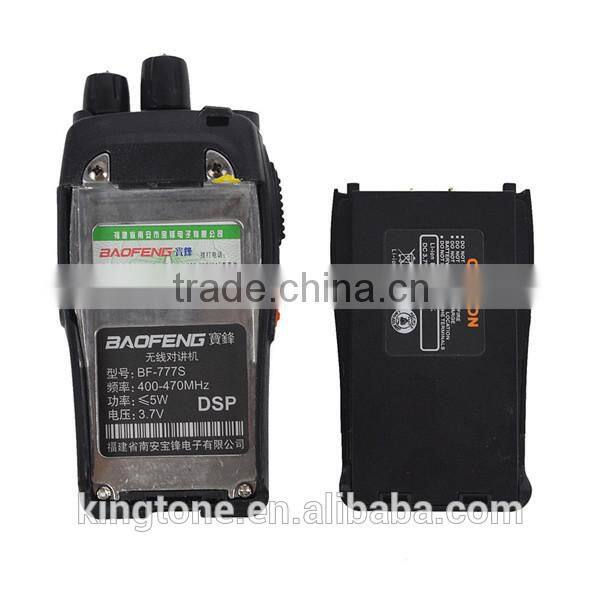

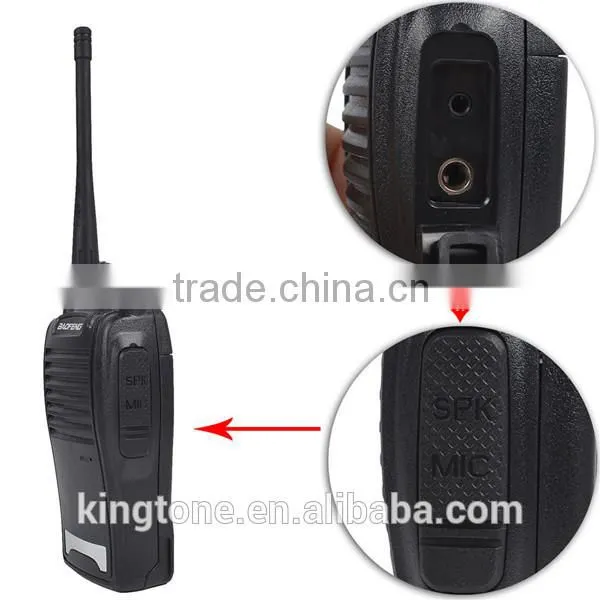

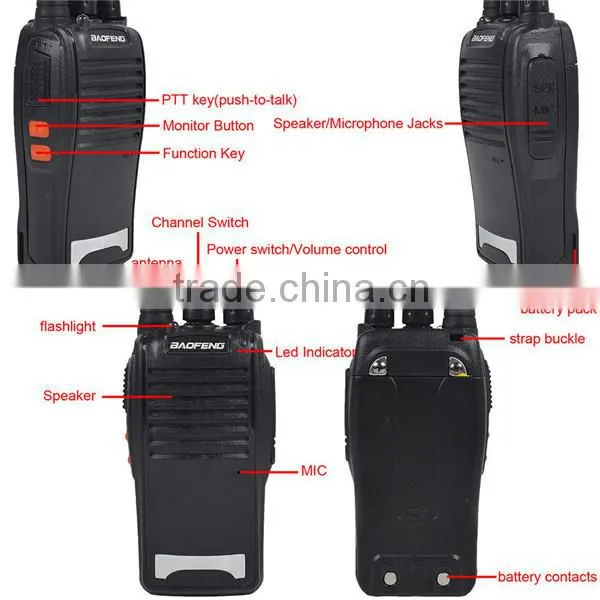

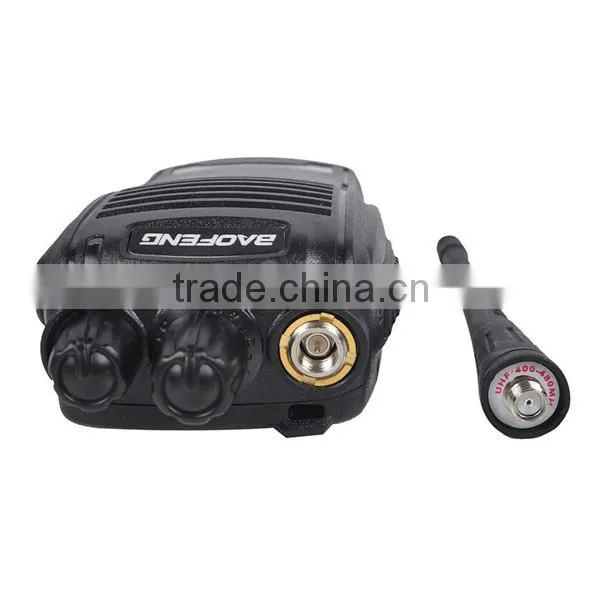

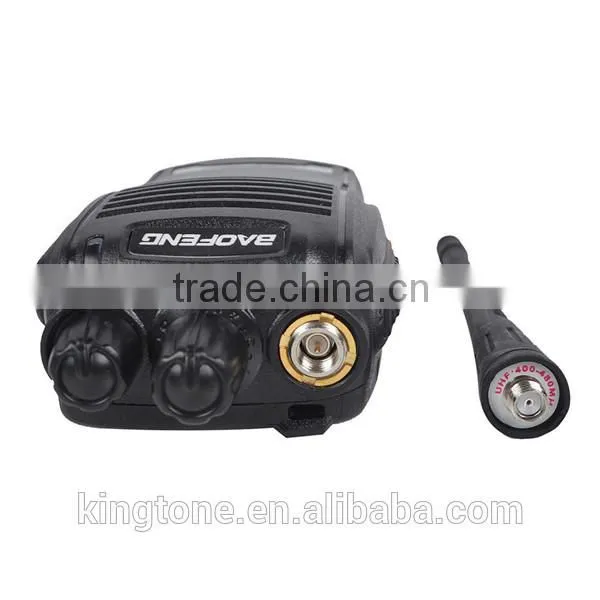

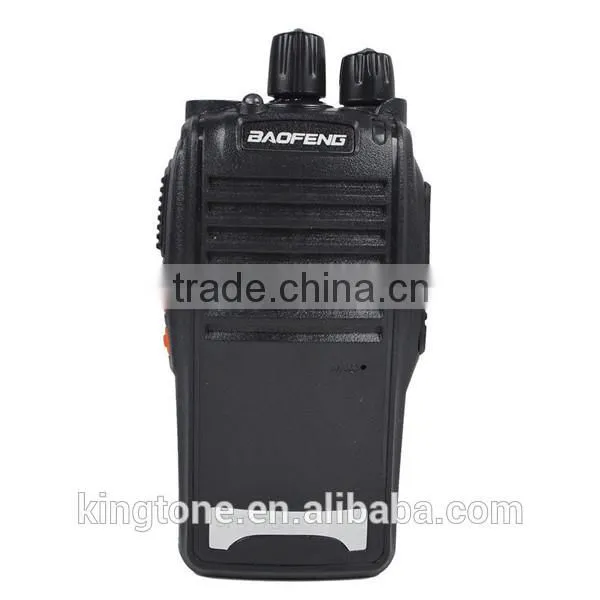

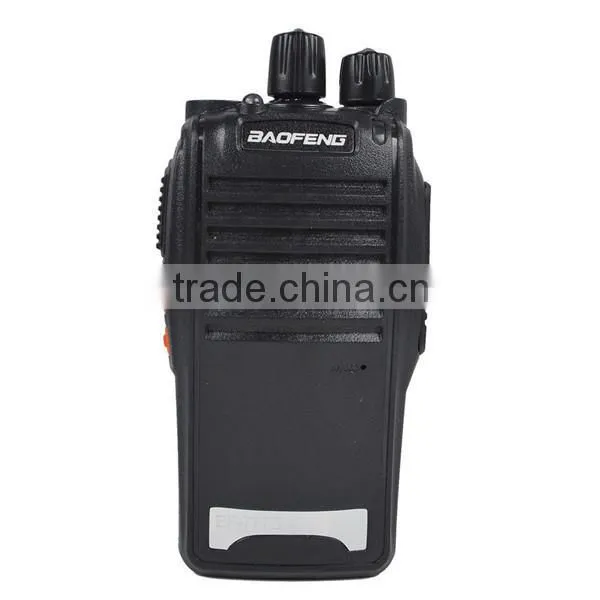

Photos of baofeng bf-777s walkie talkies :

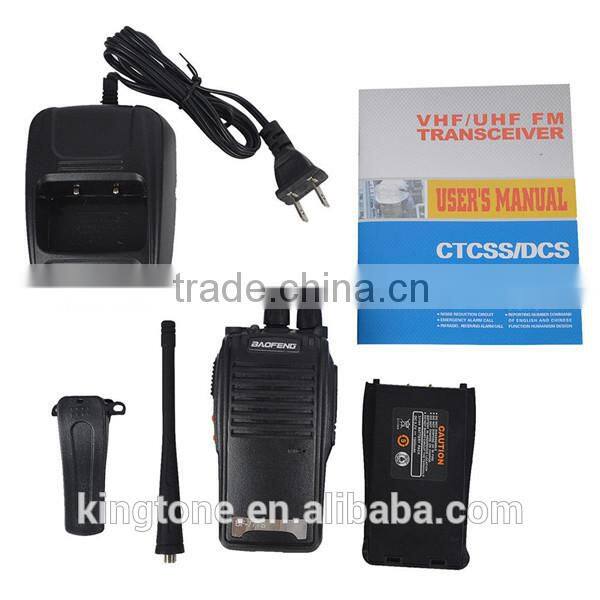

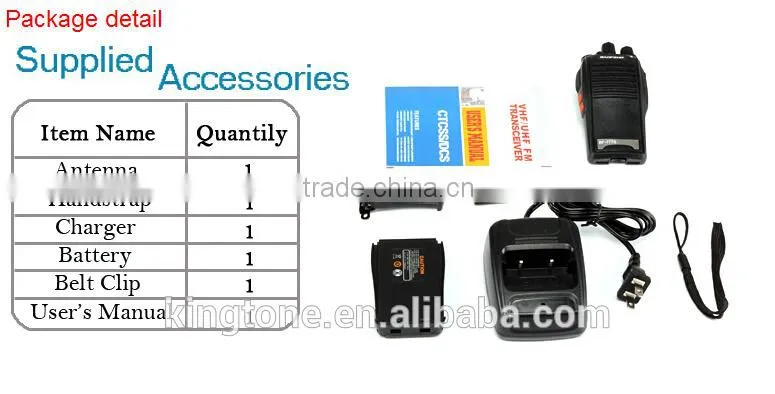

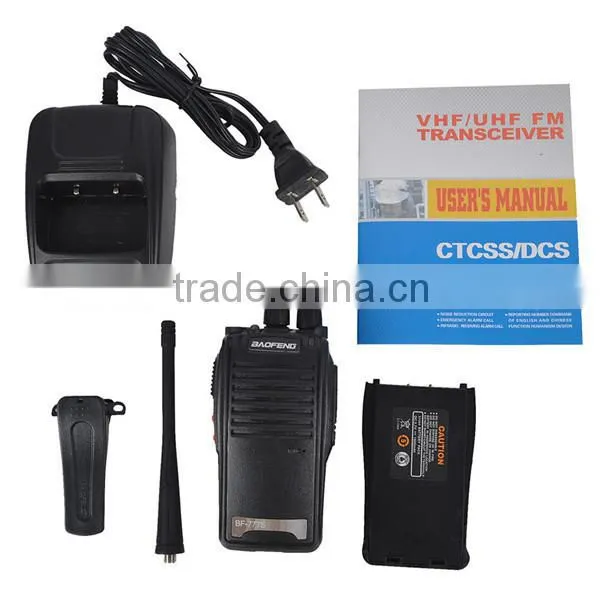

Unit contain:
1 x BAOFENG BF-777S Radio (UHF 400-470Mhz)
1 x 3.7V 1500mah Li-ion Battery
1 x SMA-Female Antenna
1 x Belt Clip
1 x ENG Manual
1 x Desktop Charger (100V /240V )+(Free adaptor for UK or EURO or Australia)
1 x WRIST STRAP
1 x PTT Earpiece for free
l
Note:
1. Using rechargeable walkie-talkie for the first time, please charge for 16 hours
2.Turn off your computer before removing the battery
3. Please do not use hand to pick up the antenna, hold the antenna will affect the effective wireless intercom call range
4. Use the walkie-talkie, you should keep it vertical distance of 5.0 to 7.0 cm, and keep your face
5. Please try to use while driving handsfree speaker and the closing words
6. Keep your intercom televisions, computer monitors and other screen to maintain a distance greater than 10cm, to avoid being magnetized
7. The interphone Do things together with other metal-containing storage
8. Walkie-talkies may interfere with some hearing aids, with your hearing aid manufacturer to discuss alternatives
9. Try to place in the medical walkie-talkie off, so as not to affect the use of medical equipment
10. Do not use in airports and on aircraft. If so, prohibited driving the car to the side of the road and then
11. In potentially explosive areas must remain shut down, unless it is dedicated intercom dangerous areas (for example, Factory Mutual, CAS, or UL certified)
12. To avoid electromagnetic interference / compatibility conflicts, in some cases posted notices require you to turn off the intercom, please observe
Approved: CE/FCC
After Sales Service: 1 Year Warranty
