Two Way Radio BAOFENG UV 5R VHF&UHF 136-174 / 400-520 Mhz Dual Band With 3800 MAh Li-ion Battery Ham Radio

Two Way Radio BAOFENG UV 5R VHF&UHF 136-174 / 400-520 Mhz Dual Band With 3800 MAh Li-ion Battery Ham Radio thumbnail-1
Two Way Radio BAOFENG UV 5R VHF&UHF 136-174 / 400-520 Mhz Dual Band With 3800 MAh Li-ion Battery Ham Radio photo-1
US$ 1 - 49 MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Baofeng
Model Number:
baofeng UV-5R
Contact Supplier Request Quote Chat Now
Quanzhou Kingtone Optics & Electronics Technology Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Baofeng
Model Number baofeng UV-5R
Type Handheld
Dimensions 58x110x32mm
Frequency Range VHF:136-174mhz & UHF:400-480mhz
Storage Channel 128
Talk Range 5-8KM

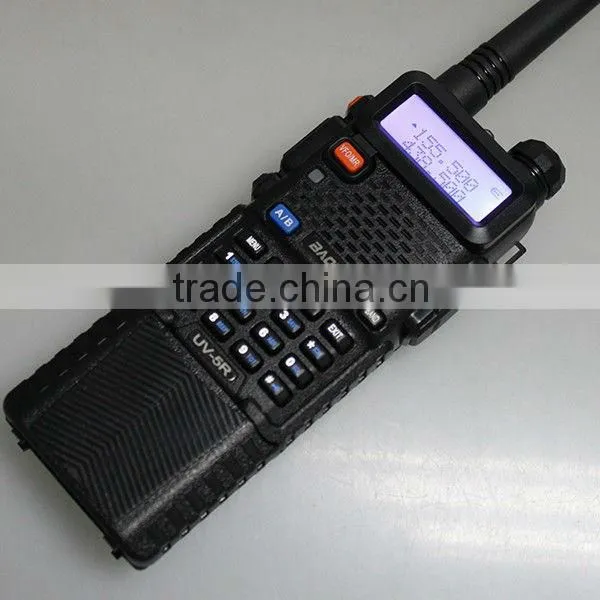

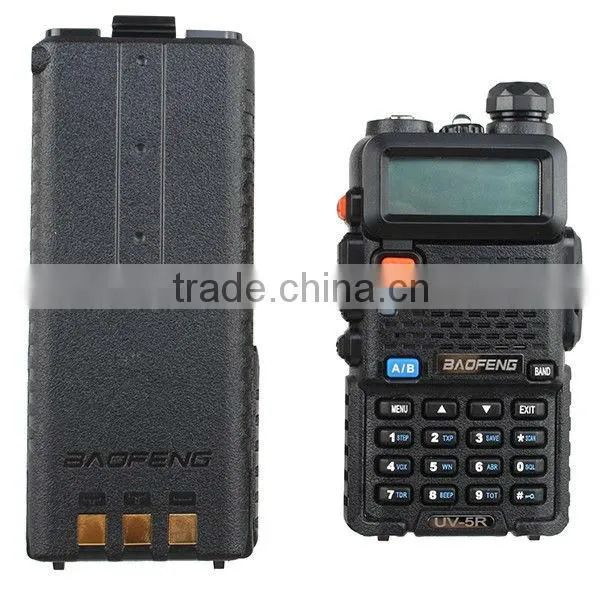

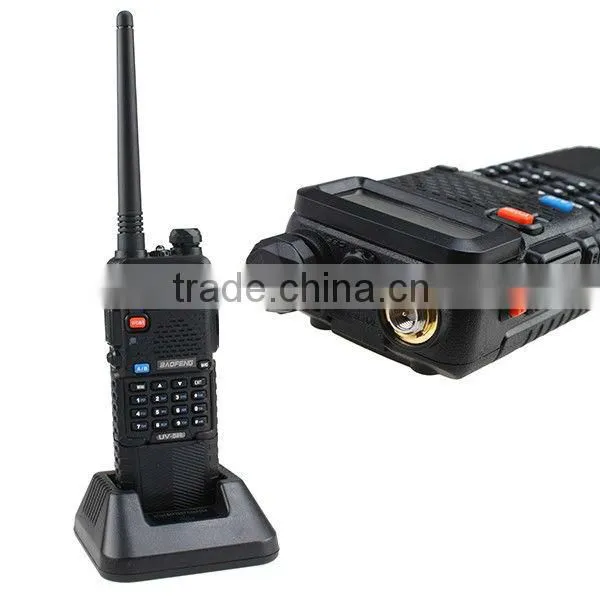

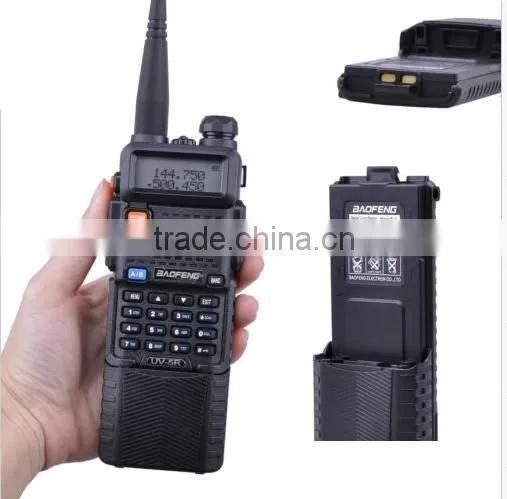

BAOFENG UV-5R Dual Band UHF/VHF Radio 3800mah Battery Upgrade Version
1.128 channel
2. Dual Band Dual Display Dual Standby



BAOFENG UV-5R Dual Band UHF/VHF Radio 3800mah Battery Upgrade Version



VHF/UHF  DUAL-BAND TWO WAY RADIO


1.Frequency Range: 136-174 / 400-480MHz
2.Dual-Band Display, Dual Freq. Display, Dual-Standby
3.Output Power: 4 /1Watts
4.128 Channels50 CTCSS and 104 CDCSS
5.Built-in VOX Function
6.1750Hz Brust Tone
7.FM Radio (65.0MHz-108.0MHz)
8.LED Flashlight
9.Large LCD Display
10.Hight /Low RF Power Switchable
11.25KHz/12.5KHz Switchable
12.Emergency Alert
13.Low Battery Alert
14.Battery Saver
15.Time-out Timer
16.Keypad Lock
17.Monitor Channel
18.Channel Step: 2.5/5/6.25/10/12.5/25KHz
19.ROGER SET




 This is a Dual band , Dual display, Dual standby for the Walkie talkie

 Functions and Features:

-Dual band handheld transceiver with display function menu on the display “LCD”

-DTMF encoded

-Lithium-ion battery with high capacity

-FM Radio (65MHz-108MHz)

-105 DCS  50 CTCSS

-Alarm function

-Function “VOX”

-Dual Watch Dual reception

-Selectable Frequency Step 2.5/5/6.25/10/12.5/25 kHz

-Battery Save

-Timer transmission “TOT”programmable

-PC programming





SPECIFICATION

GENERAL

Frequency Range

136-174 and 400-470MHz

Channel Capacity

128

Channel Spacing

2.5/5/6.25/10/12.5/25KHz

Operated Voltage

7.4V

Standard Battery

3800mAh

Battery Life

10 hours

Frequency Stability

2.5ppm(-20  º C ~+60 º C  )

Operated Temperature

 -30  º C ~+60 º C

Antenna Impedance

50 Ω

Dimensions

58*110*35mm

Weight

 About205g





TRANSMITTER

RF Power Output

4W/1W

Modulation

F3E

Spurious Emission

<-60dB

FM Noise(N/W)

≥-45dB≥-40dB

Audio distortion

Less than10.%

Adjacent Channel Power

≤-65dB≤-60dB

Max Frequency Deviation

 5KHz (N)/ 2.5KHz (W)

Frequency Error

500Hz

Modulation Distortion

0.1KHz (300-3000KHz)

Transmitting Current

About1.4A



 Applications

  • Service industry(Hotel, Restaurant, Supermarket, etc);
  • Security, Property Management;
  •  Police, Firefighters, Education, Public Utilities;
  • Constrution Sites & Transportation;
  • Warehouse, Ports & Logistic Industry;
  • Manufacturing industry

 Two way radio with compact and user-fricndly design

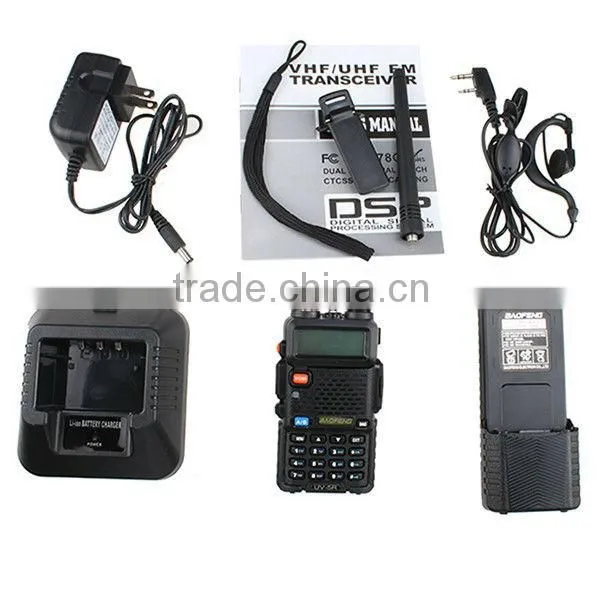

 Package:

1 x UV-5R (VHF136174  UHF 400-480Mhz)  ( Free PTT Earpiece X 1 )

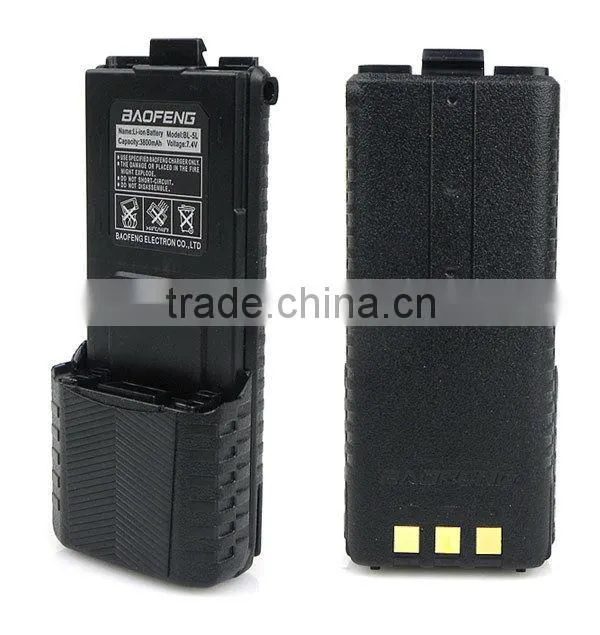

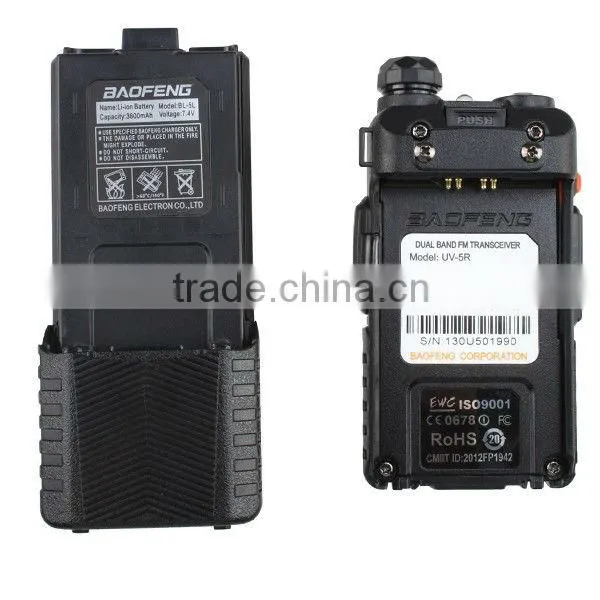

1 x 7.4V 3800mah Li-ion Battery Pack
1 x Dual Band Antenna
1 x Belt Clip
1 x ENG Manual

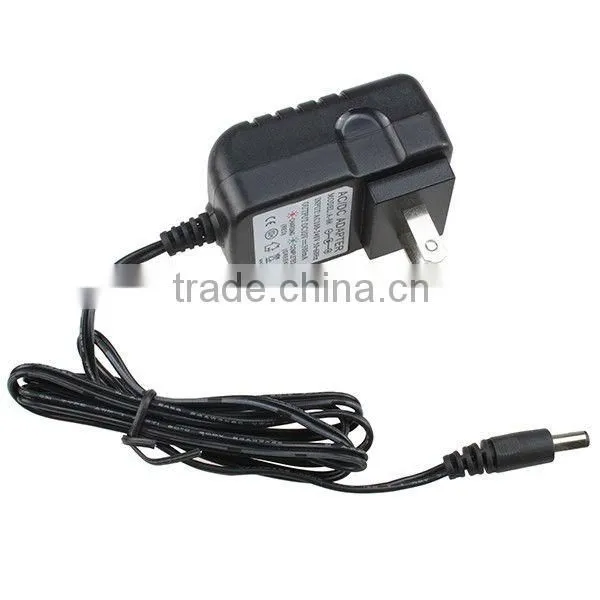

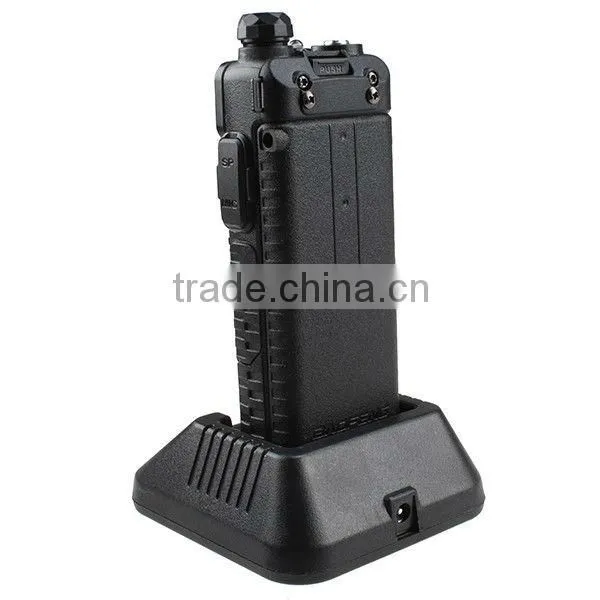

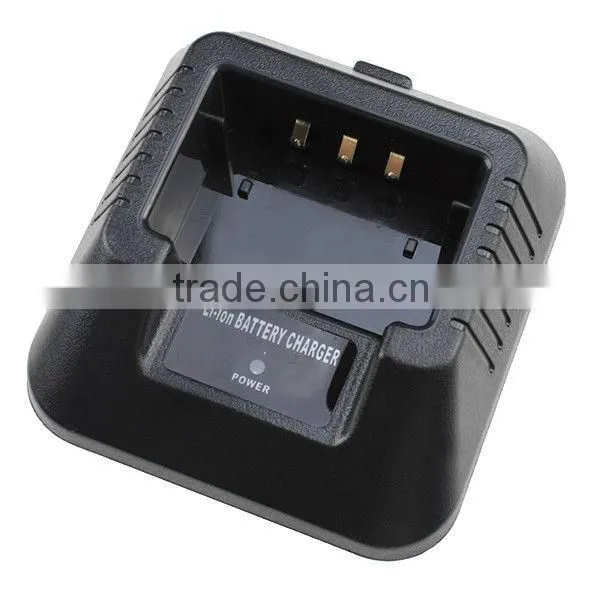

1 x Desktop Charger ( 100V ~ 240V )




 Two Way Radio BAOFENG UV 5R VHF&UHF 136-174 / 400-520 Mhz Dual Band with 3800 mAh li-ion battery Ham RadioTwo Way Radio BAOFENG UV 5R VHF&UHF 136-174 / 400-520 Mhz Dual Band with 3800 mAh li-ion battery Ham RadioTwo Way Radio BAOFENG UV 5R VHF&UHF 136-174 / 400-520 Mhz Dual Band with 3800 mAh li-ion battery Ham RadioTwo Way Radio BAOFENG UV 5R VHF&UHF 136-174 / 400-520 Mhz Dual Band with 3800 mAh li-ion battery Ham RadioTwo Way Radio BAOFENG UV 5R VHF&UHF 136-174 / 400-520 Mhz Dual Band with 3800 mAh li-ion battery Ham Radio



Two Way Radio BAOFENG UV 5R VHF&UHF 136-174 / 400-520 Mhz Dual Band with 3800 mAh li-ion battery Ham Radio

Two Way Radio BAOFENG UV 5R VHF&UHF 136-174 / 400-520 Mhz Dual Band with 3800 mAh li-ion battery Ham RadioTwo Way Radio BAOFENG UV 5R VHF&UHF 136-174 / 400-520 Mhz Dual Band with 3800 mAh li-ion battery Ham RadioTwo Way Radio BAOFENG UV 5R VHF&UHF 136-174 / 400-520 Mhz Dual Band with 3800 mAh li-ion battery Ham Radio

Two Way Radio BAOFENG UV 5R VHF&UHF 136-174 / 400-520 Mhz Dual Band with 3800 mAh li-ion battery Ham Radio
